Find Your Part

LH Cylinder Head of Ferrari Ferrari 575 Superamerica

View All

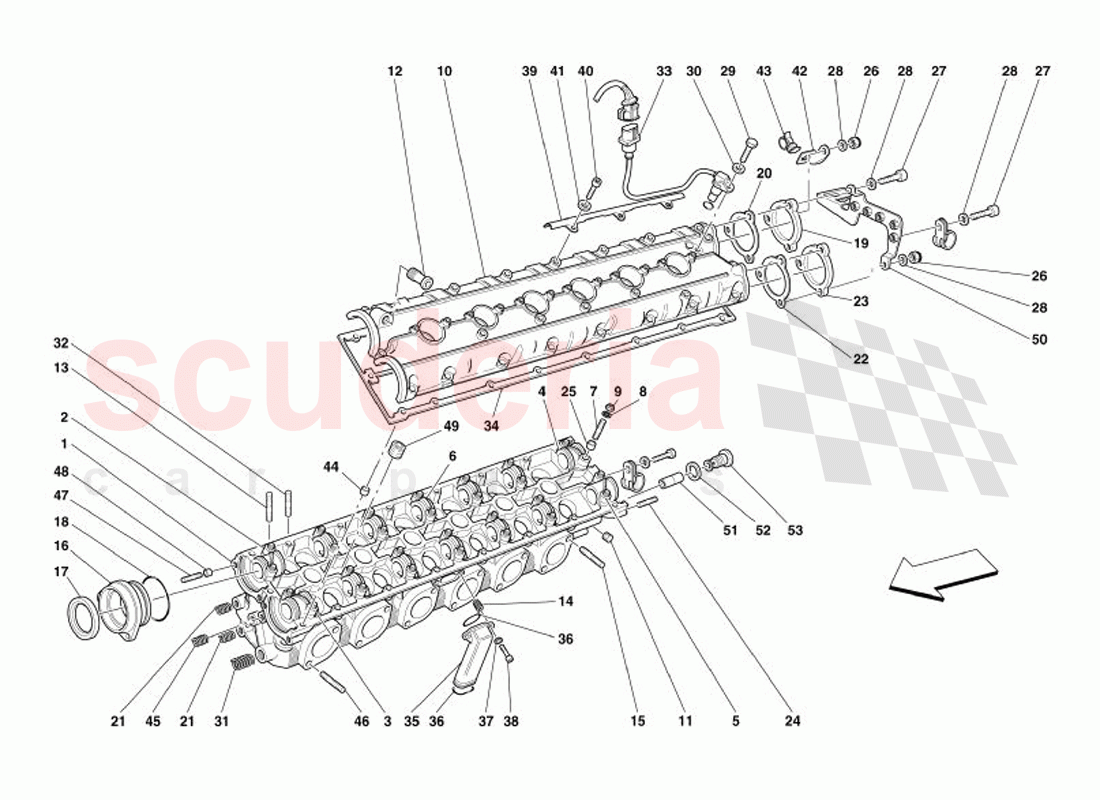

Ferrari 575 Superamerica - LH Cylinder Head

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	203508	LH HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154203	RH FRONT CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154205	LH FRONT CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154206	RH REAR CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154204	LH REAR CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154207	INTERMEDIATE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541424	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198891	LH CYLINDER HEAD COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14326101	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154525	THREADED UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525170	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13516824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182409	FRONT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163987	Camshaft Oil Seal	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	158349	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182126	REAR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182127	COVER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525770	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182406	COVER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182407	REAR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13524670	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500224	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183842	COMPLETE TIMING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182931	Cam Cover Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154647	OIL DRAIN DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142599	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182703	CABLE RETAINER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156834	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178556	L.H. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164565	FIXING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525470	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13517024	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13539424	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182434	CENTRING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185305	R.H. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156862	CHECK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163714	CAP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	221082	COMPLETE LH CYLINDERS HEAD	221082 COMPLETE LH CYLINDERS HEAD	-	1	Enquire
1	203508	LH HEAD	203508 LH HEAD With complete cylinder head	-	1	Enquire
2	154203	RH FRONT CAP	154203 RH FRONT CAP With complete cylinder head	-	1	Enquire
3	154205	LH FRONT CAP	154205 LH FRONT CAP With complete cylinder head	-	1	Enquire
4	154206	RH REAR CAP	154206 RH REAR CAP With complete cylinder head	-	1	Enquire
5	154204	LH REAR CAP	154204 LH REAR CAP With complete cylinder head	-	1	Enquire
6	154207	INTERMEDIATE CAP	154207 INTERMEDIATE CAP With complete cylinder head	-	10	Enquire
7	13541424	STUD BOLT	13541424 STUD BOLT	-	28	Enquire
8	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	28	Enquire
9	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	28	Enquire
10	198891	LH CYLINDER HEAD COVER	198891 LH CYLINDER HEAD COVER With complete cylinder head	-	1	Enquire
11	14326101	THREADED PLUG	14326101 THREADED PLUG	-	1	Enquire
12	154525	THREADED UNION	154525 THREADED UNION	-	1	Enquire
13	13541124	STUD BOLT	13541124 STUD BOLT	-	12	Enquire
14	13525170	THREADED INSERT	13525170 THREADED INSERT	-	2	Enquire
15	13516824	STUD BOLT	13516824 STUD BOLT	-	8	Enquire
16	182409	FRONT COVER	182409 FRONT COVER	-	2	Enquire
17	163987	Camshaft Oil Seal ARRIVING SOON	163987 Camshaft Oil Seal ARRIVING SOON	-	2	Enquire
18	158349	O-Ring	158349 O-Ring	-	2	Enquire
19	182126	REAR COVER	182126 REAR COVER	-	1	Enquire
20	182127	COVER SEAL	182127 COVER SEAL	-	1	Enquire
21	13525770	THREADED INSERT	13525770 THREADED INSERT	-	6	Enquire
22	182406	COVER SEAL	182406 COVER SEAL	-	1	Enquire
23	182407	REAR COVER	182407 REAR COVER	-	1	Enquire
24	13541124	STUD BOLT	13541124 STUD BOLT	-	4	Enquire
25	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	28	Enquire
26	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
27	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	2	Enquire
28	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	6	Enquire
29	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	1	Enquire
30	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
31	13524670	THREADED INSERT	13524670 THREADED INSERT	-	2	Enquire
32	11500224	STUD BOLT	11500224 STUD BOLT	-	12	Enquire
33	183842	COMPLETE TIMING SENSOR	183842 COMPLETE TIMING SENSOR	-	1	Enquire
34	182931	Cam Cover Gasket	182931 Cam Cover Gasket	-	1	Enquire
35	154647	OIL DRAIN DUCT	154647 OIL DRAIN DUCT	-	1	Enquire
36	142599	O-RING	142599 O-RING	-	2	Enquire
37	12604178	Washer	12604178 Washer	-	2	Enquire
38	14304124	SCREW	14304124 SCREW	-	2	Enquire
39	182703	CABLE RETAINER BRACKET	182703 CABLE RETAINER BRACKET	-	1	Enquire
40	156834	Screw	156834 Screw	-	18	Enquire
41	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	18	Enquire
42	178556	L.H. BRACKET	178556 L.H. BRACKET	-	1	Enquire
43	164565	FIXING CLIP	164565 FIXING CLIP	-	1	Enquire
44	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	2	Enquire
45	13525470	THREADED INSERT	13525470 THREADED INSERT	-	2	Enquire
46	13517024	STUD BOLT	13517024 STUD BOLT	-	4	Enquire
47	13539424	STUD BOLT	13539424 STUD BOLT	-	4	Enquire
48	182434	CENTRING DOWEL	182434 CENTRING DOWEL	-	4	Enquire
49	127635	THREADED PLUG	127635 THREADED PLUG	-	4	Enquire
50	185305	R.H. BRACKET	185305 R.H. BRACKET	-	1	Enquire
51	156862	CHECK VALVE	156862 CHECK VALVE	-	1	Enquire
52	10298460	GASKET	10298460 GASKET	-	1	Enquire
53	163714	CAP	163714 CAP	-	1	Enquire
