Front Suspension - Shock Absorber and Brake Disc of Ferrari Ferrari 575 Superamerica

View All

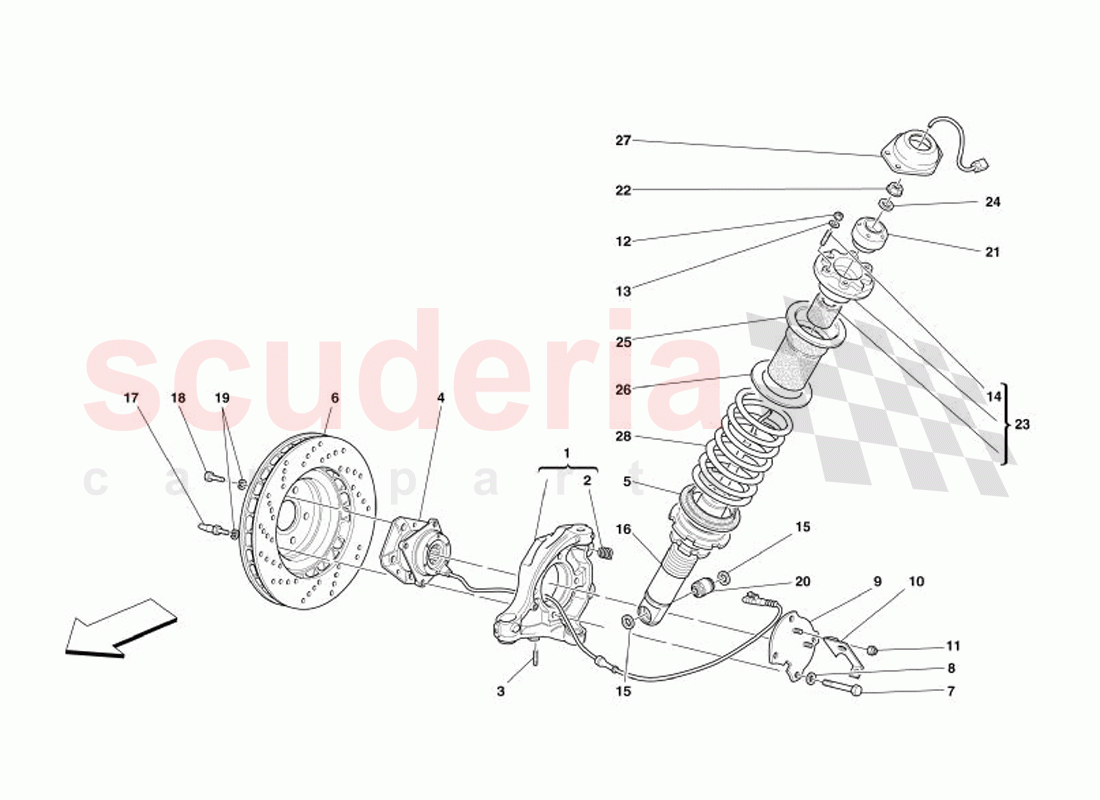

Ferrari 575 Superamerica - Front Suspension - Shock Absorber and Brake Disc

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	184627	COMPLETE L.H. STEERING KNUCKLE	Enquire	To Order
	184626	COMPLETE R.H. STEERING KNUCKLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133771	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11000924	Stud bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197271	BEARING FOR WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152842	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	225454	FRONT BRAKE DISC	Enquire	To Order
	191981	FRONT BRAKE DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16324034	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102901	SPACER WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183314	L.H. COVER	Enquire	To Order
	183313	R.H. COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183765	L.H. SUPPORT	Enquire	To Order
	183764	R.H. SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12354524	Stud Securing Exhaust	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153496	SPACER WASHER mm.2.90 -As	Enquire	To Order
	153495	SPACER WASHER mm. 3.00	Enquire	To Order
	153497	SPACER WASHER mm.3.10 -As	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217735	FRONT SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104370	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

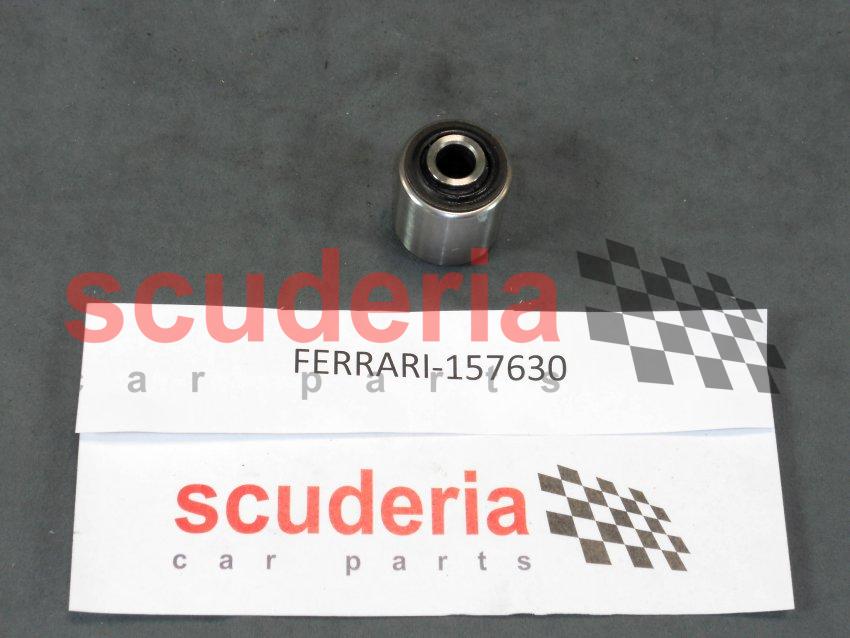

	157630	BALL JOINT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock

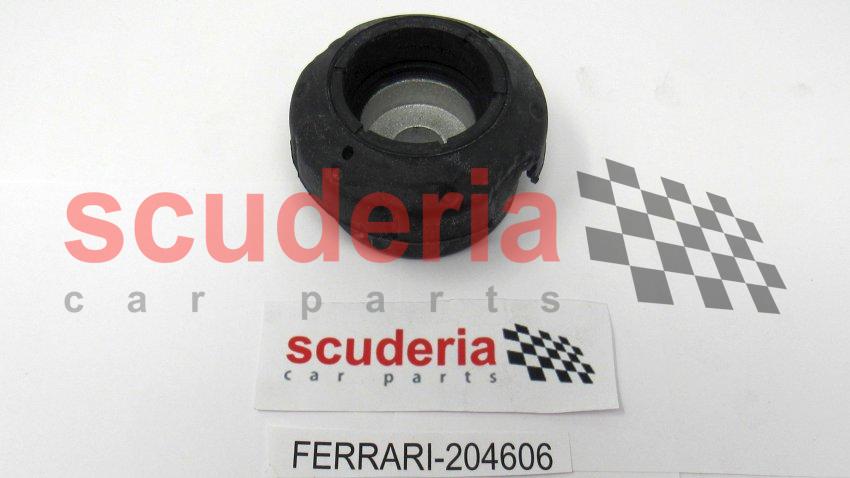

	204606	Bush for Front Upper Shock Absorber	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock

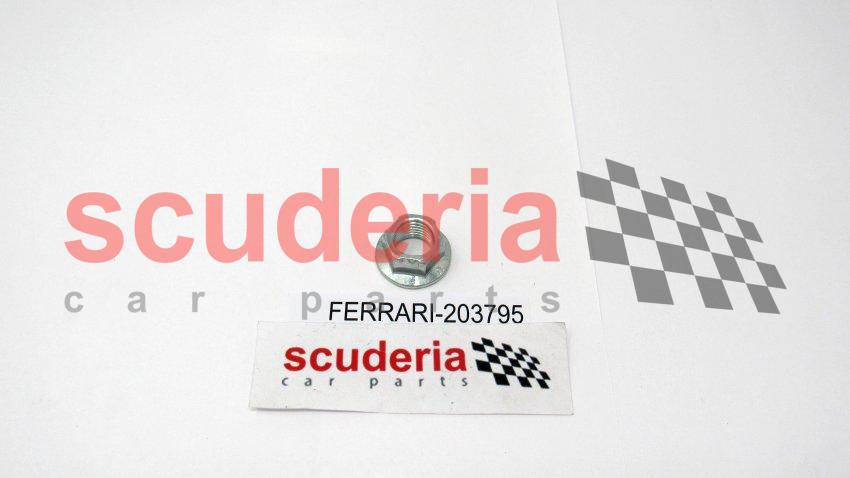

	203795	NUT M14 x 1.5	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	209909	COMPLETE FRONT SHOCK ABSORBER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10520124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127991	COMPLETE SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152655	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204627	PAD FASTENING CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163648	SPRING -Sold in pair-	Enquire	To Order
	169985	SPRING -Sold in pair-	Enquire	To Order
	175886	SPRING -Sold in pair-	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	184627	COMPLETE L.H. STEERING KNUCKLE	184627 COMPLETE L.H. STEERING KNUCKLE	-	1	Enquire
-	184626	COMPLETE R.H. STEERING KNUCKLE	184626 COMPLETE R.H. STEERING KNUCKLE	-	1	Enquire
1	184627	COMPLETE L.H. STEERING KNUCKLE	184627 COMPLETE L.H. STEERING KNUCKLE Not as spare part With complete LH steeringknuckle 184627	-	1	Enquire
1	184626	COMPLETE R.H. STEERING KNUCKLE	184626 COMPLETE R.H. STEERING KNUCKLE Not as spare part With complete RH steeringknuckle 184626	-	1	Enquire
2	133771	THREADED INSERT	133771 THREADED INSERT	-	4	Enquire
3	11000924	Stud bolt	11000924 Stud bolt	-	4	Enquire
4	197271	BEARING FOR WHEEL	197271 BEARING FOR WHEEL	-	2	Enquire
5	152842	WASHER	152842 WASHER	-	2	Enquire
6	225454	FRONT BRAKE DISC	225454 FRONT BRAKE DISC CCM Version	-	2	Enquire
6	191981	FRONT BRAKE DISC	191981 FRONT BRAKE DISC	-	2	Enquire
7	16324034	SCREW	16324034 SCREW	-	8	Enquire
8	102901	SPACER WASHER	102901 SPACER WASHER	-	8	Enquire
9	183314	L.H. COVER	183314 L.H. COVER	-	1	Enquire
9	183313	R.H. COVER	183313 R.H. COVER	-	1	Enquire
10	183765	L.H. SUPPORT	183765 L.H. SUPPORT	-	1	Enquire
10	183764	R.H. SUPPORT	183764 R.H. SUPPORT	-	1	Enquire
11	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
12	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	8	Enquire
13	12638524	WASHER	12638524 WASHER	-	8	Enquire
14	12354524	Stud Securing Exhaust	12354524 Stud Securing Exhaust	-	8	Enquire
15	153496	SPACER WASHER mm.2.90 -As	153496 SPACER WASHER mm.2.90 -As As an alternative of 153495	-	4	Enquire
15	153495	SPACER WASHER mm. 3.00	153495 SPACER WASHER mm. 3.00	-	4	Enquire
15	153497	SPACER WASHER mm.3.10 -As	153497 SPACER WASHER mm.3.10 -As As an alternative of 153495	-	4	Enquire
16	217735	FRONT SHOCK ABSORBER	217735 FRONT SHOCK ABSORBER	-	2	Enquire
17	104370	SCREW	104370 SCREW	-	2	Enquire
18	14306924	SCREW	14306924 SCREW	-	2	Enquire
19	127496	WASHER	127496 WASHER	-	4	Enquire
20	157630	BALL JOINT ARRIVING SOON	157630 BALL JOINT Flanblock ARRIVING SOON	-	2	Enquire
21	204606	Bush for Front Upper Shock Absorber ARRIVING SOON	204606 Bush for Front Upper Shock Absorber ARRIVING SOON	-	2	Enquire
22	203795	NUT M14 x 1.5 ARRIVING SOON	203795 NUT M14 x 1.5 ARRIVING SOON	-	2	Enquire
23	209909	COMPLETE FRONT SHOCK ABSORBER SUPPORT	209909 COMPLETE FRONT SHOCK ABSORBER SUPPORT	-	2	Enquire
24	10520124	WASHER	10520124 WASHER	-	2	Enquire
25	127991	COMPLETE SPACER	127991 COMPLETE SPACER	-	2	Enquire
26	152655	WASHER	152655 WASHER	-	2	Enquire
27	204627	PAD FASTENING CUP	204627 PAD FASTENING CUP	-	2	Enquire
28	163648	SPRING -Sold in pair-	163648 SPRING -Sold in pair- Sold in pair Not for cars with handling Fiorano equipment	-	2	Enquire
28	169985	SPRING -Sold in pair-	169985 SPRING -Sold in pair- Sold in pair As an alternativa Not for cars with handling Fiorano equipment	-	2	Enquire
28	175886	SPRING -Sold in pair-	175886 SPRING -Sold in pair- Sold in pair Valid for cars with handling Fiorano equipment Optional-	-	2	Enquire
28	208678	SPRING - Cosmos	208678 SPRING - Cosmos Sold in pair As an alternativa Valid for cars with handling Fiorano equipment Optional	-	2	Enquire
