Name: Gearbox
Rating: 4.1 (1 reviews)

Gearbox of Ferrari Ferrari 575 Superamerica

View All

Ferrari 575 Superamerica - Gearbox

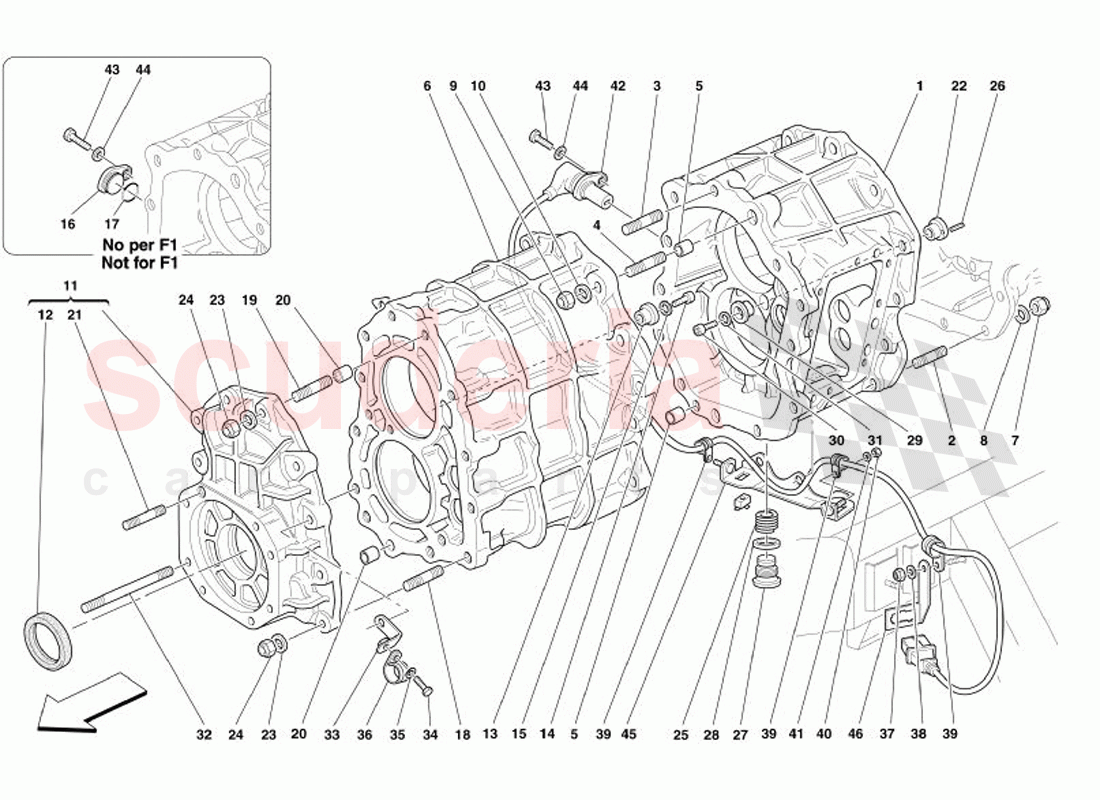

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	210493	3rd SECTION OF GEARBOX HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543524	STUD BOLT	$4.80	To Order

Photo	Part No	Description	Price (each)	Stock
	13543524	STUD BOLT	$4.80	To Order

Photo	Part No	Description	Price (each)	Stock
	13543624	STUD BOLT	$0.49	To Order

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	161979	GEAR BOX 2nd ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	185933	COMPLETE GEAR BOX 1st ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172363	Gasket	$12.03	To Order

Photo	Part No	Description	Price (each)	Stock
	131757	BUSHING	$14.30	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	238108	WASHER	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	185721	CAP	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	254644	O-RING	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	13543424	STUD BOLT	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	13543624	STUD BOLT	$0.49	To Order

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	13546334	STUD BOLT	$1.02	To Order

Photo	Part No	Description	Price (each)	Stock
	157010	BUSHING	$10.84	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	223577	THREADED INSERT M22 X 1.5 X 9MM	$5.96	To Order

Photo	Part No	Description	Price (each)	Stock
	14159470	PIN	$5.36	To Order

Photo	Part No	Description	Price (each)	Stock
	183962	OIL DRAIN PLUG MAGNETIC 22X1.5	$36.44	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	157009	BUSHING	$9.22	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	238108	WASHER	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	13547334	STUD BOLT	$7.15	To Order

Photo	Part No	Description	Price (each)	Stock
	142060	BRACKET	$6.95	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	14447024	WASHER	$0.10	To Order

Photo	Part No	Description	Price (each)	Stock
	10441690	BRACKET WITH SHEATH	$2.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	$5.12	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	168729	ELECTROMAGNETIC SENSOR	$263.79	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW M6 X 16	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11194379	WASHER	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	169464	FRONT BRACKET	$19.24	To Order
	194807	FRONT BRACKET	$52.94	To Order

Photo	Part No	Description	Price (each)	Stock
	203766	CONNECTOR FIXING BRACKET	$4.39	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	210926	COMPLETE GEARBOX ASSEMBLY	210926 COMPLETE GEARBOX ASSEMBLY	$3,885.92	1
1	210493	3rd SECTION OF GEARBOX HOUSING	210493 3rd SECTION OF GEARBOX HOUSING Not as spare part With the complete gearbox 210926	-	1	Enquire
2	13543524	STUD BOLT	13543524 STUD BOLT	$4.80	4
3	13543524	STUD BOLT	13543524 STUD BOLT	$4.80	11
4	13543624	STUD BOLT	13543624 STUD BOLT	$0.49	2
5	102704	ALIGNMENT DOWEL	102704 ALIGNMENT DOWEL	$3.13	2
6	161979	GEAR BOX 2nd ELEMENT	161979 GEAR BOX 2nd ELEMENT Not as spare part With the complete gearbox 210926	-	1	Enquire
7	14040711	NUT	14040711 NUT	$0.41	13
8	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	13
9	14040711	NUT	14040711 NUT	$0.41	13
10	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	13
11	185933	COMPLETE GEAR BOX 1st ELEMENT	185933 COMPLETE GEAR BOX 1st ELEMENT	-	1	Enquire
12	172363	Gasket	172363 Gasket	$12.03 MSRP: ~~24.25~~ (50.4% off)	1
13	131757	BUSHING	131757 BUSHING	$14.30	1
14	248334	SCREW	248334 SCREW	$0.68	1
15	238108	WASHER	238108 WASHER	$0.47 MSRP: ~~0.65~~ (27.7% off)	1
16	185721	CAP	185721 CAP Not for F1	$5.58	1
17	254644	O-RING	254644 O-RING Not for F1	$0.39 MSRP: ~~0.50~~ (22% off)	1
18	13543424	STUD BOLT	13543424 STUD BOLT	$1.94	8
19	13543624	STUD BOLT	13543624 STUD BOLT	$0.49	2
20	102704	ALIGNMENT DOWEL	102704 ALIGNMENT DOWEL	$3.13	2
21	13546334	STUD BOLT	13546334 STUD BOLT	$1.02	3
22	157010	BUSHING	157010 BUSHING	$10.84	1
23	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	10
24	14040711	NUT	14040711 NUT	$0.41	10
25	223577	THREADED INSERT M22 X 1.5 X 9MM	223577 THREADED INSERT M22 X 1.5 X 9MM	$5.96	1
26	14159470	PIN	14159470 PIN	$5.36 MSRP: ~~5.50~~ (2.5% off)	1
27	183962	OIL DRAIN PLUG MAGNETIC 22X1.5	183962 OIL DRAIN PLUG MAGNETIC 22X1.5	$36.44	1
28	10263460	COPPER GASKET D.28-22.3 X 1.5	10263460 COPPER GASKET D.28-22.3 X 1.5	$0.37 MSRP: ~~1.00~~ (63% off)	1
29	157009	BUSHING	157009 BUSHING	$9.22	1
30	248334	SCREW	248334 SCREW	$0.68	1
31	238108	WASHER	238108 WASHER	$0.47 MSRP: ~~0.65~~ (27.7% off)	1
32	13547334	STUD BOLT	13547334 STUD BOLT	$7.15	5
33	142060	BRACKET	142060 BRACKET Valid for F1	$6.95	1
34	10977524	SCREW	10977524 SCREW Valid for F1	$0.15	1
35	14447024	WASHER	14447024 WASHER Valid for F1	$0.10	1
36	10441690	BRACKET WITH SHEATH	10441690 BRACKET WITH SHEATH Valid for F1	$2.06	1
37	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Valid for F1	$1.51	1
38	10519424	WASHER	10519424 WASHER Valid for F1	$0.02 MSRP: ~~0.25~~ (92% off)	1
39	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath Valid for F1	$5.12	3
40	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Valid for F1	$1.51	2
41	10519424	WASHER	10519424 WASHER Valid for F1	$0.02 MSRP: ~~0.25~~ (92% off)	2
42	168729	ELECTROMAGNETIC SENSOR	168729 ELECTROMAGNETIC SENSOR Valid for F1	$263.79 MSRP: ~~288.41~~ (8.5% off)	1
43	10902224	SCREW M6 X 16	10902224 SCREW M6 X 16	$0.06 MSRP: ~~0.45~~ (86.7% off)	1
44	11194379	WASHER	11194379 WASHER	$0.32 MSRP: ~~1.05~~ (69.5% off)	1
45	169464	FRONT BRACKET	169464 FRONT BRACKET Not for F1	$19.24	1
45	194807	FRONT BRACKET	194807 FRONT BRACKET Valid for F1	$52.94	1
46	203766	CONNECTOR FIXING BRACKET	203766 CONNECTOR FIXING BRACKET Valid for F1	$4.39	1
