Name: Console Panel, Arm Rest Stowage
Rating: 4.7 (1 reviews)

View All

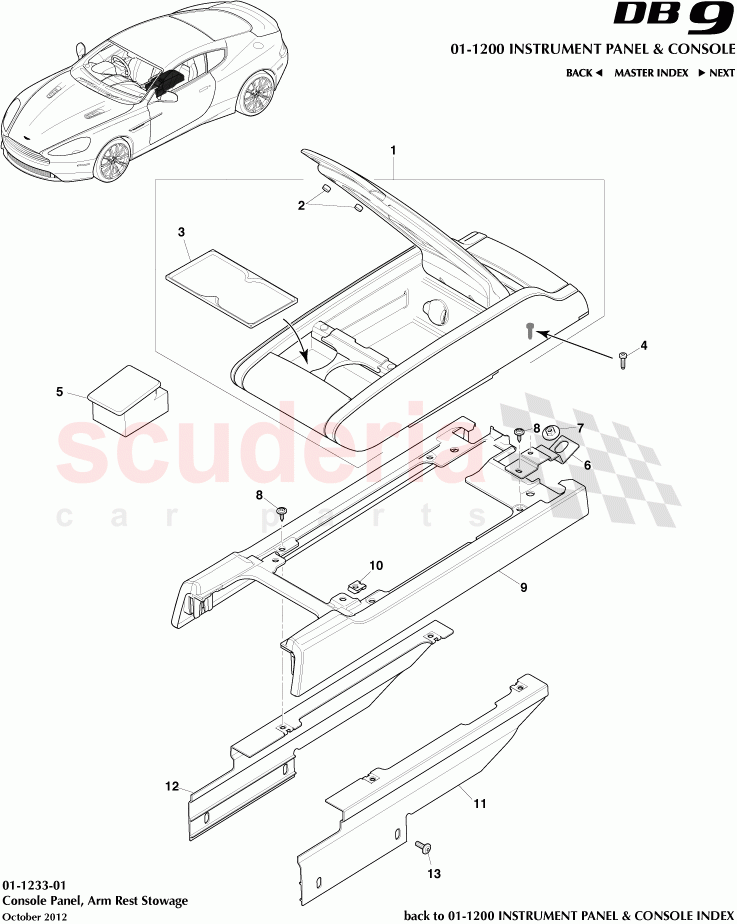

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CG43045C76AGW	FRT CNSL WITH STWGE	$3,164.75	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4323697AA	Magnet and Bumpstop Set	$15.30	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43040K60AA	MAT - PHONE SHELF	$13.44	To Order

Photo	Part No	Description	Price (each)	Stock
	701556PK	Screw M5 x 16 Pan Head (Pack of 10)	$3.64	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43044J16ABW	Elbow Support, Centre Console	$360.20	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4313523AA	Bracket, Stowage Compartment Mounting, LH	$10.04	To Order

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	$2.80	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4367446AAW	Panel Assy, Rear Console	$654.36	To Order

Photo	Part No	Description	Price (each)	Stock
	701448	Spring Nut, U Type, 4.2 x 2.1	$1.25	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43043B05AB	Reinforcement Assy, Console Panel, LH	$70.96	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43043B04AB	Reinforcement Assy, Console Panel, RH	$70.96	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	8G4313522AA	Bracket, Stowage Compartment Mounting, RH	8G4313522AA Bracket, Stowage Compartment Mounting, RH	$10.04	1
-	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) 20 per Pack	$8.88	4
1	CG43045C76AGW	FRT CNSL WITH STWGE	CG43045C76AGW FRT CNSL WITH STWGE	$3,164.75	1
2	8G4323697AA	Magnet and Bumpstop Set	8G4323697AA Magnet and Bumpstop Set	$15.30	2
3	8G43040K60AA	MAT - PHONE SHELF	8G43040K60AA MAT - PHONE SHELF	$13.44	1
4	701556PK	Screw M5 x 16 Pan Head (Pack of 10)	701556PK Screw M5 x 16 Pan Head (Pack of 10) Pack of 10	$3.64	4
5	9G43044J16ABW	Elbow Support, Centre Console	9G43044J16ABW Elbow Support, Centre Console	$360.20	1
6	8G4313523AA	Bracket, Stowage Compartment Mounting, LH	8G4313523AA Bracket, Stowage Compartment Mounting, LH	$10.04	1
7	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	$1.05	2
8	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) 10 per Pack	$2.80	6
9	CG4367446AAW	Panel Assy, Rear Console	CG4367446AAW Panel Assy, Rear Console	$654.36	1
10	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	$1.25	6
11	4G43043B05AB	Reinforcement Assy, Console Panel, LH	4G43043B05AB Reinforcement Assy, Console Panel, LH	$70.96	1
12	4G43043B04AB	Reinforcement Assy, Console Panel, RH	4G43043B04AB Reinforcement Assy, Console Panel, RH	$70.96	2
