Main Floor Trim, Lhd B&O

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Main Floor Trim, LHD B&O

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DD43281B11DCW KIT ASSY SD CRPT LHD Enquire To Order
Photo Part No Description Price (each) Stock
6G33M1H403AA Cover, Floor Pan Enquire To Order
Photo Part No Description Price (each) Stock
6G33666A40AB Finisher, Carpet, Common, RHS Enquire To Order
Photo Part No Description Price (each) Stock
6G33666A41AB Finisher, Carpet, Common, LHS Enquire To Order
Photo Part No Description Price (each) Stock
4G43100A90AA Support Panel, Rear Floor, RH Enquire To Order
Photo Part No Description Price (each) Stock
8G43100A91AC Support Panel, Rear Floor, LH Enquire To Order
Photo Part No Description Price (each) Stock
4G43831237ABW HANDBRAKE GAITER ASSY LHD Enquire To Order
Photo Part No Description Price (each) Stock
4G43M4D4515AA Foam Strip, Handbrake Gaiter Enquire To Order
Photo Part No Description Price (each) Stock
4G433N328BE Bracket, Foot Rest Enquire To Order
Photo Part No Description Price (each) Stock
9G4312020BA LHD FOOTREST TOP PAD ASSY Enquire To Order
Photo Part No Description Price (each) Stock
4G43044J09AC ENERY ABSORBING BLOCK LHD FOOTREST Enquire To Order
Photo Part No Description Price (each) Stock
4G4318449BD ACCELERATOR SCUFF PLATE LHD Enquire To Order
Photo Part No Description Price (each) Stock
4G432B099AD Mounting Bracket, Accelerator Scuff Plate, LH Enquire To Order
Photo Part No Description Price (each) Stock
9D33201A49AA Sheild, Speaker Grille Protection LH Enquire To Order
Photo Part No Description Price (each) Stock
9D33311A76CA Speaker Grille, Footwell, RH, B&O Enquire To Order
Photo Part No Description Price (each) Stock
9D33311A77CA Speaker Grille, Footwell, LH, B&O Enquire To Order
Photo Part No Description Price (each) Stock
6G3368D11AA Screw, M5 x 12, Cap Head Enquire To Order
Photo Part No Description Price (each) Stock
6G3368D11BA Screw, M5 x 20, Cap Head Enquire To Order
Photo Part No Description Price (each) Stock
4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) Enquire To Order
Photo Part No Description Price (each) Stock
6G33E801202AA M5X45MM CSK HEX STAINLESS STEEL BLACK Enquire To Order
Photo Part No Description Price (each) Stock
697564 Retainer, Push On Enquire To Order
Photo Part No Description Price (each) Stock
4G43STC3710AAPK Fir Tree 8mm Fastener (Pack of 20) Enquire To Order
Photo Part No Description Price (each) Stock
4G433L657AA Screw, M5 x 20, Countersunk, Black Enquire To Order
Photo Part No Description Price (each) Stock
703026 Screw, M5 x 16, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
703725 SCREW-M4x10 FLAT CSK SOCKET-STAINLESS STL Enquire To Order
View All

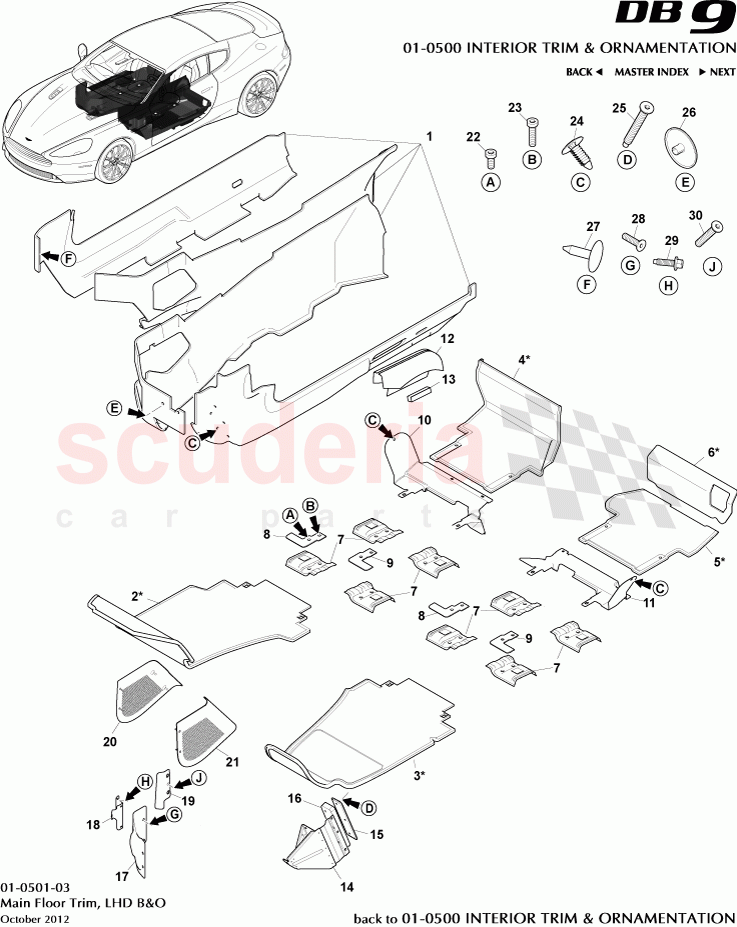

Main Floor Trim, LHD B&O of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CD3312020CA
Cover Plate, Foot Rest
Black 		- 1 Enquire
- 6G33100N00AA
Adhesive Tape, Double Sided 		- A/R Enquire
1 DD43281B11DCW
KIT ASSY SD CRPT LHD 		- 1 Enquire
2* 4G43130A08ADW
Carpet Assembly, Front Floor RH 		- 1 Enquire
3* 4G43130A09AEW
Carpet Assembly, Front Floor LH 		- 1 Enquire
4* 4G43130A36ACW
Carpet Assembly, Rear Floor RH 		- 1 Enquire
5* 8G43130A37ACW
Carpet Assembly, Rear Floor LH 		- 1 Enquire
6* 8G4310K973ABW
Carpet Heelboard Assembly, Rear LH 		- 1 Enquire
7 6G33M1H403AA
Cover, Floor Pan 		- 8 Enquire
8 6G33666A40AB
Finisher, Carpet, Common, RHS 		- 4 Enquire
9 6G33666A41AB
Finisher, Carpet, Common, LHS 		- 4 Enquire
10 4G43100A90AA
Support Panel, Rear Floor, RH 		- 1 Enquire
11 8G43100A91AC
Support Panel, Rear Floor, LH 		- 1 Enquire
12 4G43831237ABW
HANDBRAKE GAITER ASSY LHD 		- 1 Enquire
13 4G43M4D4515AA
Foam Strip, Handbrake Gaiter 		- 1 Enquire
14 4G433N328BE
Bracket, Foot Rest 		- 1 Enquire
15 9G4312020BA
LHD FOOTREST TOP PAD ASSY
Silver 		- 1 Enquire
16 4G43044J09AC
ENERY ABSORBING BLOCK LHD FOOTREST 		- 1 Enquire
17 4G4318449BD
ACCELERATOR SCUFF PLATE LHD 		- 1 Enquire
18 4G432B099AD
Mounting Bracket, Accelerator Scuff Plate, LH 		- 1 Enquire
19 9D33201A49AA
Sheild, Speaker Grille Protection LH 		- 1 Enquire
20 9D33311A76CA
Speaker Grille, Footwell, RH, B&O 		- 1 Enquire
21 9D33311A77CA
Speaker Grille, Footwell, LH, B&O 		- 1 Enquire
22 6G3368D11AA
Screw, M5 x 12, Cap Head 		- 4 Enquire
23 6G3368D11BA
Screw, M5 x 20, Cap Head 		- 4 Enquire
24 4G43MXC1800AAPK
Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)
20 per pack 		- 4 Enquire
25 6G33E801202AA
M5X45MM CSK HEX STAINLESS STEEL BLACK 		- 3 Enquire
26 697564
Retainer, Push On 		- 3 Enquire
27 4G43STC3710AAPK
Fir Tree 8mm Fastener (Pack of 20)
20 per pack 		- 1 Enquire
28 4G433L657AA
Screw, M5 x 20, Countersunk, Black 		- 4 Enquire
29 703026
Screw, M5 x 16, Hex Flange Head 		- 3 Enquire
30 703725
SCREW-M4x10 FLAT CSK SOCKET-STAINLESS STL 		- 1 Enquire
