Parcel Shelf Trim Panel, Coupe 2+0

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Parcel Shelf Trim Panel, COUPE 2+0

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D3346668AEW Panel Assy, Package Tray Enquire To Order
Photo Part No Description Price (each) Stock
4G4313B477AC Bezel, Centre High Mounted Stop Lamp (CHMSL) Enquire To Order
Photo Part No Description Price (each) Stock
697477 SCREW No6 x 9.5 FLANGED AB S.T Enquire To Order
Photo Part No Description Price (each) Stock
8D3313N408AC Lamp Assy, Centre High Mounted Stop Lamp (CHMSL), Clear Enquire To Order
Photo Part No Description Price (each) Stock
703174 Bolt, M4, Pan Head Enquire To Order
Photo Part No Description Price (each) Stock
8D33313A66AC Bracket, Package Tray, RH Enquire To Order
Photo Part No Description Price (each) Stock
8D33313A67AC Bracket, Package Tray, LH Enquire To Order
Photo Part No Description Price (each) Stock
703026 Screw, M5 x 16, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
6G3346058AA Screw, M5 x 10 Pan Head Flange Torx Enquire To Order
Photo Part No Description Price (each) Stock
8D33313A68AA Package Tray Bracket, RH Enquire To Order
Photo Part No Description Price (each) Stock
8D33313A69AA Package Tray Bracket, LH Enquire To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Enquire To Order
Photo Part No Description Price (each) Stock
703165 NUT M5 HEX FLG PLAS CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
697528PK Washer-M5 Large OD Pack of 20 Enquire To Order
View All

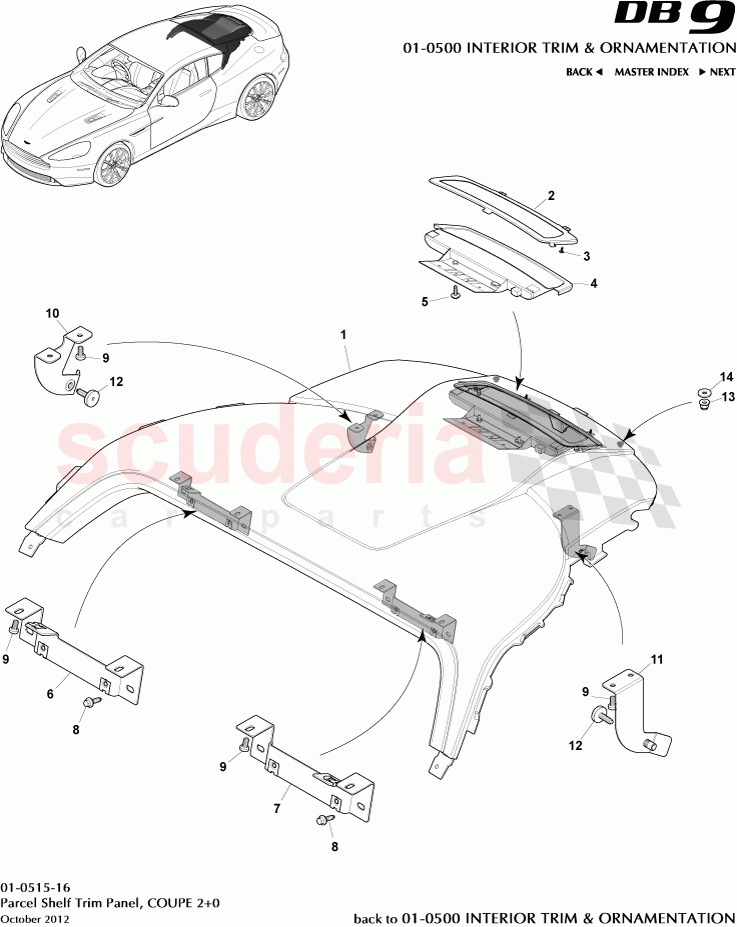

Parcel Shelf Trim Panel, COUPE 2+0 of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8D3346668AEW
Panel Assy, Package Tray 		- 1 Enquire
2 4G4313B477AC
Bezel, Centre High Mounted Stop Lamp (CHMSL) 		- 1 Enquire
3 697477
SCREW No6 x 9.5 FLANGED AB S.T 		- 2 Enquire
4 8D3313N408AC
Lamp Assy, Centre High Mounted Stop Lamp (CHMSL), Clear 		- 1 Enquire
5 703174
Bolt, M4, Pan Head 		- 2 Enquire
6 8D33313A66AC
Bracket, Package Tray, RH 		- 1 Enquire
7 8D33313A67AC
Bracket, Package Tray, LH 		- 1 Enquire
8 703026
Screw, M5 x 16, Hex Flange Head 		- 4 Enquire
9 6G3346058AA
Screw, M5 x 10 Pan Head Flange Torx 		- 8 Enquire
10 8D33313A68AA
Package Tray Bracket, RH 		- 1 Enquire
11 8D33313A69AA
Package Tray Bracket, LH 		- 1 Enquire
12 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
20 Per Pack 		- 2 Enquire
13 703165
NUT M5 HEX FLG PLAS CHROME FREE 		- 2 Enquire
14 697528PK
Washer-M5 Large OD Pack of 20 		- 2 Enquire
