Front Heated Seat Assembly of Aston Martin Aston Martin DB9 (2013-2016)

View All

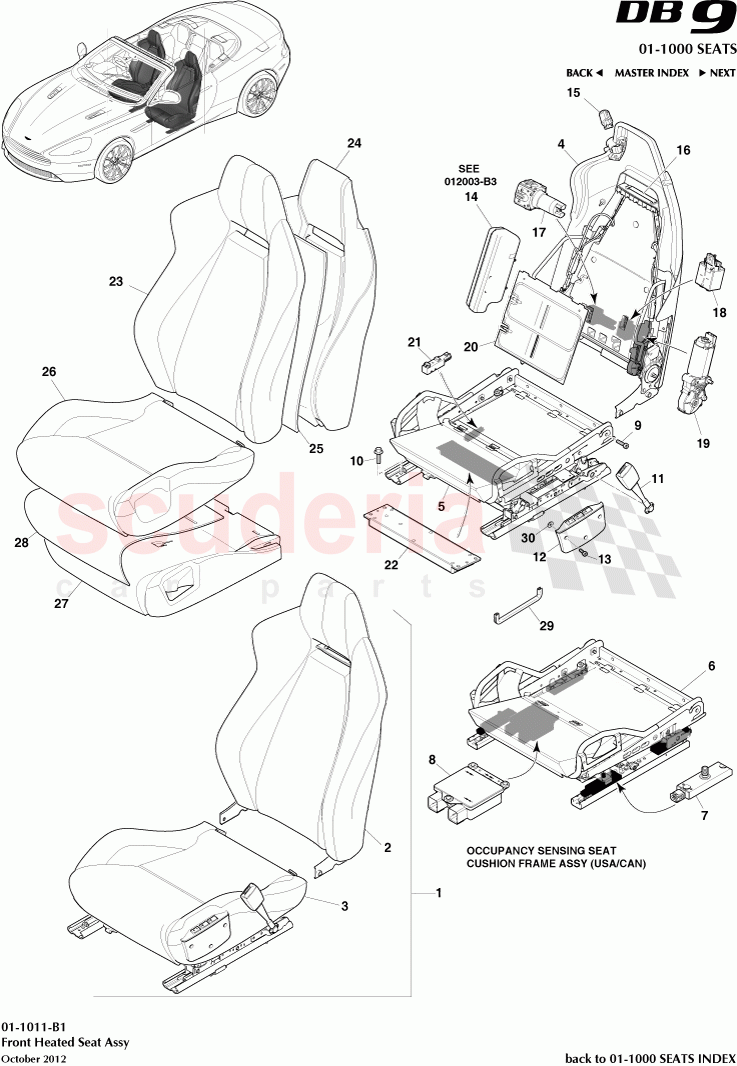

Aston Martin DB9 (2013-2016) - Front Heated Seat Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CG4360008ADW	Seat Assembly, Front Complete, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4360136ACW	Squab Assembly, Front Seat Trimmed, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4360050ABW	Cushion Assembly, Front Seat Trimmed, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4364800AC	Squab Frame, Front Seat, RH, Memory	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG43L60344AA	Cushion Frame Assembly, Front Seat, Height Adjusting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43L60344CB	Cushion Frame, Front Seat, Non Height Adjusting, OCS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43625B02BA	Sensor Passenger Seat Weight	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43625B00CC	Module, Passenger Seat Weight	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4361538AB	M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	706423	SCREW-M8 x 25 HF PI	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43613K22BD	Buckle Assembly, Front Seatbelt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4314E693BA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43N014740AA	Screw, M6 x 16, Socket Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437410690	Airbag, Side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD33062A00BB	SEAT TILT SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43605W00ACW	Strap, Squab Release, Manual Override	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G3365532AA	Pump, Lumbar Support Air	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G3365524AA	Valve, Lumbar Support Air	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG43603B13AA	Bladder, Lumbar Support Air	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4314B426AB	Sensor, seat track position	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	92059	SEAT ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4364572AAW	Cover Assembly, Front Seat Squab, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG434D9514AA	Foam, Squab, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4314D696AB	Heating Element, Squab	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4362900AAW	Cover Assembly, Front Seat Cushion, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G439515AA	FRT ST CUSH FOAM RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4314D698AC	Element, Seat Base Heater	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DAC402710	Edge Protection, Switch Harness, 150mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CG4360009ADW	Seat Assembly, Front Complete, LH	CG4360009ADW Seat Assembly, Front Complete, LH	-	1	Enquire
-	CG4360137ACW	Squab Assembly, Front Seat Trimmed, LH	CG4360137ACW Squab Assembly, Front Seat Trimmed, LH	-	1	Enquire
-	CG4360051ABW	Cushion Assembly, Front Seat Trimmed, LH	CG4360051ABW Cushion Assembly, Front Seat Trimmed, LH	-	1	Enquire
-	CG4364802AC	Squab Frame, Front Seat, LH, Memory	CG4364802AC Squab Frame, Front Seat, LH, Memory	-	1	Enquire
-	BG43L60344AA	Cushion Frame Assembly, Front Seat, Height Adjusting	BG43L60344AA Cushion Frame Assembly, Front Seat, Height Adjusting USA/Can	-	1	Enquire
-	7G4314E693AA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH	7G4314E693AA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH	-	1	Enquire
-	4G437410689	Airbag, Side, LH	4G437410689 Airbag, Side, LH	-	1	Enquire
-	CG4364573AAW	Cover Assembly, Front Seat Squab, LH	CG4364573AAW Cover Assembly, Front Seat Squab, LH	-	1	Enquire
-	AG434D9513AA	Foam, Squab, LH	AG434D9513AA Foam, Squab, LH	-	1	Enquire
-	CG4362901AAW	Cover Assembly, Front Seat Cushion, LH	CG4362901AAW Cover Assembly, Front Seat Cushion, LH	-	1	Enquire
-	8G439516AA	FRT ST CUSH FOAM LH	8G439516AA FRT ST CUSH FOAM LH	-	1	Enquire
1	CG4360008ADW	Seat Assembly, Front Complete, RH	CG4360008ADW Seat Assembly, Front Complete, RH	-	1	Enquire
2	CG4360136ACW	Squab Assembly, Front Seat Trimmed, RH	CG4360136ACW Squab Assembly, Front Seat Trimmed, RH	-	1	Enquire
3	CG4360050ABW	Cushion Assembly, Front Seat Trimmed, RH	CG4360050ABW Cushion Assembly, Front Seat Trimmed, RH	-	1	Enquire
4	CG4364800AC	Squab Frame, Front Seat, RH, Memory	CG4364800AC Squab Frame, Front Seat, RH, Memory	-	1	Enquire
5	BG43L60344AA	Cushion Frame Assembly, Front Seat, Height Adjusting	BG43L60344AA Cushion Frame Assembly, Front Seat, Height Adjusting ROW	-	2	Enquire
6	7G43L60344CB	Cushion Frame, Front Seat, Non Height Adjusting, OCS	7G43L60344CB Cushion Frame, Front Seat, Non Height Adjusting, OCS USA/Can	-	1	Enquire
7	7G43625B02BA	Sensor Passenger Seat Weight	7G43625B02BA Sensor Passenger Seat Weight USA/Can	-	1	Enquire
8	7G43625B00CC	Module, Passenger Seat Weight	7G43625B00CC Module, Passenger Seat Weight USA/Can	-	1	Enquire
9	4G4361538AB	M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT	4G4361538AB M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT	-	4	Enquire
10	706423	SCREW-M8 x 25 HF PI	706423 SCREW-M8 x 25 HF PI	-	8	Enquire
11	4G43613K22BD	Buckle Assembly, Front Seatbelt	4G43613K22BD Buckle Assembly, Front Seatbelt	-	8	Enquire
12	7G4314E693BA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH	7G4314E693BA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH	-	2	Enquire
13	7G43N014740AA	Screw, M6 x 16, Socket Head	7G43N014740AA Screw, M6 x 16, Socket Head	-	6	Enquire
14	4G437410690	Airbag, Side, RH	4G437410690 Airbag, Side, RH	-	1	Enquire
15	AD33062A00BB	SEAT TILT SWITCH	AD33062A00BB SEAT TILT SWITCH	-	1	Enquire
16	7G43605W00ACW	Strap, Squab Release, Manual Override	7G43605W00ACW Strap, Squab Release, Manual Override	-	2	Enquire
17	8G3365532AA	Pump, Lumbar Support Air	8G3365532AA Pump, Lumbar Support Air	-	1	Enquire
18	8G3365524AA	Valve, Lumbar Support Air	8G3365524AA Valve, Lumbar Support Air	-	1	Enquire
20	AG43603B13AA	Bladder, Lumbar Support Air	AG43603B13AA Bladder, Lumbar Support Air	-	1	Enquire
21	7G4314B426AB	Sensor, seat track position	7G4314B426AB Sensor, seat track position	-	1	Enquire
22	92059	SEAT ECU	92059 SEAT ECU	-	2	Enquire
23	CG4364572AAW	Cover Assembly, Front Seat Squab, RH	CG4364572AAW Cover Assembly, Front Seat Squab, RH	-	1	Enquire
24	AG434D9514AA	Foam, Squab, RH	AG434D9514AA Foam, Squab, RH	-	1	Enquire
25	7G4314D696AB	Heating Element, Squab	7G4314D696AB Heating Element, Squab	-	2	Enquire
26	CG4362900AAW	Cover Assembly, Front Seat Cushion, RH	CG4362900AAW Cover Assembly, Front Seat Cushion, RH	-	1	Enquire
27	8G439515AA	FRT ST CUSH FOAM RH	8G439515AA FRT ST CUSH FOAM RH	-	1	Enquire
28	7G4314D698AC	Element, Seat Base Heater	7G4314D698AC Element, Seat Base Heater	-	2	Enquire
29	DAC402710	Edge Protection, Switch Harness, 150mm	DAC402710 Edge Protection, Switch Harness, 150mm	-	2	Enquire
30	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20. Front Fixing, LH Seat Only	-	1	Enquire
