Exterior Powerfold Mirror of Aston Martin Aston Martin DB9 (2013-2016)

View All

Aston Martin DB9 (2013-2016) - Exterior Powerfold Mirror

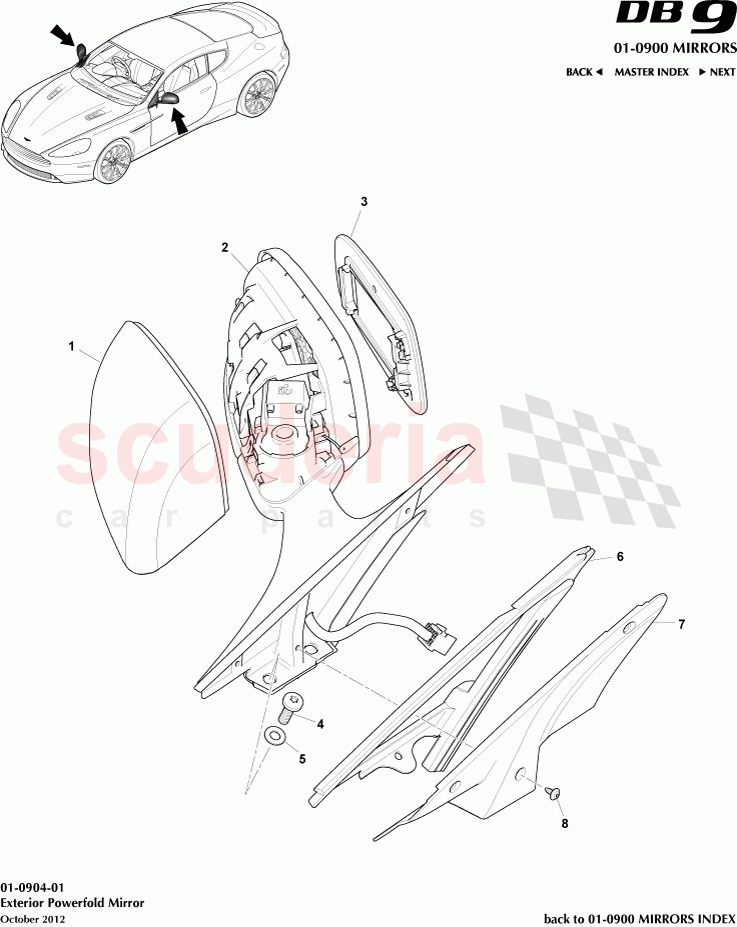

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AG3339979062AC	External Rear View Mirror Cap RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4317682DC	PFLD DOOR MIRROR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG333063472AC	Mirror Glass, Convex, RH, Driver Side	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91535	ENGINE ASSY-4.3L V8 VANTAGE(STD) - RECON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703131	WASHER PLAIN FORM A M8 CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG43F21510AA	Weather Strip, Front Door Glass Run Channel, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43830912ABW	COVER INT DR MR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33104101BA	M4 THRD FORM SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD3339979062CA	MIRROR CAP RH CARBON	CD3339979062CA MIRROR CAP RH CARBON Carbon	-	1	Enquire
-	AG3339979063AC	Cap, Door Mirror, LH	AG3339979063AC Cap, Door Mirror, LH	-	1	Enquire
-	CD3339979063CA	MIRROR CAP LH CARBON	CD3339979063CA MIRROR CAP LH CARBON Carbon	-	1	Enquire
-	AD3317682BF	MIRROR ASSY - REAR	AD3317682BF MIRROR ASSY - REAR Carbon	-	1	Enquire
-	CG4317683DC	PFLD DOOR MIRROR LH	CG4317683DC PFLD DOOR MIRROR LH	-	1	Enquire
-	AD3317683BF	MIRROR ASSY REAR	AD3317683BF MIRROR ASSY REAR Carbon	-	1	Enquire
-	AG333063473AC	Mirror Glass, Convex, LH, Passenger Side	AG333063473AC Mirror Glass, Convex, LH, Passenger Side Euro	-	1	Enquire
-	AG333063472BC	Mirror Glass, Convex, RH, Passenger Side	AG333063472BC Mirror Glass, Convex, RH, Passenger Side Federal	-	1	Enquire
-	AG333063473BC	Mirror Glass, Flat, LH, Driver Side	AG333063473BC Mirror Glass, Flat, LH, Driver Side Federal	-	1	Enquire
-	AG333063472CC	Mirror Glass, GCC Convex with Arabic Script, RH, Passenger Side	AG333063472CC Mirror Glass, GCC Convex with Arabic Script, RH, Passenger Side GCC	-	1	Enquire
-	AG333063473CC	Mirror Glass, GCC Convex With Arabic Script, LH, Driver Side	AG333063473CC Mirror Glass, GCC Convex With Arabic Script, LH, Driver Side GCC	-	1	Enquire
-	AG333063472DB	Mirror Glass, Convex, RH, Passenger Side ARRIVING SOON	AG333063472DB Mirror Glass, Convex, RH, Passenger Side Euro ARRIVING SOON	-	1	Enquire
-	AG333063473DB	EXTERIOR MIRROR GLASS CONVEX LH LHD DRIVER SIDE	AG333063473DB EXTERIOR MIRROR GLASS CONVEX LH LHD DRIVER SIDE Euro	-	1	Enquire
-	AG43F21511AA	Weather Strip, Front Door Glass Run Channel, LH	AG43F21511AA Weather Strip, Front Door Glass Run Channel, LH	-	1	Enquire
-	9G43830913ABW	COVER INT DR MR LH	9G43830913ABW COVER INT DR MR LH	-	1	Enquire
-	9G43M3SBAA	Butyl tape, 3mm	9G43M3SBAA Butyl tape, 3mm	-	1	Enquire
-	8D33EM30LAA	Grease, moly cote EM 30L	8D33EM30LAA Grease, moly cote EM 30L	-	A/R	Enquire
-	6G33C47775AA	FOAM PAD - DIVISION BAR/DR OTR WAIST SEAL	6G33C47775AA FOAM PAD - DIVISION BAR/DR OTR WAIST SEAL	-	2	Enquire
1	AG3339979062AC	External Rear View Mirror Cap RH	AG3339979062AC External Rear View Mirror Cap RH	-	1	Enquire
2	CG4317682DC	PFLD DOOR MIRROR RH	CG4317682DC PFLD DOOR MIRROR RH	-	1	Enquire
3	AG333063472AC	Mirror Glass, Convex, RH, Driver Side	AG333063472AC Mirror Glass, Convex, RH, Driver Side Euro	-	1	Enquire
4	91535	ENGINE ASSY-4.3L V8 VANTAGE(STD) - RECON	91535 ENGINE ASSY-4.3L V8 VANTAGE(STD) - RECON	-	4	Enquire
5	703131	WASHER PLAIN FORM A M8 CHROME FREE	703131 WASHER PLAIN FORM A M8 CHROME FREE	-	4	Enquire
6	AG43F21510AA	Weather Strip, Front Door Glass Run Channel, RH	AG43F21510AA Weather Strip, Front Door Glass Run Channel, RH	-	1	Enquire
7	9G43830912ABW	COVER INT DR MR RH	9G43830912ABW COVER INT DR MR RH	-	1	Enquire
8	6G33104101BA	M4 THRD FORM SCREW	6G33104101BA M4 THRD FORM SCREW	-	6	Enquire
