Rear Quarter Trim Panel, 2+0 COUPE

Find Your Part

Aston Martin DB9 (2013-2016) - Rear Quarter Trim Panel, 2+0 COUPE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CG4331112AAW Panel Assy, Rear Quarter Upper, RH $1,411.39 To Order
Photo Part No Description Price (each) Stock
704328 Screw, M5 x 20, Torx Pan Head $0.11 To Order
Photo Part No Description Price (each) Stock
697517PK WASHER-M6 LGE OD BLK PACK OF 20 $23.61 To Order
Photo Part No Description Price (each) Stock
702514 SCREW M6 x 14 PAN HEAD $1.68 To Order
Photo Part No Description Price (each) Stock
701581PK FIRTREE-FLAT HEAD (PACK OF 20) $12.02 To Order
Photo Part No Description Price (each) Stock
4G4324858AEW Bezel Assembly, Front Seat Belt, RH $187.81 To Order
Photo Part No Description Price (each) Stock
4G43V850063AA Screw, Cap Hd $0.62 To Order
Photo Part No Description Price (each) Stock
9D3331012AEW Panel Assembly, Quarter, RH Enquire To Order
Photo Part No Description Price (each) Stock
9D33310B08AC Speaker Grille, Rear Quarter Lower, RH $753.79 To Order
Photo Part No Description Price (each) Stock
701448 Spring Nut, U Type, 4.2 x 2.1 $1.25 To Order
Photo Part No Description Price (each) Stock
703026 Screw, M5 x 16, Hex Flange Head $0.21 To Order
Photo Part No Description Price (each) Stock
702295 Nut, M5, Hex Flange Head $0.11 To Order
Photo Part No Description Price (each) Stock
8D3319H207AAW Anti Squeak Tape Enquire To Order
Photo Part No Description Price (each) Stock
9G4318564AA Hook, Coat $7.19 To Order
Photo Part No Description Price (each) Stock
FD43E830667AB WASHER 25MM X 6.4MM BLACK $0.73 To Order
Photo Part No Description Price (each) Stock
703163 Nut, M6, Hex Flange Head, Locking $0.12 To Order
View All

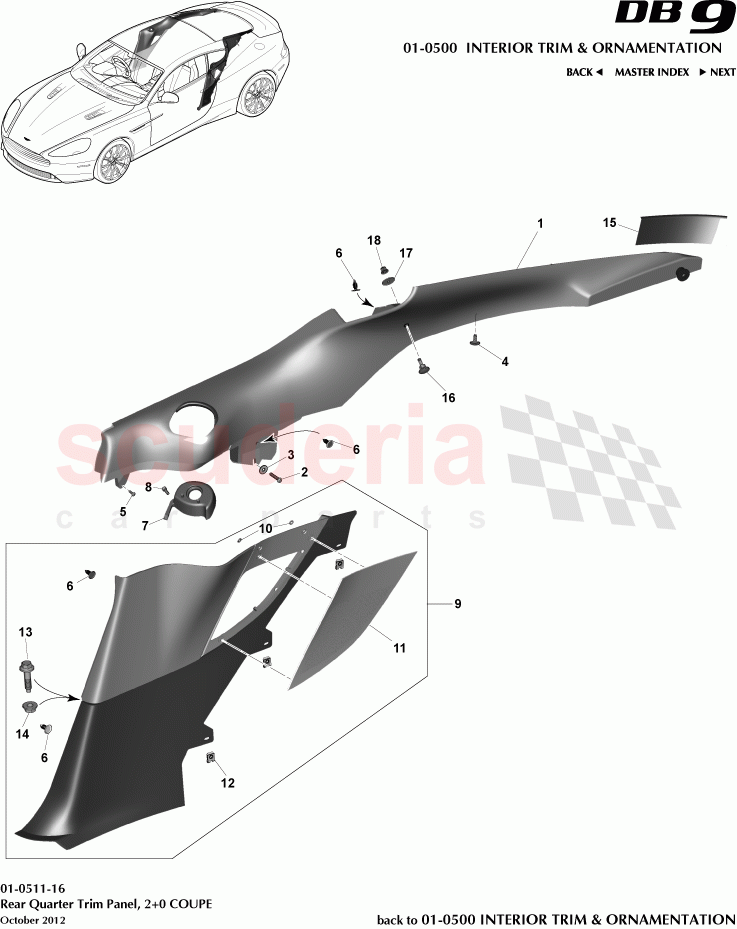

Rear Quarter Trim Panel, 2+0 COUPE of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CG4331113AAW
Panel Assy, Rear Quarter Upper, LH 		$1,411.39 1
- 4G4324859AEW
Bezel Assembly, Front Seat Belt, LH 		$187.81 1
- 9D3331013AEW
Panel Assembly, Quarter, LH 		- 1 Enquire
- 9D33310B08BA
Speaker Grille, Black Rear Quarter Lower, RH
B&O, Black 		$771.92 1
- EG43310B08CA
Speaker Grille, Rear Quarter Lower, RH
Alpine 		- 1 Enquire
- 9D33310B09AC
Speaker Grille, Rear Quarter Lower, LH
B&O 		$753.79 1
- 9D33310B09BA
Speaker Grille, Black Rear Quarter Lower, LH
B&O, Black 		$771.92 1
- EG43310B09CA
Speaker Grille, Rear Quarter Lower, LH
Alpine 		- 1 Enquire
- 7G43C2437AAW
CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE 		$149.25 A/R
1 CG4331112AAW
Panel Assy, Rear Quarter Upper, RH 		$1,411.39 1
2 704328
Screw, M5 x 20, Torx Pan Head 		$0.11 2
3 697517PK
WASHER-M6 LGE OD BLK PACK OF 20
Pack of 20 		$23.61 2
4 702514
SCREW M6 x 14 PAN HEAD 		$1.68 2
6 701581PK
FIRTREE-FLAT HEAD (PACK OF 20)
Pack of 20 		$12.02 8
7 4G4324858AEW
Bezel Assembly, Front Seat Belt, RH 		$187.81 1
8 4G43V850063AA
Screw, Cap Hd
1 per Bezel 		$0.62 2
9 9D3331012AEW
Panel Assembly, Quarter, RH 		- 1 Enquire
11 9D33310B08AC
Speaker Grille, Rear Quarter Lower, RH
B&O 		$753.79 1
12 701448
Spring Nut, U Type, 4.2 x 2.1 		$1.25 6
13 703026
Screw, M5 x 16, Hex Flange Head
7 per Side 		$0.21 14
14 702295
Nut, M5, Hex Flange Head
7 per Side 		$0.11 14
15 8D3319H207AAW
Anti Squeak Tape 		- 2 Enquire
16 9G4318564AA
Hook, Coat 		$7.19 2
17 FD43E830667AB
WASHER 25MM X 6.4MM BLACK
Pack of 10 		$0.73 2
18 703163
Nut, M6, Hex Flange Head, Locking 		$0.12 2
