Rear Seat Assembly, COUPE of Aston Martin Aston Martin DB9 (2013-2016)

View All

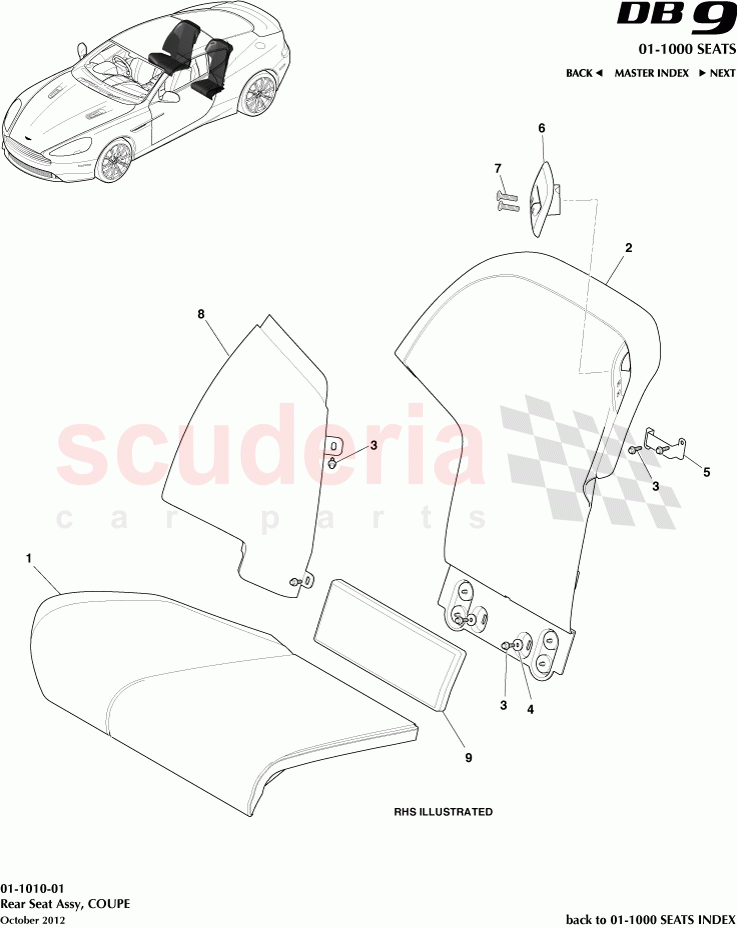

Aston Martin DB9 (2013-2016) - Rear Seat Assembly, COUPE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CG4360080AAW	Cushion Assy, Rear Seat, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4360032AAW	Back Assy, Rear Seat, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703026	Screw, M5 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4341171AB	Bracket, Squab Rear Fixing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43611B90BA	Bezel, Rear Seatbelt, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703076	Screw, M4 x 20, Flat Socket Countersunk	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4360594AAW	Bolster Panel Assy, Rear Seat, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D3363846ABW	Lumbar Pad, Rear Seat, RH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CG4360081AAW	Cushion Assy, Rear Seat, LH	CG4360081AAW Cushion Assy, Rear Seat, LH Trimmed	-	1	Enquire
-	CG4360033ABW	Back Assy, Rear Seat, LH	CG4360033ABW Back Assy, Rear Seat, LH Trimmed	-	1	Enquire
-	4G43611B91BA	Bezel, Rear Seatbelt, LH	4G43611B91BA Bezel, Rear Seatbelt, LH	-	1	Enquire
-	CG4360595AAW	Bolster Panel Assy, Rear Seat, LH	CG4360595AAW Bolster Panel Assy, Rear Seat, LH Trimmed	-	1	Enquire
-	9D3363847ABW	Lumbar Pad, Rear Seat, LH	9D3363847ABW Lumbar Pad, Rear Seat, LH Trimmed	-	1	Enquire
1	CG4360080AAW	Cushion Assy, Rear Seat, RH	CG4360080AAW Cushion Assy, Rear Seat, RH Trimmed	-	1	Enquire
2	CG4360032AAW	Back Assy, Rear Seat, RH	CG4360032AAW Back Assy, Rear Seat, RH Trimmed	-	1	Enquire
3	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head 6 per Seat	-	12	Enquire
4	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 2 per Seat, 20 per Pack	-	4	Enquire
5	4G4341171AB	Bracket, Squab Rear Fixing	4G4341171AB Bracket, Squab Rear Fixing	-	2	Enquire
6	4G43611B90BA	Bezel, Rear Seatbelt, RH	4G43611B90BA Bezel, Rear Seatbelt, RH	-	1	Enquire
7	703076	Screw, M4 x 20, Flat Socket Countersunk	703076 Screw, M4 x 20, Flat Socket Countersunk 2 per Bezel	-	4	Enquire
8	CG4360594AAW	Bolster Panel Assy, Rear Seat, RH	CG4360594AAW Bolster Panel Assy, Rear Seat, RH Trimmed	-	1	Enquire
9	9D3363846ABW	Lumbar Pad, Rear Seat, RH	9D3363846ABW Lumbar Pad, Rear Seat, RH	-	1	Enquire
