Instrument Panel, Leather Covered

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Instrument Panel, Leather Covered

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G3356241AE Sight Shield, Glove Compartment Assy Enquire To Order
Photo Part No Description Price (each) Stock
8D33C043K93BCW PASS LOWER RHD Enquire To Order
Photo Part No Description Price (each) Stock
4G4380899AA SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED) Enquire To Order
Photo Part No Description Price (each) Stock
6G33F9C070AA ACTUATOR FUEL FILLER Enquire To Order
Photo Part No Description Price (each) Stock
NSS  Seat Belt Loops Frt/ Rear and Left/Right Enquire To Order
Photo Part No Description Price (each) Stock
4G432K625AA Abutment, Fuel Filler Cable Enquire To Order
Photo Part No Description Price (each) Stock
9G4306004AB Latch Assy, Glovebox Enquire To Order
Photo Part No Description Price (each) Stock
AG4340180BA Cable, Fuel Filler Flap Release Enquire To Order
Photo Part No Description Price (each) Stock
8D33044H40AAW Centre Leather Cover, Instrument Panel, LH Enquire To Order
Photo Part No Description Price (each) Stock
8D33044H41AAW Centre Leather Cover, Instrument Panel, RH Enquire To Order
Photo Part No Description Price (each) Stock
4G43044B93AA Cover Spacer, Instrument Panel Enquire To Order
Photo Part No Description Price (each) Stock
8D33044B92AAW Leather End Cover, Instrument Panel, RH Enquire To Order
Photo Part No Description Price (each) Stock
8D33044B92CAW Leather End Cover, Instrument Panel, LH Enquire To Order
Photo Part No Description Price (each) Stock
8D33C044H58BCW PASS AIRBAG DOOR RHD Enquire To Order
Photo Part No Description Price (each) Stock
8D33C04635BCW PASS UPP OUTER RHD Enquire To Order
Photo Part No Description Price (each) Stock
9D33C043C54DCW PASS UPPER RHD Enquire To Order
Photo Part No Description Price (each) Stock
9D33C043C54BCW DRIVER UPPER RHD Enquire To Order
Photo Part No Description Price (each) Stock
8D33C04634DDW DRIVER UPP INNER RHD Enquire To Order
Photo Part No Description Price (each) Stock
8D33C04634CCW DRIVER UPP OUTER RHD Enquire To Order
Photo Part No Description Price (each) Stock
8D3310862ACW BINNACLE HOOD Enquire To Order
Photo Part No Description Price (each) Stock
4G433T501AEW Cover, Steering Column Upper Enquire To Order
Photo Part No Description Price (each) Stock
4G4311A665AD Bezel, Light Switch Enquire To Order
Photo Part No Description Price (each) Stock
4G4360K51DA Knee Protector, RHD Enquire To Order
Photo Part No Description Price (each) Stock
8D33C04325BCW DRIVER LOWER RHD Enquire To Order
Photo Part No Description Price (each) Stock
702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20) Enquire To Order
Photo Part No Description Price (each) Stock
701447 Screw, M4 x 12, Pan Head, Torx Screw Enquire To Order
Photo Part No Description Price (each) Stock
701157PK Screw & Washer 4.2 x 16 (Pack of 10) Enquire To Order
View All

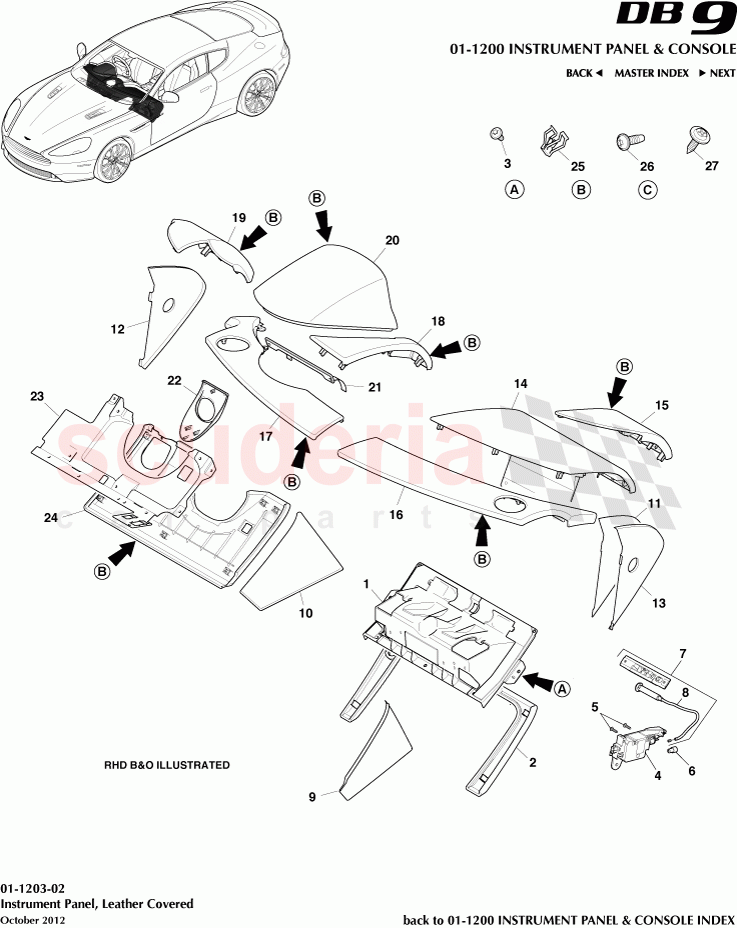

Instrument Panel, Leather Covered of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8D33C043K93ACW
PASSENGER LOWER LHD 		- 1 Enquire
- 8D33C044H58ACW
PASS AIRBAG DOOR LHD 		- 1 Enquire
- 8D33C04635ACW
DRIVER UPP OUTER LHD 		- 1 Enquire
- 9D33C043C54CCW
PASS UPP LHD
Specifiy B&O or Premium 		- 1 Enquire
- 9D33C043C54ACW
DRIVER UPPER LHD
Specifiy B&O or Premium 		- 1 Enquire
- 8D33C04634BDW
DRIVER UPP INNER LHD 		- 1 Enquire
- 8D33C04634ACW
DRIVER UPP OUTER LHD 		- 1 Enquire
- 4G4360K51CA
Knee Protector, LHD 		- 1 Enquire
- 8D33C04325ACW
DRIVER LOWER LHD 		- 1 Enquire
1 6G3356241AE
Sight Shield, Glove Compartment Assy 		- 1 Enquire
2 8D33C043K93BCW
PASS LOWER RHD 		- 1 Enquire
3 4G4380899AA
SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED) 		- 7 Enquire
4 6G33F9C070AA
ACTUATOR FUEL FILLER 		- 1 Enquire
5 NSS
 Seat Belt Loops Frt/ Rear and Left/Right 		- 2 Enquire
6 4G432K625AA
Abutment, Fuel Filler Cable 		- 1 Enquire
7 9G4306004AB
Latch Assy, Glovebox 		- 1 Enquire
8 AG4340180BA
Cable, Fuel Filler Flap Release 		- 1 Enquire
9 8D33044H40AAW
Centre Leather Cover, Instrument Panel, LH 		- 1 Enquire
10 8D33044H41AAW
Centre Leather Cover, Instrument Panel, RH 		- 1 Enquire
11 4G43044B93AA
Cover Spacer, Instrument Panel 		- 2 Enquire
12 8D33044B92AAW
Leather End Cover, Instrument Panel, RH 		- 1 Enquire
13 8D33044B92CAW
Leather End Cover, Instrument Panel, LH 		- 1 Enquire
14 8D33C044H58BCW
PASS AIRBAG DOOR RHD 		- 1 Enquire
15 8D33C04635BCW
PASS UPP OUTER RHD 		- 1 Enquire
16 9D33C043C54DCW
PASS UPPER RHD
Specifiy B&O or Premium 		- 1 Enquire
17 9D33C043C54BCW
DRIVER UPPER RHD
Specifiy B&O or Premium 		- 1 Enquire
18 8D33C04634DDW
DRIVER UPP INNER RHD 		- 1 Enquire
19 8D33C04634CCW
DRIVER UPP OUTER RHD 		- 1 Enquire
20 8D3310862ACW
BINNACLE HOOD 		- 1 Enquire
21 4G433T501AEW
Cover, Steering Column Upper 		- 1 Enquire
22 4G4311A665AD
Bezel, Light Switch 		- 1 Enquire
23 4G4360K51DA
Knee Protector, RHD 		- 1 Enquire
24 8D33C04325BCW
DRIVER LOWER RHD 		- 1 Enquire
25 702520PK
Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20) 		- A/R Enquire
26 701447
Screw, M4 x 12, Pan Head, Torx Screw 		- 3 Enquire
27 701157PK
Screw & Washer 4.2 x 16 (Pack of 10) 		- A/R Enquire
