Rear Quarter Trim Panel, 2+2 COUPE of Aston Martin Aston Martin DB9 (2013-2016)

View All

Aston Martin DB9 (2013-2016) - Rear Quarter Trim Panel, 2+2 COUPE

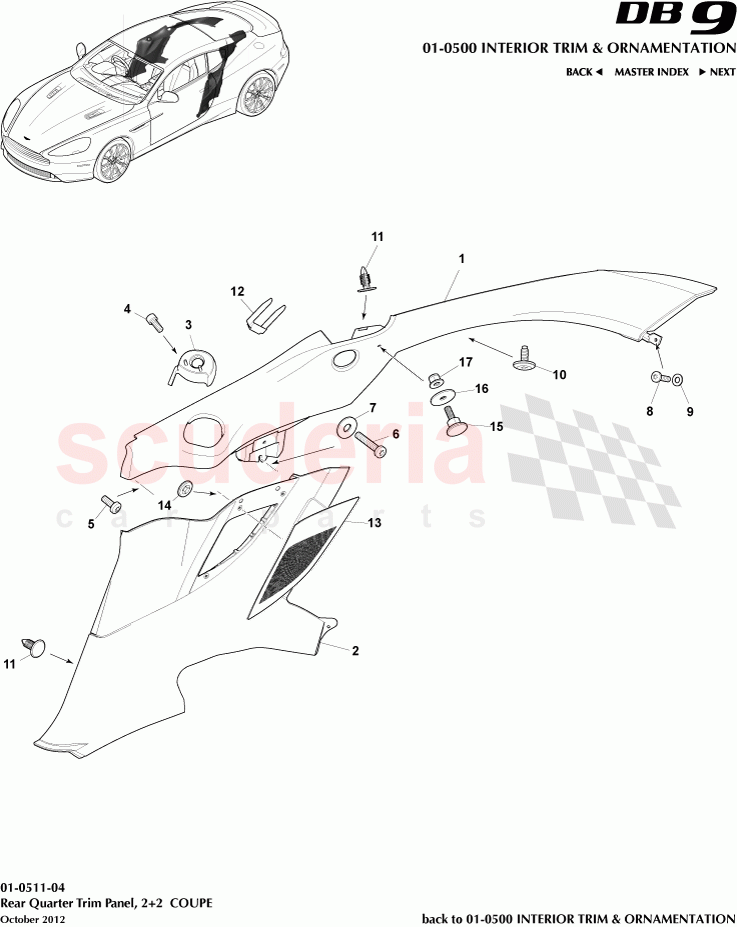

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CG4331112AAW	Panel Assy, Rear Quarter Upper, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4331012AFW	Panel Assy, body side trim, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4324858AEW	Bezel Assembly, Front Seat Belt, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43V850063AA	Screw, Cap Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703175	SCREW M4 x 10 PAN TORX CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704328	Screw, M5 x 20, Torx Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703174	Bolt, M4, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692054	WASHER M4 PLAIN MED MILD STEEL ZINC PLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702514	SCREW M6 x 14 PAN HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701581PK	FIRTREE-FLAT HEAD (PACK OF 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43290E16AB	Plate, Light to Quarter Panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EG43310B08CA	Speaker Grille, Rear Quarter Lower, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4318564AA	Hook, Coat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703163	Nut, M6, Hex Flange Head, Locking	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CG4331113AAW	Panel Assy, Rear Quarter Upper, LH	CG4331113AAW Panel Assy, Rear Quarter Upper, LH	-	1	Enquire
-	4G4331013AFW	Panel Assy, body side trim, LH	4G4331013AFW Panel Assy, body side trim, LH Alpine. Includes Item 13	-	1	Enquire
-	9G4331012ADW	Panel Assy, Quarter Lower, RH	9G4331012ADW Panel Assy, Quarter Lower, RH B&O. Includes Item 13	-	1	Enquire
-	9G4331013ACW	Panel Assy, Quarter Lower, LH	9G4331013ACW Panel Assy, Quarter Lower, LH B&O. Includes Item 13	-	1	Enquire
-	4G4324859ADW	Bezel Assy, Front Seat Belt, LH	4G4324859ADW Bezel Assy, Front Seat Belt, LH	-	1	Enquire
-	9D33310B08AC	Speaker Grille, Rear Quarter Lower, RH	9D33310B08AC Speaker Grille, Rear Quarter Lower, RH B&O	-	1	Enquire
-	9D33310B08BA	Speaker Grille, Black Rear Quarter Lower, RH	9D33310B08BA Speaker Grille, Black Rear Quarter Lower, RH B&O	-	1	Enquire
-	EG43310B09CA	Speaker Grille, Rear Quarter Lower, LH	EG43310B09CA Speaker Grille, Rear Quarter Lower, LH Alpine	-	1	Enquire
-	9D33310B09AC	Speaker Grille, Rear Quarter Lower, LH	9D33310B09AC Speaker Grille, Rear Quarter Lower, LH B&O	-	1	Enquire
-	9D33310B09BA	Speaker Grille, Black Rear Quarter Lower, LH	9D33310B09BA Speaker Grille, Black Rear Quarter Lower, LH B&O	-	1	Enquire
-	7G43C2437AAW	CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	7G43C2437AAW CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	-	AR	Enquire
1	CG4331112AAW	Panel Assy, Rear Quarter Upper, RH	CG4331112AAW Panel Assy, Rear Quarter Upper, RH	-	1	Enquire
2	4G4331012AFW	Panel Assy, body side trim, RH	4G4331012AFW Panel Assy, body side trim, RH Alpine. Includes Item 13	-	1	Enquire
3	4G4324858AEW	Bezel Assembly, Front Seat Belt, RH	4G4324858AEW Bezel Assembly, Front Seat Belt, RH	-	1	Enquire
4	4G43V850063AA	Screw, Cap Hd	4G43V850063AA Screw, Cap Hd	-	2	Enquire
5	703175	SCREW M4 x 10 PAN TORX CHROME FREE	703175 SCREW M4 x 10 PAN TORX CHROME FREE	-	2	Enquire
6	704328	Screw, M5 x 20, Torx Pan Head	704328 Screw, M5 x 20, Torx Pan Head	-	2	Enquire
7	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	2	Enquire
8	703174	Bolt, M4, Pan Head	703174 Bolt, M4, Pan Head	-	2	Enquire
9	692054	WASHER M4 PLAIN MED MILD STEEL ZINC PLT	692054 WASHER M4 PLAIN MED MILD STEEL ZINC PLT	-	2	Enquire
10	702514	SCREW M6 x 14 PAN HEAD	702514 SCREW M6 x 14 PAN HEAD	-	2	Enquire
11	701581PK	FIRTREE-FLAT HEAD (PACK OF 20)	701581PK FIRTREE-FLAT HEAD (PACK OF 20)	-	8	Enquire
12	4G43290E16AB	Plate, Light to Quarter Panel	4G43290E16AB Plate, Light to Quarter Panel	-	2	Enquire
13	EG43310B08CA	Speaker Grille, Rear Quarter Lower, RH	EG43310B08CA Speaker Grille, Rear Quarter Lower, RH Alpine	-	1	Enquire
15	9G4318564AA	Hook, Coat	9G4318564AA Hook, Coat	-	1	Enquire
16	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	FD43E830667AAPK Washer 25mm x 6.4mm (Pack of 10) 1 per Coat Hook, Pack of 10	-	1	Enquire
17	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking 1 per Coat Hook	-	1	Enquire
