Cabin Rear Trim, 2+0 Coupe

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Cabin Rear Trim, 2+0 COUPE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D33045C63ADW Panel Assy, Stowage Compartement Side, LH Enquire To Order
Photo Part No Description Price (each) Stock
701157PK Screw & Washer 4.2 x 16 (Pack of 10) Enquire To Order
Photo Part No Description Price (each) Stock
701448 Spring Nut, U Type, 4.2 x 2.1 Enquire To Order
Photo Part No Description Price (each) Stock
CG4360027AAW Panel Assy, bulk head outer, LH Enquire To Order
Photo Part No Description Price (each) Stock
702944 Nut, M6, Hex Flanged Head Enquire To Order
Photo Part No Description Price (each) Stock
8D33313A73AB Bracket, Cabin Finisher, Outboard, LH Enquire To Order
Photo Part No Description Price (each) Stock
W505735S424 Screw, M6 x 25, Countersunk Head Enquire To Order
Photo Part No Description Price (each) Stock
4G43105104AA Screw, M4 x 8, Cap Head, Black Enquire To Order
Photo Part No Description Price (each) Stock
8D33674A09AD Finisher, Cabin, LH Enquire To Order
Photo Part No Description Price (each) Stock
8D3311767ABW Panel Assy, Stowage Compartment Lower, LH Enquire To Order
Photo Part No Description Price (each) Stock
8D3360029ACW Panel Assy, cover rear bulk head, LH Enquire To Order
Photo Part No Description Price (each) Stock
8D3311769AAW Panel Assy, Stowage Compartment Upper, LH Enquire To Order
Photo Part No Description Price (each) Stock
CD33310A85AA Bracket, Bulk Head Side, LH Enquire To Order
Photo Part No Description Price (each) Stock
8D33314A97AC Bracket, Rear Heel Board, LH Enquire To Order
View All

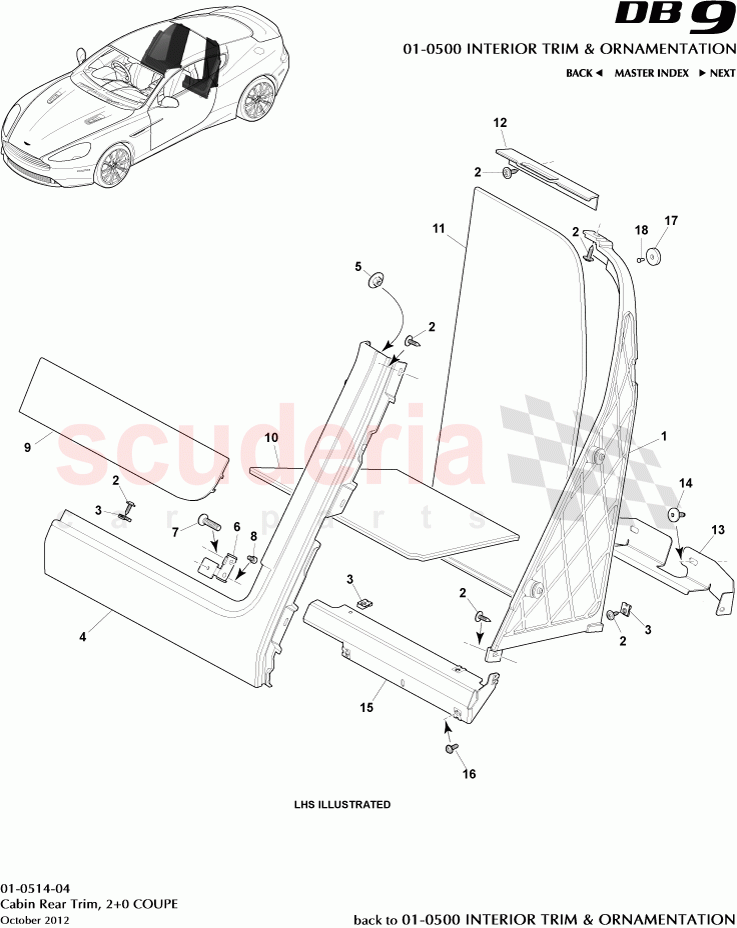

Cabin Rear Trim, 2+0 COUPE of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8D33045C62ADW
Panel Assy, Stowage Compartement Side, RH 		- 1 Enquire
- CG4360026AAW
Panel Assy, bulk head outer, RH 		- 1 Enquire
- 8D33313A72AB
Bracket, Cabin Finisher, Outboard, RH 		- 1 Enquire
- 8D33674A08AD
Finisher, Cabin, RH 		- 1 Enquire
- 8D3311766AAW
Panel Assy, Stowage Compartment Lower, RH 		- 1 Enquire
- 8D3360028ADW
Panel Assy, Cover Rear Bulk Head, RH 		- 1 Enquire
- 8D3311768AAW
Panel Assy, Stowage Compartment Upper, RH 		- 1 Enquire
- 8D33310A84AB
Bracket, Bulk Head Side, RH 		- 1 Enquire
- 8D33314A96AC
Bracket, Rear Heel Board, RH 		- 1 Enquire
1 8D33045C63ADW
Panel Assy, Stowage Compartement Side, LH 		- 1 Enquire
2 701157PK
Screw & Washer 4.2 x 16 (Pack of 10)
Pack of 10 		- 24 Enquire
3 701448
Spring Nut, U Type, 4.2 x 2.1 		- 12 Enquire
4 CG4360027AAW
Panel Assy, bulk head outer, LH 		- 1 Enquire
5 702944
Nut, M6, Hex Flanged Head 		- 2 Enquire
6 8D33313A73AB
Bracket, Cabin Finisher, Outboard, LH 		- 1 Enquire
7 W505735S424
Screw, M6 x 25, Countersunk Head 		- 4 Enquire
8 4G43105104AA
Screw, M4 x 8, Cap Head, Black 		- 2 Enquire
9 8D33674A09AD
Finisher, Cabin, LH 		- 1 Enquire
10 8D3311767ABW
Panel Assy, Stowage Compartment Lower, LH 		- 1 Enquire
11 8D3360029ACW
Panel Assy, cover rear bulk head, LH 		- 1 Enquire
12 8D3311769AAW
Panel Assy, Stowage Compartment Upper, LH 		- 1 Enquire
13 CD33310A85AA
Bracket, Bulk Head Side, LH 		- 1 Enquire
15 8D33314A97AC
Bracket, Rear Heel Board, LH 		- 1 Enquire
