Front Door Trim Panel of Aston Martin Aston Martin DB9 (2013-2016)

View All

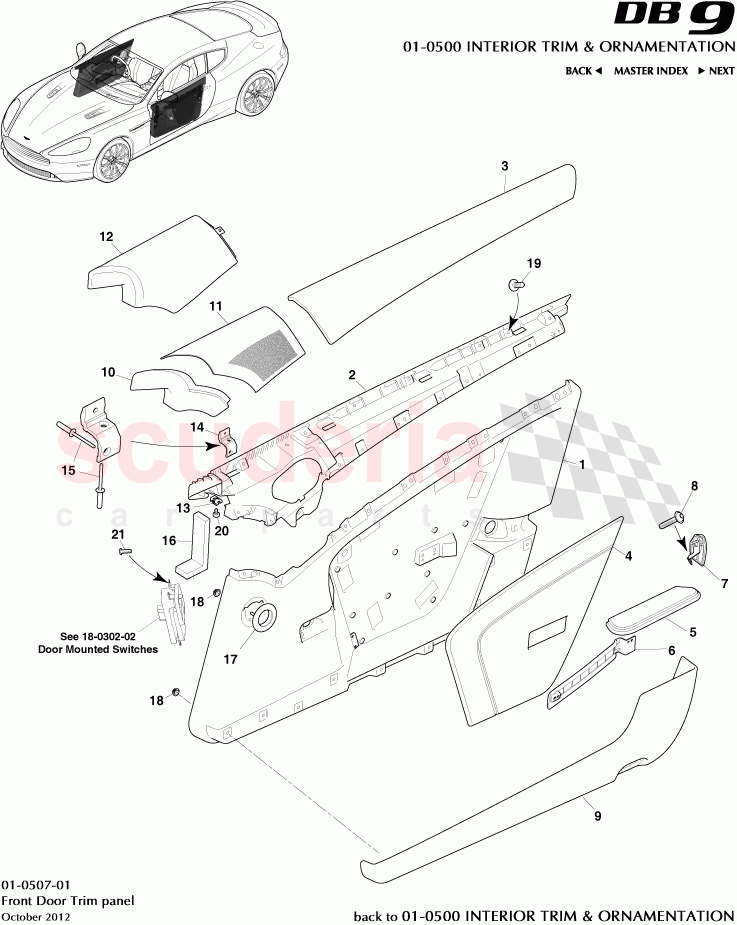

Aston Martin DB9 (2013-2016) - Front Door Trim Panel

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CG4323936ABW	Trim, Panel Assy Front Door Trim Lower, RH, Standard Leather.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D3323900AA	Panel, Front Door Trim Upper, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4323928AAW	Panel Assy Door RH Leather Wrapped Top Roll & Flip Stiched Seam	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4323864ABW	Insert Assy, Door Trim Panel, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4324070AAW	Pad Assy, Door Arm Rest Upper RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4324242AFW	Insert Assy, Front Door Armrest, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43237A76AEW	Cap Front Door Trim RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	W705650S424	Screw Pan Head M4 x16 With Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4323718ABW	POCKET ASSY DOOR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4323941AAW	Cover Assy Door Trim Panel RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D33C18978AB	Speaker Assy, RH Side Door Top Speaker Grille silver	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EG43C18978DA	Speaker Assy, RH Side Door Top Speaker Grille Iridium Silver	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	W700767S300	Nut, U Type	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4320838BA	Retainer, Door Trim Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701655	Rivet, 4.8 x 6.3-12.7	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4302275AB	Seal Venair Outlet Duct Door Lower RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43C237898BA	Bezel Door Trim, Iridium Silver	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4383000BB	Nut - Speed M5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707613	SCREW M4.2 X 13 FLANGE BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703027	SCREW M4x10 PAN HD TORX S/TAP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CG4323942ADW	Trim, Door Assy COMPLETE, RH, LHD, Dec Stich Top Roll, Iridium, Std Lthr Welted Insert.	CG4323942ADW Trim, Door Assy COMPLETE, RH, LHD, Dec Stich Top Roll, Iridium, Std Lthr Welted Insert. Alpine	-	1	Enquire
-	CG4323942BDW	Trim, Door Assy COMPLETE, RH, RHD, Dec Stich Top Roll Iridium, Std Lthr Welted Insert.	CG4323942BDW Trim, Door Assy COMPLETE, RH, RHD, Dec Stich Top Roll Iridium, Std Lthr Welted Insert. Alpine	-	1	Enquire
-	CG4323943ADW	Trim, Door Assy COMPLETE, LH, LHD, Dec Stich Top Roll, Iridium, Std Lthr Welted Insert.	CG4323943ADW Trim, Door Assy COMPLETE, LH, LHD, Dec Stich Top Roll, Iridium, Std Lthr Welted Insert. Alpine	-	1	Enquire
-	CG4323943BDW	Trim, Door Assy COMPLETE, LH, RHD, Dec Stich Top Roll, Iridium, Std Lthr Welted Insert.	CG4323943BDW Trim, Door Assy COMPLETE, LH, RHD, Dec Stich Top Roll, Iridium, Std Lthr Welted Insert. Alpine	-	1	Enquire
-	CG4323942JDW	Trim, Door Assy COMPLETE, RH, LHD, Dec Stich Top Roll, Iridium, Hvy Lthr Welted Insert.	CG4323942JDW Trim, Door Assy COMPLETE, RH, LHD, Dec Stich Top Roll, Iridium, Hvy Lthr Welted Insert. Alpine	-	1	Enquire
-	CG4323942KDW	Trim, Door Assy COMPLETE, RH, RHD, Dec Stich Top Roll, Iridium, Hvy Lthr Welted Insert.	CG4323942KDW Trim, Door Assy COMPLETE, RH, RHD, Dec Stich Top Roll, Iridium, Hvy Lthr Welted Insert. Alpine	-	1	Enquire
-	CG4323943JDW	Trim, Door Assy COMPLETE, LH, LHD, Dec Stich Top Roll, Iridium, Hvy Lthr Welted Insert.	CG4323943JDW Trim, Door Assy COMPLETE, LH, LHD, Dec Stich Top Roll, Iridium, Hvy Lthr Welted Insert. Alpine	-	1	Enquire
-	CG4323943KDW	Trim, Door Assy COMPLETE, LH, RHD, Dec Stich Top Roll, Iridium, Hvy Lthr Welted Insert.	CG4323943KDW Trim, Door Assy COMPLETE, LH, RHD, Dec Stich Top Roll, Iridium, Hvy Lthr Welted Insert. Alpine	-	1	Enquire
-	CG4323942CDW	Trim, Door Assy COMPLETE, RH, LHD, No Top Roll, Iridium, Std Lthr Welted Insert.	CG4323942CDW Trim, Door Assy COMPLETE, RH, LHD, No Top Roll, Iridium, Std Lthr Welted Insert. Alpine	-	1	Enquire
-	CG4323942DDW	Trim, Door Assy COMPLETE, RH, RHD, No Top Roll, Iridium, Std Lthr Welted Insert.	CG4323942DDW Trim, Door Assy COMPLETE, RH, RHD, No Top Roll, Iridium, Std Lthr Welted Insert. Alpine	-	1	Enquire
-	CG4323943CDW	Trim, Door Assy COMPLETE, LH, LHD, No Top Roll, Iridium, Std Lthr Welted Insert.	CG4323943CDW Trim, Door Assy COMPLETE, LH, LHD, No Top Roll, Iridium, Std Lthr Welted Insert. Alpine	-	1	Enquire
-	CG4323943DDW	Trim, Door Assy COMPLETE, LH, RHD, No Top Roll, Iridium, Std Lthr Welted Insert.	CG4323943DDW Trim, Door Assy COMPLETE, LH, RHD, No Top Roll, Iridium, Std Lthr Welted Insert. Alpine	-	1	Enquire
-	CG4323942LDW	Trim, Door Assy COMPLETE, RH, LHD, No Top Roll, Iridium, Std Lthr Welted Insert.	CG4323942LDW Trim, Door Assy COMPLETE, RH, LHD, No Top Roll, Iridium, Std Lthr Welted Insert. Alpine	-	1	Enquire
-	CG4323942MDW	Trim, Door Assy COMPLETE, RH, RHD, No Top Roll, Iridium, Hvy Lthr Welted Insert.	CG4323942MDW Trim, Door Assy COMPLETE, RH, RHD, No Top Roll, Iridium, Hvy Lthr Welted Insert. Alpine	-	1	Enquire
-	CG4323943LDW	Trim, Door Assy COMPLETE, LH, LHD, No Top Roll, Iridium, Hvy Lthr Welted Insert.	CG4323943LDW Trim, Door Assy COMPLETE, LH, LHD, No Top Roll, Iridium, Hvy Lthr Welted Insert. Alpine	-	1	Enquire
-	CG4323943MDW	Trim, Door Assy COMPLETE, LH, RHD, No Top Roll, Iridium, Hvy Lthr Welted Insert.	CG4323943MDW Trim, Door Assy COMPLETE, LH, RHD, No Top Roll, Iridium, Hvy Lthr Welted Insert. Alpine	-	1	Enquire
-	CG4323942ECW	Trim, Door Assy COMPLETE, RH, LHD, Dec Stich Top Roll, Iridium, Std Lthr Welted Insert.	CG4323942ECW Trim, Door Assy COMPLETE, RH, LHD, Dec Stich Top Roll, Iridium, Std Lthr Welted Insert. B&O	-	1	Enquire
-	CG4323942FCW	Trim, Door Assy COMPLETE, RH, RHD, Dec Stich Top Roll, Iridium, Std Lthr Welted Insert.	CG4323942FCW Trim, Door Assy COMPLETE, RH, RHD, Dec Stich Top Roll, Iridium, Std Lthr Welted Insert. B&O	-	1	Enquire
-	CG4323943ECW	Trim, Door Assy COMPLETE, LH, LHD, Dec Stich Top Roll, Iridium, Std Lthr Welted Insert.	CG4323943ECW Trim, Door Assy COMPLETE, LH, LHD, Dec Stich Top Roll, Iridium, Std Lthr Welted Insert. B&O	-	1	Enquire
-	CG4323943FCW	Trim, Door Assy COMPLETE, LH, RHD, Dec Stich Top Roll, Iridium, Std Lthr Welted Insert.	CG4323943FCW Trim, Door Assy COMPLETE, LH, RHD, Dec Stich Top Roll, Iridium, Std Lthr Welted Insert. B&O	-	1	Enquire
-	CG4323942NCW	Trim, Door Assy COMPLETE, RH, LHD, Dec Stich Top Roll, Iridium, Hvy Lthr Welted Insert.	CG4323942NCW Trim, Door Assy COMPLETE, RH, LHD, Dec Stich Top Roll, Iridium, Hvy Lthr Welted Insert. B&O	-	1	Enquire
-	CG4323942PCW	Trim, Door Assy COMPLETE, RH, RHD, Dec Stich Top Roll, Iridium, Hvy Lthr Welted Insert.	CG4323942PCW Trim, Door Assy COMPLETE, RH, RHD, Dec Stich Top Roll, Iridium, Hvy Lthr Welted Insert. B&O	-	1	Enquire
-	CG4323943NCW	Trim, Door Assy COMPLETE, LH, LHD, Dec Stich Top Roll, Iridium, Hvy Lthr Welted Insert.	CG4323943NCW Trim, Door Assy COMPLETE, LH, LHD, Dec Stich Top Roll, Iridium, Hvy Lthr Welted Insert. B&O	-	1	Enquire
-	CG4323943PCW	Trim, Door Assy COMPLETE, LH, RHD, Dec Stich Top Roll, Iridium, Hvy Lthr Welted Insert.	CG4323943PCW Trim, Door Assy COMPLETE, LH, RHD, Dec Stich Top Roll, Iridium, Hvy Lthr Welted Insert. B&O	-	1	Enquire
-	CG4323942HCW	Trim, Door Assy COMPLETE, RH, LHD, No Top Roll, Iridium, Std Lthr Welted Insert.	CG4323942HCW Trim, Door Assy COMPLETE, RH, LHD, No Top Roll, Iridium, Std Lthr Welted Insert. B&O	-	1	Enquire
-	CG4323942GCW	Trim, Door Assy COMPLETE, RH, RHD, No Top Roll, Iridium, Std Lthr Welted Insert.	CG4323942GCW Trim, Door Assy COMPLETE, RH, RHD, No Top Roll, Iridium, Std Lthr Welted Insert. B&O	-	1	Enquire
-	CG4323943GCW	Trim, Door Assy COMPLETE, LH, LHD, No Top Roll, Iridium, Std Lthr Welted Insert.	CG4323943GCW Trim, Door Assy COMPLETE, LH, LHD, No Top Roll, Iridium, Std Lthr Welted Insert. B&O	-	1	Enquire
-	CG4323943HCW	Trim, Door Assy COMPLETE, LH, RHD, No Top Roll, Iridium, Std Lthr Welted Insert.	CG4323943HCW Trim, Door Assy COMPLETE, LH, RHD, No Top Roll, Iridium, Std Lthr Welted Insert. B&O	-	1	Enquire
-	CG4323942SCW	Trim, Door Assy COMPLETE, RH, LHD, No Top Roll, Iridium, Hvy Lthr Welted Insert.	CG4323942SCW Trim, Door Assy COMPLETE, RH, LHD, No Top Roll, Iridium, Hvy Lthr Welted Insert. B&O	-	1	Enquire
-	CG4323942RCW	Trim, Door Assy COMPLETE, RH, RHD, No Top Roll, Iridium, Hvy Lthr Welted Insert.	CG4323942RCW Trim, Door Assy COMPLETE, RH, RHD, No Top Roll, Iridium, Hvy Lthr Welted Insert. B&O	-	1	Enquire
-	CG4323943RCW	Trim, Door Assy COMPLETE, LH, LHD, No Top Roll, Iridium, Hvy Lthr Welted Insert.	CG4323943RCW Trim, Door Assy COMPLETE, LH, LHD, No Top Roll, Iridium, Hvy Lthr Welted Insert. B&O	-	1	Enquire
-	CG4323943SCW	Trim, Door Assy COMPLETE, LH, RHD, No Top Roll, Iridium, Hvy Lthr Welted Insert.	CG4323943SCW Trim, Door Assy COMPLETE, LH, RHD, No Top Roll, Iridium, Hvy Lthr Welted Insert. B&O	-	1	Enquire
-	CG4323937ABW	Trim, Panel Assy Front Door Trim Lower, LH, Standard Leather.	CG4323937ABW Trim, Panel Assy Front Door Trim Lower, LH, Standard Leather.	-	1	Enquire
-	CG4323936BBW	Trim, Panel Assy Front Door Trim Lower, RH, Heavy Mill.	CG4323936BBW Trim, Panel Assy Front Door Trim Lower, RH, Heavy Mill.	-	1	Enquire
-	CG4323937BBW	Trim, Panel Assy Front Door Trim Lower, LH, Heavy Mill.	CG4323937BBW Trim, Panel Assy Front Door Trim Lower, LH, Heavy Mill.	-	1	Enquire
-	9D3323901AA	Panel, Front Door Trim Upper, LH	9D3323901AA Panel, Front Door Trim Upper, LH	-	1	Enquire
-	CG4323929AAW	Panel Assy Door LH Leather Wrapped Top Roll & Flip Stiched Seam	CG4323929AAW Panel Assy Door LH Leather Wrapped Top Roll & Flip Stiched Seam	-	1	Enquire
-	4G438710254	VENEER SET-DOOR PAIR WALNUT	4G438710254 VENEER SET-DOOR PAIR WALNUT ALPINE	-	1	Enquire
-	9G438711263	Panel Assy, Door Trim Kit, Mahogany	9G438711263 Panel Assy, Door Trim Kit, Mahogany ALPINE	-	1	Enquire
-	9G438711264	Panel Assy, Door Trim Kit, Bambo	9G438711264 Panel Assy, Door Trim Kit, Bambo ALPINE	-	1	Enquire
-	9G438711261	Panel Assy, Door Trim Kit, Piano Black	9G438711261 Panel Assy, Door Trim Kit, Piano Black ALPINE	-	1	Enquire
-	9G438711265	Panel Assy, Door Trim Kit, Tamo Ash	9G438711265 Panel Assy, Door Trim Kit, Tamo Ash ALPINE	-	1	Enquire
-	CG4323865ABW	Insert Assy, Door Trim Panel, LH	CG4323865ABW Insert Assy, Door Trim Panel, LH	-	1	Enquire
-	CG4323864BBW	Insert Assy, Door Trim, RH And Welted Seam Heavy Mill Leather	CG4323864BBW Insert Assy, Door Trim, RH And Welted Seam Heavy Mill Leather	-	1	Enquire
-	CG4323865BBW	Insert Assy Door Trim, LH And Welted Seam Heavy Mill Leather	CG4323865BBW Insert Assy Door Trim, LH And Welted Seam Heavy Mill Leather	-	1	Enquire
-	8D3324070AD	Pad Assy, Door Arm Rest Upper RH	8D3324070AD Pad Assy, Door Arm Rest Upper RH Carbon Door Pull	-	1	Enquire
-	CG4324071AAW	Pad Assy, Door Arm Rest Upper LH	CG4324071AAW Pad Assy, Door Arm Rest Upper LH	-	1	Enquire
-	8D3324071AD	Pad Assy, Door Arm Rest Upper LH	8D3324071AD Pad Assy, Door Arm Rest Upper LH Carbon Door Pull	-	1	Enquire
-	4G4324243AFW	Insert Assy, Front Door Armrest, LH	4G4324243AFW Insert Assy, Front Door Armrest, LH	-	1	Enquire
-	8D33237A76ABW	Cap Front Door Trim RH	8D33237A76ABW Cap Front Door Trim RH Carbon Door Pull	-	1	Enquire
-	4G43237A77AEW	Cap Front Door Trim LH	4G43237A77AEW Cap Front Door Trim LH	-	1	Enquire
-	8D33237A77ABW	Cap Front Door Trim LH	8D33237A77ABW Cap Front Door Trim LH Carbon Door Pull	-	1	Enquire
-	4G4323719ABW	POCKET ASSY DOOR LH	4G4323719ABW POCKET ASSY DOOR LH	-	1	Enquire
-	9G4323940AAW	Cover Assy Door Trim Panel LH	9G4323940AAW Cover Assy Door Trim Panel LH B&O	-	1	Enquire
-	9D33C18979AB	Speaker Assy, LH Side Door Top Speaker Grille silver	9D33C18979AB Speaker Assy, LH Side Door Top Speaker Grille silver B&O	-	1	Enquire
-	EG43C18979DA	Speaker Assy, LH Side Door Top Speaker Grille Iridium Silver	EG43C18979DA Speaker Assy, LH Side Door Top Speaker Grille Iridium Silver Alpine	-	1	Enquire
-	4G4302276AB	Seal Venair Outlet Duct Door Lower LH	4G4302276AB Seal Venair Outlet Duct Door Lower LH	-	1	Enquire
1	CG4323936ABW	Trim, Panel Assy Front Door Trim Lower, RH, Standard Leather.	CG4323936ABW Trim, Panel Assy Front Door Trim Lower, RH, Standard Leather.	-	1	Enquire
2	9D3323900AA	Panel, Front Door Trim Upper, RH	9D3323900AA Panel, Front Door Trim Upper, RH	-	1	Enquire
3	CG4323928AAW	Panel Assy Door RH Leather Wrapped Top Roll & Flip Stiched Seam	CG4323928AAW Panel Assy Door RH Leather Wrapped Top Roll & Flip Stiched Seam	-	1	Enquire
4	CG4323864ABW	Insert Assy, Door Trim Panel, RH	CG4323864ABW Insert Assy, Door Trim Panel, RH	-	1	Enquire
5	CG4324070AAW	Pad Assy, Door Arm Rest Upper RH	CG4324070AAW Pad Assy, Door Arm Rest Upper RH	-	1	Enquire
6	4G4324242AFW	Insert Assy, Front Door Armrest, RH	4G4324242AFW Insert Assy, Front Door Armrest, RH	-	1	Enquire
7	4G43237A76AEW	Cap Front Door Trim RH	4G43237A76AEW Cap Front Door Trim RH	-	1	Enquire
8	W705650S424	Screw Pan Head M4 x16 With Washer	W705650S424 Screw Pan Head M4 x16 With Washer	-	1	Enquire
9	4G4323718ABW	POCKET ASSY DOOR RH	4G4323718ABW POCKET ASSY DOOR RH	-	1	Enquire
10	9G4323941AAW	Cover Assy Door Trim Panel RH	9G4323941AAW Cover Assy Door Trim Panel RH B&O	-	1	Enquire
11	9D33C18978AB	Speaker Assy, RH Side Door Top Speaker Grille silver	9D33C18978AB Speaker Assy, RH Side Door Top Speaker Grille silver B&O	-	1	Enquire
12	EG43C18978DA	Speaker Assy, RH Side Door Top Speaker Grille Iridium Silver	EG43C18978DA Speaker Assy, RH Side Door Top Speaker Grille Iridium Silver Alpine	-	1	Enquire
13	W700767S300	Nut, U Type	W700767S300 Nut, U Type	-	3	Enquire
14	AG4320838BA	Retainer, Door Trim Upper	AG4320838BA Retainer, Door Trim Upper 4 Per Upper Trim	-	8	Enquire
15	701655	Rivet, 4.8 x 6.3-12.7	701655 Rivet, 4.8 x 6.3-12.7 2 Per Retainer	-	16	Enquire
16	4G4302275AB	Seal Venair Outlet Duct Door Lower RH	4G4302275AB Seal Venair Outlet Duct Door Lower RH	-	1	Enquire
17	9G43C237898BA	Bezel Door Trim, Iridium Silver	9G43C237898BA Bezel Door Trim, Iridium Silver	-	1	Enquire
18	4G4383000BB	Nut - Speed M5	4G4383000BB Nut - Speed M5	-	12	Enquire
19	707613	SCREW M4.2 X 13 FLANGE BLACK	707613 SCREW M4.2 X 13 FLANGE BLACK	-	10	Enquire
20	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	-	14	Enquire
21	703027	SCREW M4x10 PAN HD TORX S/TAP	703027 SCREW M4x10 PAN HD TORX S/TAP	-	4	Enquire
