Front Lightweight Seat Assembly of Aston Martin Aston Martin DB9 (2013-2016)

View All

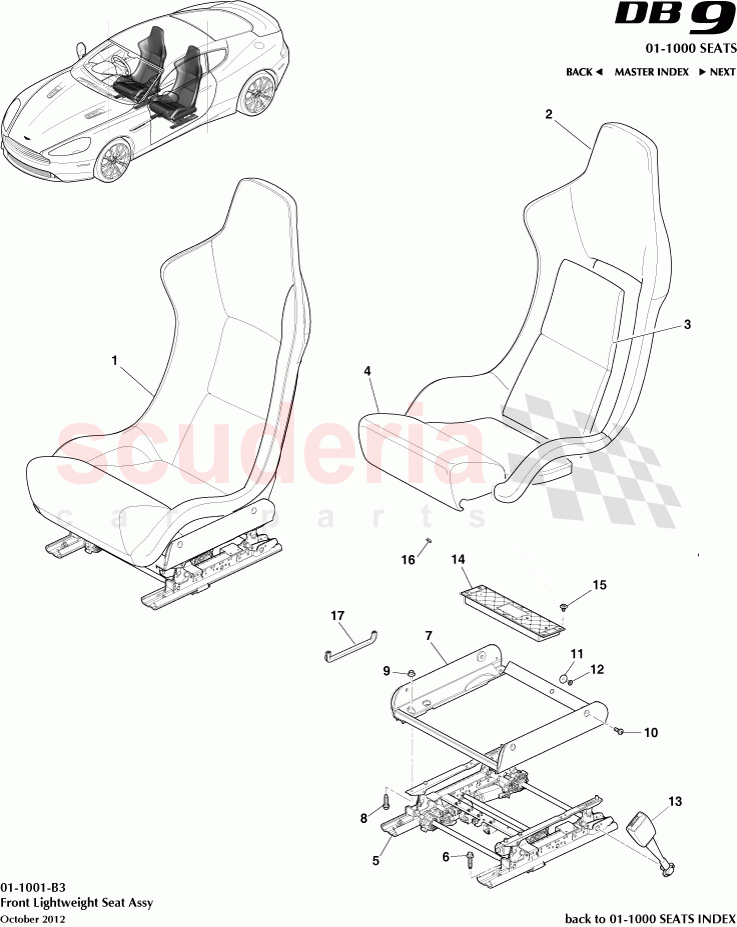

Aston Martin DB9 (2013-2016) - Front Lightweight Seat Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CG4360008BCW	Front Seat Assembly Complete, Trimmed, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4364572BAW	Cover Assembly, Seat Outer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4360136BAW	FRONT SEAT SQUAB RH TRIMMED ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4360050BAW	Cushion assy, Trimmed, Lightweight Seat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437410116	Track Assembly, Front Lightweight Seat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	706423	SCREW-M8 x 25 HF PI	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33617B94AD	Bracket Assembly, Front Seat Adaptor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	W500624S303	Bolt, M8 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701342PK	NUT M8 HEX P/T PLAS8 PACK OF 5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	W505593S307	Screw, M8 x 20, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43613K22BD	Buckle Assembly, Front Seatbelt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	92059	SEAT ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701581PK	FIRTREE-FLAT HEAD (PACK OF 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3360302BB	Clip, Fir Tree, Flat Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3786250	Edge Protection, Switch Harness, 150mm	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CG4360009BCW	Front Seat Assembly Complete, Trimmed, LH	CG4360009BCW Front Seat Assembly Complete, Trimmed, LH	-	1	Enquire
-	CG43600C14AA	Front Seat and Track Assembly, Not Trimmed	CG43600C14AA Front Seat and Track Assembly, Not Trimmed	-	2	Enquire
-	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	7784981PK Tape, Anti Rattle Rear Quarter Wheel Pack of 10	-	A/R	Enquire
1	CG4360008BCW	Front Seat Assembly Complete, Trimmed, RH	CG4360008BCW Front Seat Assembly Complete, Trimmed, RH	-	1	Enquire
2	CG4364572BAW	Cover Assembly, Seat Outer	CG4364572BAW Cover Assembly, Seat Outer	-	2	Enquire
3	CG4360136BAW	FRONT SEAT SQUAB RH TRIMMED ASSY	CG4360136BAW FRONT SEAT SQUAB RH TRIMMED ASSY Includes Foam	-	2	Enquire
4	CG4360050BAW	Cushion assy, Trimmed, Lightweight Seat	CG4360050BAW Cushion assy, Trimmed, Lightweight Seat Includes Foam	-	2	Enquire
5	4G437410116	Track Assembly, Front Lightweight Seat	4G437410116 Track Assembly, Front Lightweight Seat	-	2	Enquire
6	706423	SCREW-M8 x 25 HF PI	706423 SCREW-M8 x 25 HF PI	-	8	Enquire
7	8D33617B94AD	Bracket Assembly, Front Seat Adaptor	8D33617B94AD Bracket Assembly, Front Seat Adaptor	-	2	Enquire
8	W500624S303	Bolt, M8 x 25, Hex Flange Head	W500624S303 Bolt, M8 x 25, Hex Flange Head	-	8	Enquire
9	701342PK	NUT M8 HEX P/T PLAS8 PACK OF 5	701342PK NUT M8 HEX P/T PLAS8 PACK OF 5 Pack of 5	-	8	Enquire
10	W505593S307	Screw, M8 x 20, Pan Head	W505593S307 Screw, M8 x 20, Pan Head	-	8	Enquire
13	4G43613K22BD	Buckle Assembly, Front Seatbelt	4G43613K22BD Buckle Assembly, Front Seatbelt Includes Fixings	-	2	Enquire
14	92059	SEAT ECU	92059 SEAT ECU	-	2	Enquire
15	701581PK	FIRTREE-FLAT HEAD (PACK OF 20)	701581PK FIRTREE-FLAT HEAD (PACK OF 20)	-	8	Enquire
16	8D3360302BB	Clip, Fir Tree, Flat Head	8D3360302BB Clip, Fir Tree, Flat Head	-	6	Enquire
17	3786250	Edge Protection, Switch Harness, 150mm	3786250 Edge Protection, Switch Harness, 150mm	-	2	Enquire
