Name: Reinforcement body
Rating: 4.7 (1 reviews)

View All

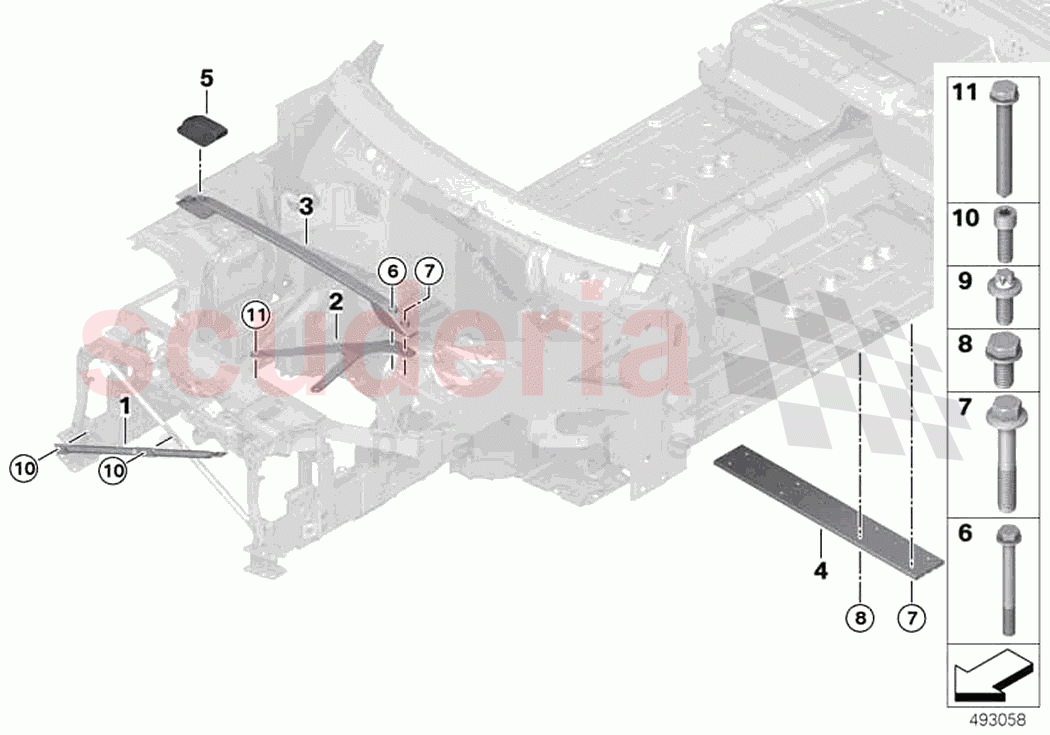

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51647399599	Bracing strut front panel left	$435.60	To Order
	51647399600	Bracing strut front panel right	$435.60	To Order

Photo	Part No	Description	Price (each)	Stock
	51717399359	Strut brace	$1,276.19	To Order

Photo	Part No	Description	Price (each)	Stock
	51717404366	Connecting member, rear tunnel	$458.31	To Order

Photo	Part No	Description	Price (each)	Stock
	51618495152	Trim strut brace	$73.48	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906460	Hex Bolt with washer	$6.30	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906939	Hex Bolt	$4.80	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906010	Hex Bolt	$2.02	To Order

Photo	Part No	Description	Price (each)	Stock
	7119907879	Torx bolt	$1.40	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904477	ISA screw	$4.05	To Order

Photo	Part No	Description	Price (each)	Stock
	7119908592	Hex Bolt with washer	$3.30	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	51647474887	V-strut, left	51647474887 V-strut, left	$155.42	1
1	51647474888	V-strut, right	51647474888 V-strut, right	$152.44	1
2	51647399599	Bracing strut front panel left	51647399599 Bracing strut front panel left	$435.60	1
2	51647399600	Bracing strut front panel right	51647399600 Bracing strut front panel right	$435.60	1
3	51717399359	Strut brace	51717399359 Strut brace	$1,276.19	1
4	51717404366	Connecting member, rear tunnel	51717404366 Connecting member, rear tunnel	$458.31	1
5	51618495152	Trim strut brace	51618495152 Trim strut brace	$73.48	2
6	7119906460	Hex Bolt with washer	7119906460 Hex Bolt with washer M12X1,5X110	$6.30	2
7	7119906939	Hex Bolt	7119906939 Hex Bolt M12X1,5X75	$4.80	2
8	7119906010	Hex Bolt	7119906010 Hex Bolt M10X20- ZNS3	$2.02	4
9	7119907879	Torx bolt	7119907879 Torx bolt M10X25-10.9-ZN	$1.40	4
10	7129904477	ISA screw	7129904477 ISA screw M8X25-10.9-ZNS3	$4.05	5
11	7119908592	Hex Bolt with washer	7119908592 Hex Bolt with washer M10X85-U1-10.9	$3.30	4
