Carrier centre console of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023)

View All

Rolls Royce Phantom Extended RR12(2017-2023) - Carrier centre console

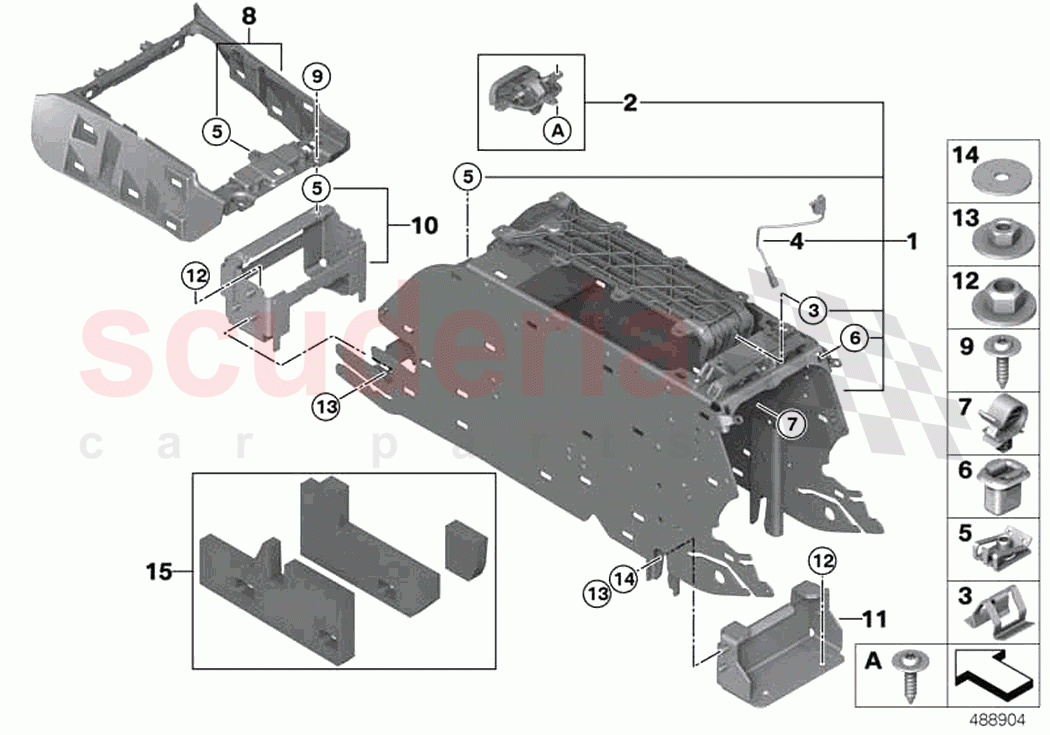

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51169352463	Carrier, centre console	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51167950134	Centre arm rest lock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169484104	Set mounting clips	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51166825782	Microswitch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149319414	C-clip sheet metal nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147326203	Plug-in retainer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12521741316	Tubing support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169364366	Function carrier centre console front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149197038	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169348209	Holder, centre console, front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169348211	Bracket, centre console rear	Enquire	To Order
	51165A01A25	Bracket, centre console rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904870	Hex nut	Enquire	To Order
	7147311066	Hex nut with plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147305178	Combination nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146977329	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169352473	Sound insulation centre console left	Enquire	To Order
	51169352474	Sound insulation centre console right	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	51169352463	Carrier, centre console	51169352463 Carrier, centre console	-	1	Enquire
2	51167950134	Centre arm rest lock	51167950134 Centre arm rest lock	-	1	Enquire
3	51169484104	Set mounting clips	51169484104 Set mounting clips	-	1	Enquire
4	51166825782	Microswitch	51166825782 Microswitch	-	1	Enquire
5	7149319414	C-clip sheet metal nut	7149319414 C-clip sheet metal nut	-	17	Enquire
6	7147326203	Plug-in retainer	7147326203 Plug-in retainer	-	2	Enquire
7	12521741316	Tubing support	12521741316 Tubing support	-	1	Enquire
8	51169364366	Function carrier centre console front	51169364366 Function carrier centre console front	-	1	Enquire
9	7149197038	Fillister head screw	7149197038 Fillister head screw DELTA PT4X16	-	2	Enquire
10	51169348209	Holder, centre console, front	51169348209 Holder, centre console, front	-	1	Enquire
11	51169348211	Bracket, centre console rear	51169348211 Bracket, centre console rear	-	1	Enquire
11	51165A01A25	Bracket, centre console rear	51165A01A25 Bracket, centre console rear	-	1	Enquire
12	7129904870	Hex nut	7129904870 Hex nut BM6-8-ZNS3; from 05.2018	-	6	Enquire
12	7147311066	Hex nut with plate	7147311066 Hex nut with plate M6	-	6	Enquire
13	7147305178	Combination nut	7147305178 Combination nut	-	6	Enquire
14	7146977329	Washer	7146977329 Washer 6,4X25X1,5	-	4	Enquire
15	51169352473	Sound insulation centre console left	51169352473 Sound insulation centre console left	-	1	Enquire
15	51169352474	Sound insulation centre console right	51169352474 Sound insulation centre console right	-	1	Enquire
