Door trim rear of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023)

View All

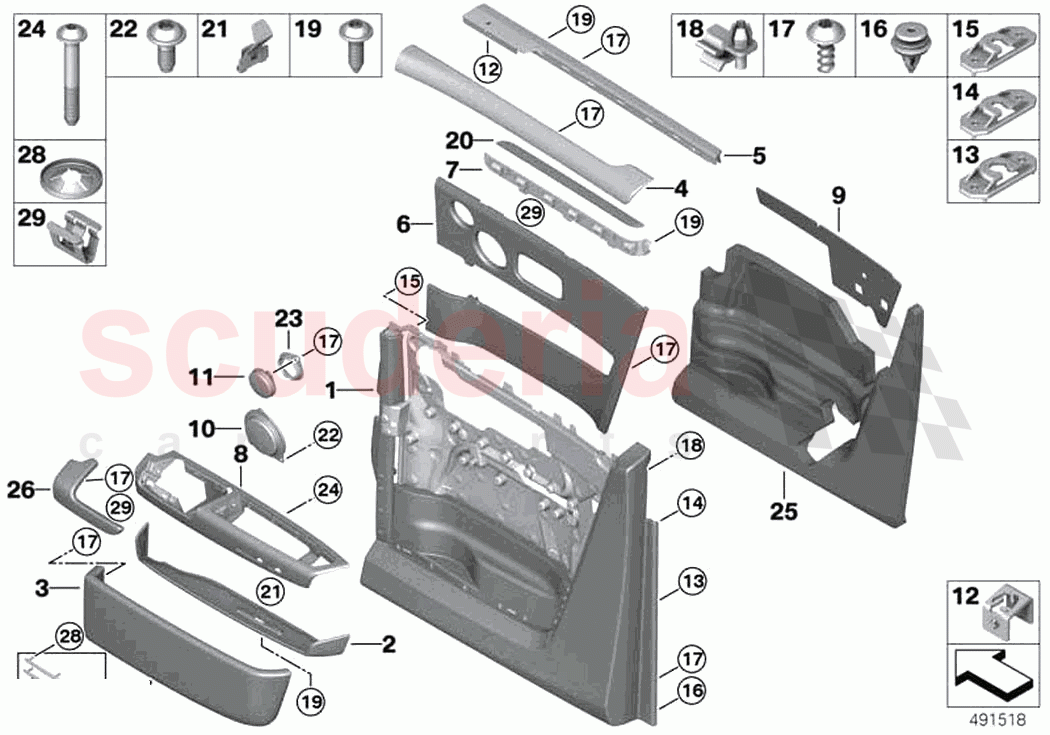

Rolls Royce Phantom Extended RR12(2017-2023) - Door trim rear

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51427437965	Door trim panel, rear left	Enquire	To Order
	51427437966	Door trim panel, rear right	Enquire	To Order
	51429893685	Door trim panel, rear left	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51427437969	Support armrest, rear left	Enquire	To Order
	51427437970	Support armrest, rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51427437975	Map pocket, rear left	Enquire	To Order
	51427437976	Map pocket, rear right	Enquire	To Order
	51429893693	Map pocket, rear left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51427437971	Capping, inner left	Enquire	To Order
	51427437972	Capping, inner right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51427417743	Capping, outer left	Enquire	To Order
	51427417744	Capping, outer right	Enquire	To Order
	51427420053	Capping, outer left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51427437955	Door mirror, leather, left	Enquire	To Order
	51427437956	Door mirror, leather, right	Enquire	To Order
	51427417091	Door mirror, wood, left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51417462819	Handle recess, left	Enquire	To Order
	51417462820	Handle recess, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51427417775	Armrest, rear left	Enquire	To Order
	51427417776	Armrest, rear right	Enquire	To Order
	51407471979	Armrest, rear left	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51428491777	Sound insulating left	Enquire	To Order
	51428491778	Sound insulating right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51409475178	Speaker cover, mid-range speaker	Enquire	To Order
	51469475179	Speaker cover, mid-range speaker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51427416639	Speaker cover, tweeter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51415A56CC9	Door handle pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51419158059	Retainer, A version	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51419158060	Retainer, B version	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51419158061	Retainer, C version	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51418224781	Clip with sealing ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147194471	screw for plastic	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11141717656	Cable holder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51167072159	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51227437291	Insert for handle recess left	Enquire	To Order
	51227437292	Insert for handle recess right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417277443	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147151805	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51427443803	Mounting for tweeter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146979835	Fillister head screw with collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51427443801	Fleece left	Enquire	To Order
	51427443802	Fleece right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51427437059	Armrest, left	Enquire	To Order
	51427437060	Armrest, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417417053	Anti-slip cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64118247773	Lock Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149172157	Clamp	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	51427485555	Spirit of Ecstasy embossed	51427485555 Spirit of Ecstasy embossed	-	1	Enquire
-	51427485556	Spirit of Ecstasy embossed	51427485556 Spirit of Ecstasy embossed	-	1	Enquire
-	51417484277	Pin stripe	51417484277 Pin stripe	-	1	Enquire
-	51417484278	Pin stripe	51417484278 Pin stripe	-	1	Enquire
-	51426843269	Pin stripe	51426843269 Pin stripe	-	1	Enquire
-	51426843270	Pin stripe	51426843270 Pin stripe	-	1	Enquire
1	51427437965	Door trim panel, rear left	51427437965 Door trim panel, rear left QUOTE COLOUR	-	1	Enquire
1	51427437966	Door trim panel, rear right	51427437966 Door trim panel, rear right QUOTE COLOUR	-	1	Enquire
1	51429893685	Door trim panel, rear left	51429893685 Door trim panel, rear left COLOUR NEUTRAL	-	1	Enquire
1	51429893686	Door trim panel, rear right	51429893686 Door trim panel, rear right COLOUR NEUTRAL	-	1	Enquire
1	51429893689	Door trim panel, rear left	51429893689 Door trim panel, rear left COLOUR NEUTRAL	-	1	Enquire
1	51429893690	Door trim panel, rear right	51429893690 Door trim panel, rear right COLOUR NEUTRAL	-	1	Enquire
2	51427437969	Support armrest, rear left	51427437969 Support armrest, rear left QUOTE COLOUR	-	1	Enquire
2	51427437970	Support armrest, rear right	51427437970 Support armrest, rear right QUOTE COLOUR	-	1	Enquire
3	51427437975	Map pocket, rear left	51427437975 Map pocket, rear left QUOTE COLOUR	-	1	Enquire
3	51427437976	Map pocket, rear right	51427437976 Map pocket, rear right QUOTE COLOUR	-	1	Enquire
3	51429893693	Map pocket, rear left	51429893693 Map pocket, rear left COLOUR NEUTRAL	-	1	Enquire
3	51429893694	Map pocket, rear right	51429893694 Map pocket, rear right COLOUR NEUTRAL	-	1	Enquire
4	51427437971	Capping, inner left	51427437971 Capping, inner left QUOTE COLOUR	-	1	Enquire
4	51427437972	Capping, inner right	51427437972 Capping, inner right QUOTE COLOUR	-	1	Enquire
5	51427417743	Capping, outer left	51427417743 Capping, outer left	-	1	Enquire
5	51427417744	Capping, outer right	51427417744 Capping, outer right	-	1	Enquire
5	51427420053	Capping, outer left	51427420053 Capping, outer left	-	1	Enquire
5	51427420054	Capping, outer right	51427420054 Capping, outer right	-	1	Enquire
6	51427437955	Door mirror, leather, left	51427437955 Door mirror, leather, left QUOTE COULOR	-	1	Enquire
6	51427437956	Door mirror, leather, right	51427437956 Door mirror, leather, right QUOTE COULOR	-	1	Enquire
6	51427417091	Door mirror, wood, left	51427417091 Door mirror, wood, left QUOTE VENEER	-	1	Enquire
6	51427417092	Door mirror, wood, right	51427417092 Door mirror, wood, right QUOTE VENEER	-	1	Enquire
7	51417462819	Handle recess, left	51417462819 Handle recess, left	-	1	Enquire
7	51417462820	Handle recess, right	51417462820 Handle recess, right	-	1	Enquire
8	51427417775	Armrest, rear left	51427417775 Armrest, rear left QUOTE VENEER	-	1	Enquire
8	51427417776	Armrest, rear right	51427417776 Armrest, rear right QUOTE VENEER	-	1	Enquire
8	51407471979	Armrest, rear left	51407471979 Armrest, rear left QUOTE COLOUR	-	1	Enquire
8	51427471980	Armrest, rear right	51427471980 Armrest, rear right QUOTE COLOUR	-	1	Enquire
8	51427437981	Armrest, rear left	51427437981 Armrest, rear left QUOTE COLOUR	-	1	Enquire
8	51427437982	Armrest, rear right	51427437982 Armrest, rear right QUOTE COLOUR	-	1	Enquire
8	51427470731	Armrest, rear left	51427470731 Armrest, rear left QUOTE VENEER	-	1	Enquire
8	51427470732	Armrest, rear left	51427470732 Armrest, rear left QUOTE VENEER	-	1	Enquire
9	51428491777	Sound insulating left	51428491777 Sound insulating left	-	1	Enquire
9	51428491778	Sound insulating right	51428491778 Sound insulating right	-	1	Enquire
10	51409475178	Speaker cover, mid-range speaker	51409475178 Speaker cover, mid-range speaker	-	2	Enquire
10	51469475179	Speaker cover, mid-range speaker	51469475179 Speaker cover, mid-range speaker	-	2	Enquire
11	51427416639	Speaker cover, tweeter	51427416639 Speaker cover, tweeter	-	2	Enquire
12	51415A56CC9	Door handle pin	51415A56CC9 Door handle pin	-	2	Enquire
13	51419158059	Retainer, A version	51419158059 Retainer, A version	-	16	Enquire
14	51419158060	Retainer, B version	51419158060 Retainer, B version	-	2	Enquire
15	51419158061	Retainer, C version	51419158061 Retainer, C version	-	2	Enquire
16	51418224781	Clip with sealing ring	51418224781 Clip with sealing ring GRAU	-	20	Enquire
17	7147194471	screw for plastic	7147194471 screw for plastic TS5X12-ZNS3	-	-	Enquire
18	11141717656	Cable holder	11141717656 Cable holder	-	2	Enquire
19	51167072159	Fillister head screw	51167072159 Fillister head screw ISA 4X14MM	-	-	Enquire
20	51227437291	Insert for handle recess left	51227437291 Insert for handle recess left COLOUR NEUTRAL	-	1	Enquire
20	51227437292	Insert for handle recess right	51227437292 Insert for handle recess right COLOUR NEUTRAL	-	1	Enquire
21	51417277443	Clamp	51417277443 Clamp	-	-	Enquire
22	7147151805	Fillister head screw	7147151805 Fillister head screw	-	3	Enquire
23	51427443803	Mounting for tweeter	51427443803 Mounting for tweeter	-	2	Enquire
24	7146979835	Fillister head screw with collar	7146979835 Fillister head screw with collar ISA 35X5	-	1	Enquire
25	51427443801	Fleece left	51427443801 Fleece left	-	1	Enquire
25	51427443802	Fleece right	51427443802 Fleece right	-	1	Enquire
26	51427437059	Armrest, left	51427437059 Armrest, left QUOTE COLOUR	-	1	Enquire
26	51427437060	Armrest, right	51427437060 Armrest, right QUOTE COLOUR	-	1	Enquire
27	51417417053	Anti-slip cover	51417417053 Anti-slip cover CHROME	-	6	Enquire
28	64118247773	Lock Ring	64118247773 Lock Ring	-	18	Enquire
29	7149172157	Clamp	7149172157 Clamp	-	-	Enquire
