Centre Console Rear Cabin

Rolls Royce Phantom Extended RR12(2017-2023)

Find Your Part

Rolls Royce Phantom Extended RR12(2017-2023) - Centre console rear cabin

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
51169384334 Rear console support Enquire To Order
Photo Part No Description Price (each) Stock
51167950134 Centre arm rest lock Enquire To Order
Photo Part No Description Price (each) Stock
51166825782 Microswitch Enquire To Order
Photo Part No Description Price (each) Stock
51169384969 Cover armrest rear console rear Enquire To Order
Photo Part No Description Price (each) Stock
51169384347 Holder rear console rear Enquire To Order
Photo Part No Description Price (each) Stock
7119907474 Hex Bolt Enquire To Order
Photo Part No Description Price (each) Stock
7119904124 Hex Bolt Enquire To Order
Photo Part No Description Price (each) Stock
7129904870 Hex nut Enquire To Order
Photo Part No Description Price (each) Stock
7149319414 C-clip sheet metal nut Enquire To Order
Photo Part No Description Price (each) Stock
51169387628 Rear console support top Enquire To Order
Photo Part No Description Price (each) Stock
51166805359 Cover armrest rear console top Enquire To Order
Photo Part No Description Price (each) Stock
51211970863 Stop buffer Enquire To Order
Photo Part No Description Price (each) Stock
51166826948 Striker rear console top Enquire To Order
Photo Part No Description Price (each) Stock
7147156542 Fillister head screw Enquire To Order
Photo Part No Description Price (each) Stock
51169384348 Holder rear console top Enquire To Order
Photo Part No Description Price (each) Stock
7119904024 Hex nut Enquire To Order
Photo Part No Description Price (each) Stock
51166826111 Holder, cooler box Enquire To Order
Photo Part No Description Price (each) Stock
7129905095 Hex nut Enquire To Order
Photo Part No Description Price (each) Stock
13328506195 Rivet pin Enquire To Order
Photo Part No Description Price (each) Stock
7129907548 Fillister head screw Enquire To Order
View All

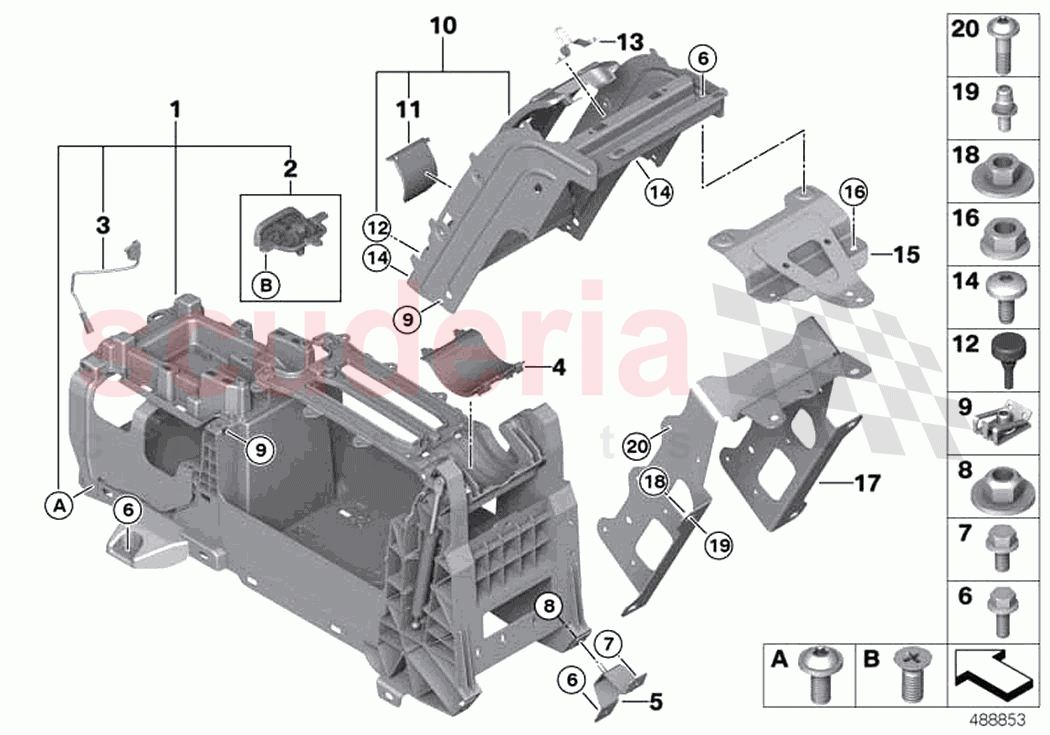

Centre console rear cabin of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 51169384334
Rear console support 		- 1 Enquire
2 51167950134
Centre arm rest lock 		- 1 Enquire
3 51166825782
Microswitch 		- 1 Enquire
4 51169384969
Cover armrest rear console rear 		- 1 Enquire
5 51169384347
Holder rear console rear 		- 2 Enquire
6 7119907474
Hex Bolt
M6X16 		- 6 Enquire
7 7119904124
Hex Bolt
M8X16-8.8-ZNS3 		- 2 Enquire
8 7129904870
Hex nut
BM6-8-ZNS3 		- 2 Enquire
9 7149319414
C-clip sheet metal nut 		- 10 Enquire
10 51169387628
Rear console support top 		- 1 Enquire
11 51166805359
Cover armrest rear console top 		- 1 Enquire
12 51211970863
Stop buffer
BLACK 		- 2 Enquire
13 51166826948
Striker rear console top 		- 1 Enquire
14 7147156542
Fillister head screw
ISA M6X14 MK 		- 6 Enquire
15 51169384348
Holder rear console top 		- 1 Enquire
16 7119904024
Hex nut
M8-ZNS3 		- 3 Enquire
17 51166826111
Holder, cooler box 		- 1 Enquire
18 7129905095
Hex nut
BM8-8-ZNS3 		- 4 Enquire
19 13328506195
Rivet pin
M8X14,1 		- 4 Enquire
20 7129907548
Fillister head screw
M5X18-A2-70 		- 12 Enquire
