Air ducts of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023)

View All

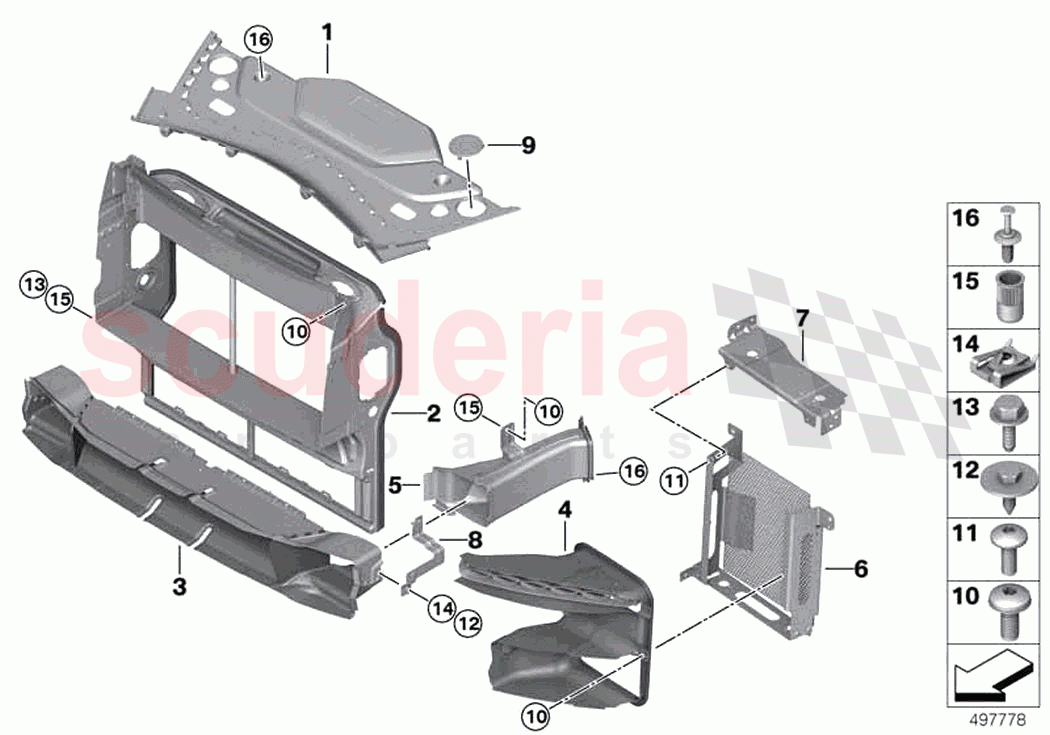

Rolls Royce Phantom Extended RR12(2017-2023) - Air ducts

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51237416325	Cover, engine compartment front	$732.62	To Order

Photo	Part No	Description	Price (each)	Stock
	51137413427	Air duct, radiator, top	$1,266.69	To Order

Photo	Part No	Description	Price (each)	Stock
	51137413397	Air duct, bottom	$800.31	To Order

Photo	Part No	Description	Price (each)	Stock
	51747486179	Air duct displaced radiator left	$572.92	To Order
	51747486180	Air duct displaced radiator right	$572.92	To Order

Photo	Part No	Description	Price (each)	Stock
	51137413435	Front left brake air duct	$197.88	To Order
	51137413436	Front right brake air duct	$197.88	To Order

Photo	Part No	Description	Price (each)	Stock
	51117495681	Frame left	$481.58	To Order
	51117495682	Frame right	$496.51	To Order
	51117491709	Frame left	$481.58	To Order

Photo	Part No	Description	Price (each)	Stock
	41007953995	Bracket Upper Right	$195.47	To Order
	41007953996	Bracket Upper Right	$244.50	To Order

Photo	Part No	Description	Price (each)	Stock
	51137414885	Bracket, left	$37.14	To Order
	51137414886	Bracket, right	$37.14	To Order

Photo	Part No	Description	Price (each)	Stock
	51767243147	Cover	$140.09	To Order

Photo	Part No	Description	Price (each)	Stock
	7147197262	Fillister head screw	$2.28	To Order

Photo	Part No	Description	Price (each)	Stock
	7142994134	Fillister head screw	$2.34	To Order

Photo	Part No	Description	Price (each)	Stock
	7149126886	Hex Bolt	$1.14	To Order

Photo	Part No	Description	Price (each)	Stock
	7147118369	Fillister head screw	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	51717065773	C-clip nut	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	7146953045	Blind rivet nut, countersunk head	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	51111908077	Expanding rivet	$0.48	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	51237416325	Cover, engine compartment front	51237416325 Cover, engine compartment front	$732.62	1
2	51137413427	Air duct, radiator, top	51137413427 Air duct, radiator, top	$1,266.69	1
3	51137413397	Air duct, bottom	51137413397 Air duct, bottom	$800.31	1
4	51747486179	Air duct displaced radiator left	51747486179 Air duct displaced radiator left	$572.92	1
4	51747486180	Air duct displaced radiator right	51747486180 Air duct displaced radiator right	$572.92	1
5	51137413435	Front left brake air duct	51137413435 Front left brake air duct	$197.88	1
5	51137413436	Front right brake air duct	51137413436 Front right brake air duct	$197.88	1
6	51117495681	Frame left	51117495681 Frame left	$481.58	1
6	51117495682	Frame right	51117495682 Frame right	$496.51	1
6	51117491709	Frame left	51117491709 Frame left	$481.58	1
7	41007953995	Bracket Upper Right	41007953995 Bracket Upper Right	$195.47	1
7	41007953996	Bracket Upper Right	41007953996 Bracket Upper Right	$244.50	1
8	51137414885	Bracket, left	51137414885 Bracket, left	$37.14	1
8	51137414886	Bracket, right	51137414886 Bracket, right	$37.14	1
9	51767243147	Cover	51767243147 Cover	$140.09	2
10	7147197262	Fillister head screw	7147197262 Fillister head screw	$2.28	-
11	7142994134	Fillister head screw	7142994134 Fillister head screw	$2.34	-
12	7149126886	Hex Bolt	7149126886 Hex Bolt TS5X17 SW8 D=22	$1.14	-
13	7147118369	Fillister head screw	7147118369 Fillister head screw	$1.11	-
14	51717065773	C-clip nut	51717065773 C-clip nut	$1.05	-
15	7146953045	Blind rivet nut, countersunk head	7146953045 Blind rivet nut, countersunk head M6	$2.39	-
16	51111908077	Expanding rivet	51111908077 Expanding rivet D = 6MM	$0.48	-
