Rolls Royce Phantom Extended RR12(2017-2023) - Carrier instrument panel

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
51459349959 Supporting tube, instrument panel Enquire To Order
51459349960 Supporting tube, instrument panel Enquire To Order
Photo Part No Description Price (each) Stock
7149391156 Compensating element Enquire To Order
Photo Part No Description Price (each) Stock
7149321593 Compensating element Enquire To Order
Photo Part No Description Price (each) Stock
7149496754 C-clip sheet metal nut Enquire To Order
Photo Part No Description Price (each) Stock
7147209624 Rivet pin Enquire To Order
Photo Part No Description Price (each) Stock
13328506195 Rivet pin Enquire To Order
Photo Part No Description Price (each) Stock
7149314239 Double bolt Torx-Plus, thread-forming Enquire To Order
Photo Part No Description Price (each) Stock
7149321590 Clip for screw cap Enquire To Order
Photo Part No Description Price (each) Stock
7149197038 Fillister head screw Enquire To Order
Photo Part No Description Price (each) Stock
7149390155 Hex Bolt with washer Enquire To Order
Photo Part No Description Price (each) Stock
61139306505 Holder Enquire To Order
Photo Part No Description Price (each) Stock
7129903749 ISA screw Enquire To Order
Photo Part No Description Price (each) Stock
51452353024 Set felt strip adhesive Enquire To Order
Photo Part No Description Price (each) Stock
7149117829 Self-locking hex nut Enquire To Order
Photo Part No Description Price (each) Stock
7143428484 Hex Bolt with washer Enquire To Order
Photo Part No Description Price (each) Stock
6846839060 Hexagon screw with flange Enquire To Order
Photo Part No Description Price (each) Stock
51459349961 Holder for tunnel support left Enquire To Order
51459349962 Holder for tunnel support right Enquire To Order
Photo Part No Description Price (each) Stock
7149200945 Hex nut with plate Enquire To Order
View All

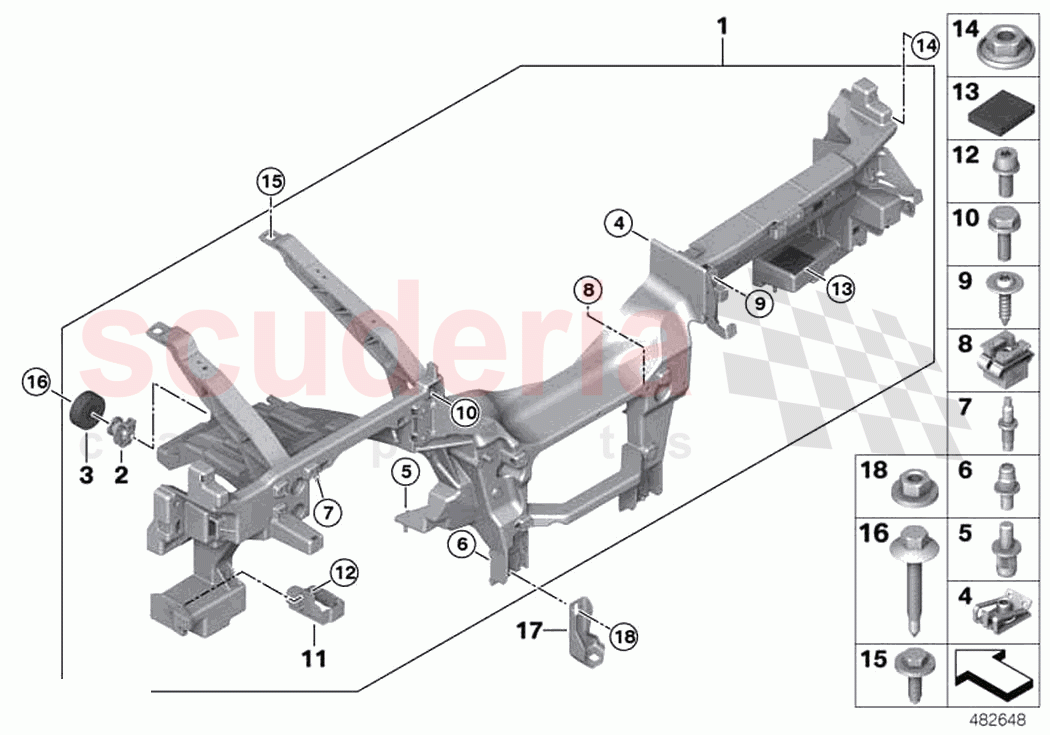

Carrier instrument panel of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 51459349959
Supporting tube, instrument panel 		- 1 Enquire
1 51459349960
Supporting tube, instrument panel 		- 1 Enquire
2 7149391156
Compensating element 		- 1 Enquire
3 7149321593
Compensating element 		- 1 Enquire
4 7149496754
C-clip sheet metal nut 		- 28 Enquire
5 7147209624
Rivet pin
M6X13,5 		- 4 Enquire
6 13328506195
Rivet pin
M8X14,1 		- 2 Enquire
7 7149314239
Double bolt Torx-Plus, thread-forming 		- 4 Enquire
8 7149321590
Clip for screw cap 		- 4 Enquire
9 7149197038
Fillister head screw
DELTA PT4X16 		- 8 Enquire
10 7149390155
Hex Bolt with washer
M8X28-10.9-ZNS3 		- 4 Enquire
11 61139306505
Holder 		- 1 Enquire
12 7129903749
ISA screw
M6X16MM 		- 1 Enquire
13 51452353024
Set felt strip adhesive 		- - Enquire
14 7149117829
Self-locking hex nut
M8 		- 4 Enquire
15 7143428484
Hex Bolt with washer
M8X30 		- 2 Enquire
16 6846839060
Hexagon screw with flange
M8X86 		- 1 Enquire
17 51459349961
Holder for tunnel support left 		- 1 Enquire
17 51459349962
Holder for tunnel support right 		- 1 Enquire
18 7149200945
Hex nut with plate
M8 		- 4 Enquire
