Rolls Royce Phantom Extended RR12(2017-2023) - Support front

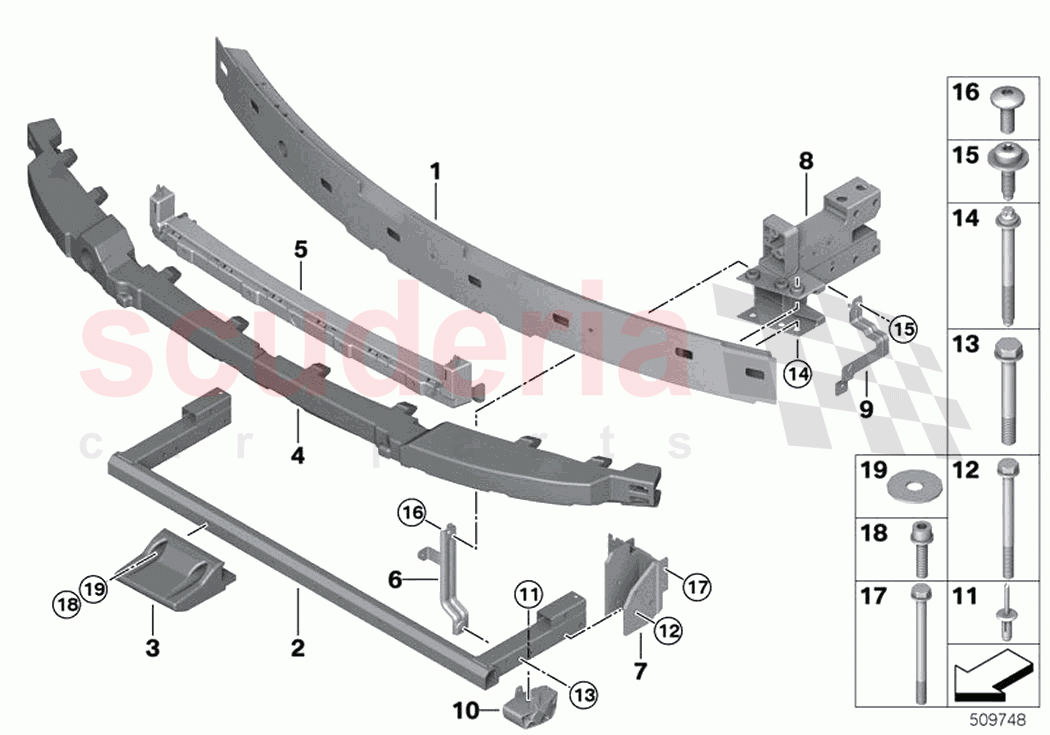

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51117413175	Cross member Bumper, front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51117413214	Carrier, bumper front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137494237	Impact absorber, bottom	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51117413168	Impact absorber, top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51117413169	Carrier, bumper, front bottom	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51117413179	Vertical connection, left	Enquire	To Order
	51117413180	Vertical connection, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51117413187	Adapter plate, left	Enquire	To Order
	51117413188	Adapter plate, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41007413171	Crash box, left	Enquire	To Order
	41007413172	Crash box, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137414885	Bracket, left	Enquire	To Order
	51137414886	Bracket, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51117497123	Damper, kerb descent	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147234212	Blind rivet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906675	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905848	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119908677	Torx-bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119907285	Torx-bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7142994134	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905696	Hexagon screw M8x100-8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905747	Isa screw with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147117990	Washer	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	51117413175	Cross member Bumper, front	51117413175 Cross member Bumper, front	-	1	Enquire
2	51117413214	Carrier, bumper front	51117413214 Carrier, bumper front	-	1	Enquire
3	51137494237	Impact absorber, bottom	51137494237 Impact absorber, bottom	-	2	Enquire
4	51117413168	Impact absorber, top	51117413168 Impact absorber, top	-	1	Enquire
5	51117413169	Carrier, bumper, front bottom	51117413169 Carrier, bumper, front bottom	-	1	Enquire
6	51117413179	Vertical connection, left	51117413179 Vertical connection, left	-	1	Enquire
6	51117413180	Vertical connection, right	51117413180 Vertical connection, right	-	1	Enquire
7	51117413187	Adapter plate, left	51117413187 Adapter plate, left	-	1	Enquire
7	51117413188	Adapter plate, right	51117413188 Adapter plate, right	-	1	Enquire
8	41007413171	Crash box, left	41007413171 Crash box, left	-	1	Enquire
8	41007413172	Crash box, right	41007413172 Crash box, right	-	1	Enquire
9	51137414885	Bracket, left	51137414885 Bracket, left	-	1	Enquire
9	51137414886	Bracket, right	51137414886 Bracket, right	-	1	Enquire
10	51117497123	Damper, kerb descent	51117497123 Damper, kerb descent	-	2	Enquire
11	7147234212	Blind rivet	7147234212 Blind rivet	-	2	Enquire
12	7119906675	Hex Bolt with washer	7119906675 Hex Bolt with washer M8X70-Z1-ZNS3	-	6	Enquire
13	7119905848	Hex Bolt	7119905848 Hex Bolt M8X60	-	6	Enquire
14	7119908677	Torx-bolt with washer	7119908677 Torx-bolt with washer M12X1,5X115	-	6	Enquire
15	7119907285	Torx-bolt with washer	7119907285 Torx-bolt with washer ISA M6X20	-	3	Enquire
16	7142994134	Fillister head screw	7142994134 Fillister head screw	-	2	Enquire
17	7119905696	Hexagon screw M8x100-8.8	7119905696 Hexagon screw M8x100-8.8	-	4	Enquire
18	7129905747	Isa screw with washer	7129905747 Isa screw with washer M6X25-U1	-	8	Enquire
19	7147117990	Washer	7147117990 Washer D=20, H=1	-	8	Enquire
