Name: Storage compartment centre console
Rating: 5.0 (1 reviews)

View All

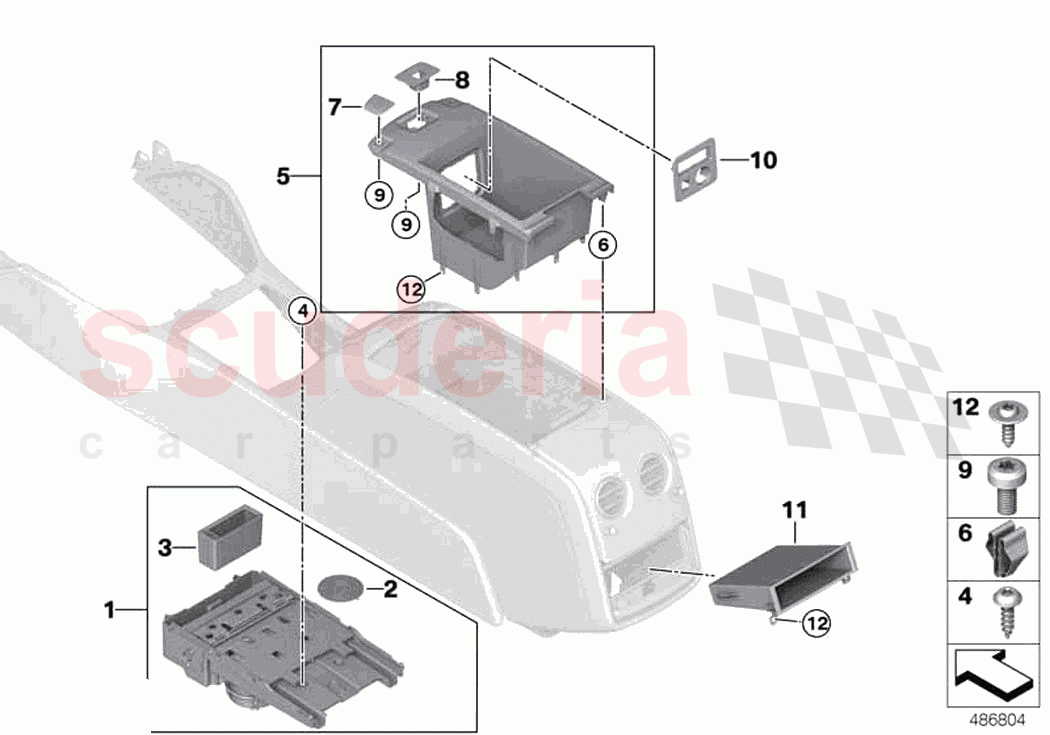

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51169364707	Storage comp., cupholder, centre console	$2,837.59	To Order
	51169348206	Storage comp., cupholder, centre console	$2,837.59	To Order

Photo	Part No	Description	Price (each)	Stock
	51167950139	Rubber mat, cupholder	$42.85	To Order

Photo	Part No	Description	Price (each)	Stock
	51167950138	Ashtray insert	$247.10	To Order

Photo	Part No	Description	Price (each)	Stock
	51417067920	Fillister head screw	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	51169392725	Oddments tray, centre armrest	$1,617.40	To Order
	51166846137	Oddments tray, centre armrest	$1,672.66	To Order

Photo	Part No	Description	Price (each)	Stock
	7147321144	Clamp	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	51166835270	Trim, storage compartment, right	$93.71	To Order
	51166835271	Trim, storage compartment, left	$93.71	To Order

Photo	Part No	Description	Price (each)	Stock
	51169121392	Cover, catch bracket	$156.99	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906106	Screw pan	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	51169387447	Trim, storage compartment	$85.07	To Order

Photo	Part No	Description	Price (each)	Stock
	7149200941	Oval-head screw with washer	$0.66	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	51169364707	Storage comp., cupholder, centre console	51169364707 Storage comp., cupholder, centre console	$2,837.59	1
1	51169348206	Storage comp., cupholder, centre console	51169348206 Storage comp., cupholder, centre console	$2,837.59	1
2	51167950139	Rubber mat, cupholder	51167950139 Rubber mat, cupholder	$42.85	2
3	51167950138	Ashtray insert	51167950138 Ashtray insert	$247.10	1
4	51417067920	Fillister head screw	51417067920 Fillister head screw TS 5X16	$0.65	2
5	51169392725	Oddments tray, centre armrest	51169392725 Oddments tray, centre armrest COLOUR NEUTRAL	$1,617.40	1
5	51166846137	Oddments tray, centre armrest	51166846137 Oddments tray, centre armrest COLOUR NEUTRAL	$1,672.66	1
6	7147321144	Clamp	7147321144 Clamp	$1.03	5
7	51166835270	Trim, storage compartment, right	51166835270 Trim, storage compartment, right	$93.71	1
7	51166835271	Trim, storage compartment, left	51166835271 Trim, storage compartment, left	$93.71	1
8	51169121392	Cover, catch bracket	51169121392 Cover, catch bracket	$156.99	1
9	7119906106	Screw pan	7119906106 Screw pan M4X8-8.8-ZNNIV	$1.51	4
10	51169387447	Trim, storage compartment	51169387447 Trim, storage compartment	$85.07	1
12	7149200941	Oval-head screw with washer	7149200941 Oval-head screw with washer DELTA PT4X12	$0.66	8
