Trims and seals door front of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023)

View All

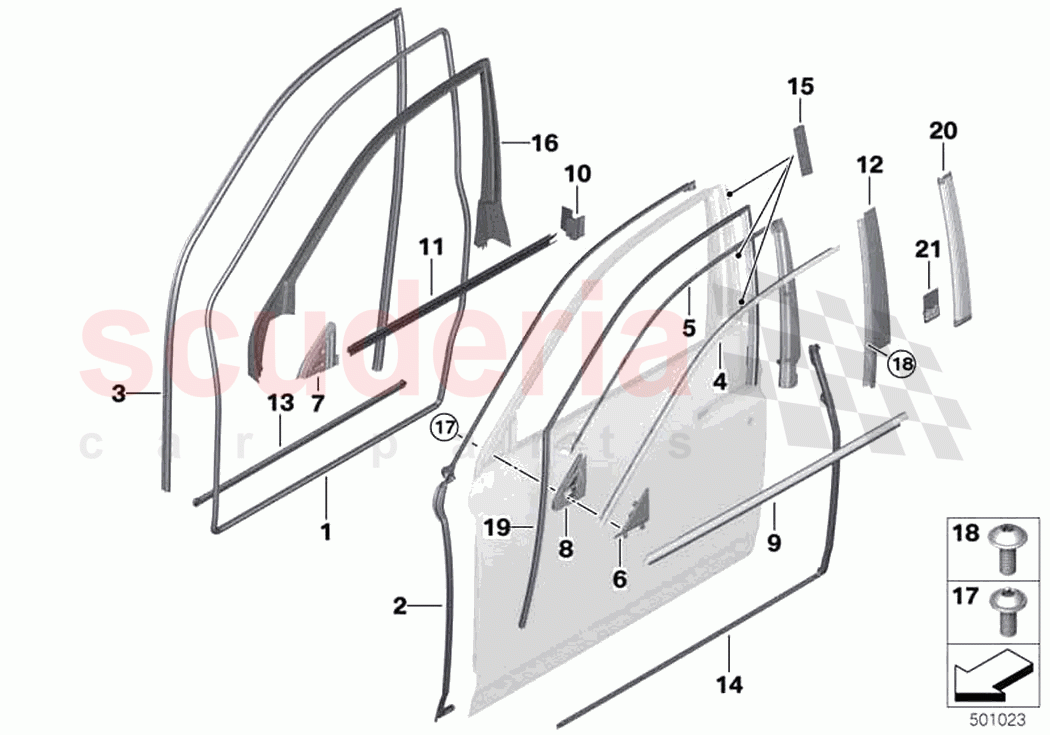

Rolls Royce Phantom Extended RR12(2017-2023) - Trims and seals door front

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51767413599	Door sealing front left	Enquire	To Order
	51767413600	Door sealing front right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51215A06511	Sealing of door gap front left	Enquire	To Order
	51215A06512	Sealing of door gap front right	Enquire	To Order
	51217413645	Sealing of door gap front left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51727413619	Edge protection, front left	Enquire	To Order
	51727413620	Edge protection, front right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51357413603	Trim, window frame, door, front top left	Enquire	To Order
	51357413604	Trim, window frame,door,front, top right	Enquire	To Order
	51355A01561	Trim, window frame, door, front top left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51357413633	Sealing side frame left	Enquire	To Order
	51357413634	Sealing side frame right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51337413629	Cover, column A left	Enquire	To Order
	51337413630	Cover, column A right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51337434213	Seal, A-pillar, left	Enquire	To Order
	51337434214	Seal, A-pillar, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51217413595	Seal, A-pillar, left	Enquire	To Order
	51217413596	Seal, A-pillar, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51357419829	Channel cover,exterior,door, front left	Enquire	To Order
	51357419830	shaft cover outer front door right	Enquire	To Order
	51357932383	Channel cover,exterior,door, front left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51337434215	Sealing of holder B-pillar left	Enquire	To Order
	51337434216	Seal holder B-pillar right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51337413647	Channel sealing,inside,door, front left	Enquire	To Order
	51337413648	Channel sealing,inside,door, front right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51337413631	Cover, column B, door, front left	Enquire	To Order
	51337413632	Cover, column B, door, front right	Enquire	To Order
	51335A01563	Cover, column B, door, front left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51217413643	Gasket,door joint, door frnt bttm l.	Enquire	To Order
	51217413644	Gasket,door joint, door frnt bttm r.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51217413601	Sealing of door gap front left	Enquire	To Order
	51217413602	Sealing of door gap front right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137484115	Edge protection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51337416649	Cover, window frame, door front left	Enquire	To Order
	51337416650	Cover, window frame, front right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129907271	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149195268	Fillister head screw with collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51339450017	Front left window guide	Enquire	To Order
	51339450018	Front right window guide	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51335A01565	Trim, B-pillar, middle left	Enquire	To Order
	51335A01566	Trim, B-pillar, middle right	Enquire	To Order
	51139464017	Trim, B-pillar, middle left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51137181821	Column B cover bracket	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	51139465555	Bracket B-pillar trim panel left	51139465555 Bracket B-pillar trim panel left	-	1	Enquire
-	7149909439	Torx-countersunk screw	7149909439 Torx-countersunk screw 3,5X12-F-A2-70	-	2	Enquire
-	7130601661	Expanding nut	7130601661 Expanding nut D=6,7MM	-	2	Enquire
-	7129907533	Screw	7129907533 Screw TS4X10MM	-	2	Enquire
1	51767413599	Door sealing front left	51767413599 Door sealing front left	-	1	Enquire
1	51767413600	Door sealing front right	51767413600 Door sealing front right	-	1	Enquire
2	51215A06511	Sealing of door gap front left	51215A06511 Sealing of door gap front left from 09.2018	-	1	Enquire
2	51215A06512	Sealing of door gap front right	51215A06512 Sealing of door gap front right from 09.2018	-	1	Enquire
2	51217413645	Sealing of door gap front left	51217413645 Sealing of door gap front left to 09.2018	-	1	Enquire
2	51217413646	Sealing of door gap front right	51217413646 Sealing of door gap front right to 09.2018	-	1	Enquire
3	51727413619	Edge protection, front left	51727413619 Edge protection, front left	-	1	Enquire
3	51727413620	Edge protection, front right	51727413620 Edge protection, front right	-	1	Enquire
4	51357413603	Trim, window frame, door, front top left	51357413603 Trim, window frame, door, front top left	-	1	Enquire
4	51357413604	Trim, window frame,door,front, top right	51357413604 Trim, window frame,door,front, top right	-	1	Enquire
4	51355A01561	Trim, window frame, door, front top left	51355A01561 Trim, window frame, door, front top left BLACK BADGE	-	1	Enquire
4	51355A01562	Trim, window frame,door,front, top right	51355A01562 Trim, window frame,door,front, top right BLACK BADGE	-	1	Enquire
5	51357413633	Sealing side frame left	51357413633 Sealing side frame left	-	1	Enquire
5	51357413634	Sealing side frame right	51357413634 Sealing side frame right	-	1	Enquire
6	51337413629	Cover, column A left	51337413629 Cover, column A left	-	1	Enquire
6	51337413630	Cover, column A right	51337413630 Cover, column A right	-	1	Enquire
7	51337434213	Seal, A-pillar, left	51337434213 Seal, A-pillar, left	-	1	Enquire
7	51337434214	Seal, A-pillar, right	51337434214 Seal, A-pillar, right	-	1	Enquire
8	51217413595	Seal, A-pillar, left	51217413595 Seal, A-pillar, left	-	1	Enquire
8	51217413596	Seal, A-pillar, right	51217413596 Seal, A-pillar, right	-	1	Enquire
9	51357419829	Channel cover,exterior,door, front left	51357419829 Channel cover,exterior,door, front left from 01.2018	-	1	Enquire
9	51357419830	shaft cover outer front door right	51357419830 shaft cover outer front door right from 01.2018	-	1	Enquire
9	51357932383	Channel cover,exterior,door, front left	51357932383 Channel cover,exterior,door, front left	-	1	Enquire
9	51357932384	shaft cover outer front door right	51357932384 shaft cover outer front door right	-	1	Enquire
10	51337434215	Sealing of holder B-pillar left	51337434215 Sealing of holder B-pillar left	-	1	Enquire
10	51337434216	Seal holder B-pillar right	51337434216 Seal holder B-pillar right	-	1	Enquire
11	51337413647	Channel sealing,inside,door, front left	51337413647 Channel sealing,inside,door, front left	-	1	Enquire
11	51337413648	Channel sealing,inside,door, front right	51337413648 Channel sealing,inside,door, front right	-	1	Enquire
12	51337413631	Cover, column B, door, front left	51337413631 Cover, column B, door, front left	-	1	Enquire
12	51337413632	Cover, column B, door, front right	51337413632 Cover, column B, door, front right	-	1	Enquire
12	51335A01563	Cover, column B, door, front left	51335A01563 Cover, column B, door, front left BLACK BADGE	-	1	Enquire
12	51335A01564	Cover, column B, door, front right	51335A01564 Cover, column B, door, front right BLACK BADGE	-	1	Enquire
13	51217413643	Gasket,door joint, door frnt bttm l.	51217413643 Gasket,door joint, door frnt bttm l.	-	1	Enquire
13	51217413644	Gasket,door joint, door frnt bttm r.	51217413644 Gasket,door joint, door frnt bttm r.	-	1	Enquire
14	51217413601	Sealing of door gap front left	51217413601 Sealing of door gap front left	-	1	Enquire
14	51217413602	Sealing of door gap front right	51217413602 Sealing of door gap front right	-	1	Enquire
15	51137484115	Edge protection	51137484115 Edge protection	-	18	Enquire
16	51337416649	Cover, window frame, door front left	51337416649 Cover, window frame, door front left	-	1	Enquire
16	51337416650	Cover, window frame, front right	51337416650 Cover, window frame, front right	-	1	Enquire
17	7129907271	Fillister head screw	7129907271 Fillister head screw M4X10-8.8-ZNNIV	-	1	Enquire
18	7149195268	Fillister head screw with collar	7149195268 Fillister head screw with collar	-	1	Enquire
19	51339450017	Front left window guide	51339450017 Front left window guide	-	1	Enquire
19	51339450018	Front right window guide	51339450018 Front right window guide	-	1	Enquire
20	51335A01565	Trim, B-pillar, middle left	51335A01565 Trim, B-pillar, middle left BLACK BADGE	-	1	Enquire
20	51335A01566	Trim, B-pillar, middle right	51335A01566 Trim, B-pillar, middle right BLACK BADGE	-	1	Enquire
20	51139464017	Trim, B-pillar, middle left	51139464017 Trim, B-pillar, middle left	-	1	Enquire
20	51139464018	Trim, B-pillar, middle right	51139464018 Trim, B-pillar, middle right	-	1	Enquire
21	51137181821	Column B cover bracket	51137181821 Column B cover bracket	-	2	Enquire
