Wheelarch trim of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023)

View All

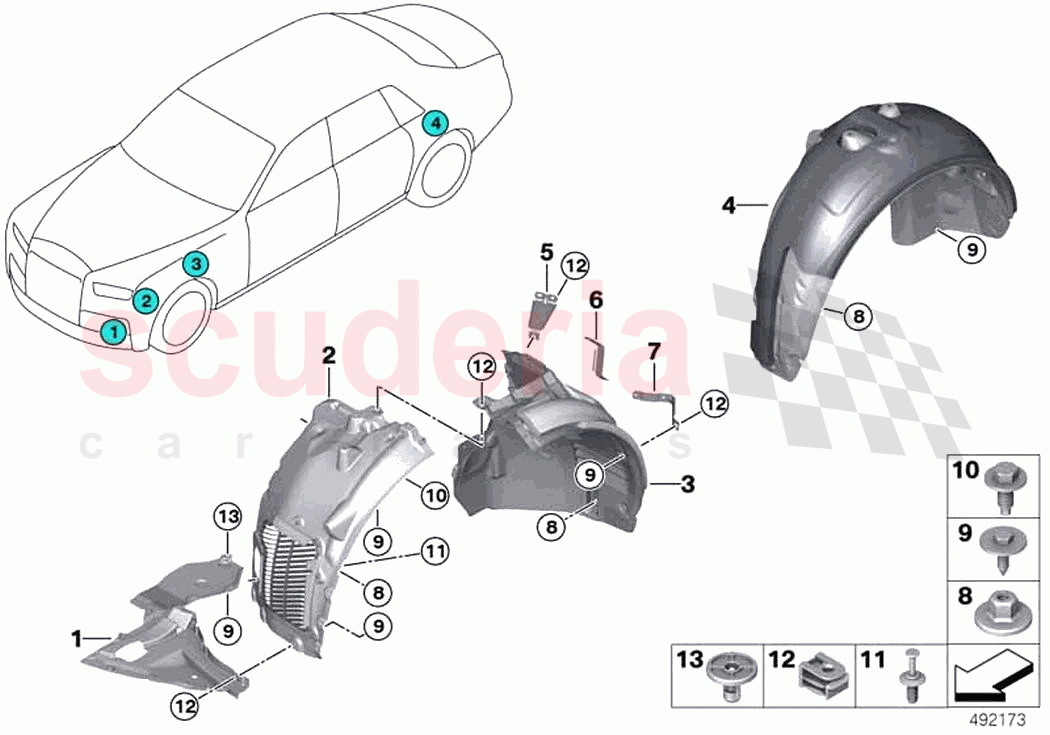

Rolls Royce Phantom Extended RR12(2017-2023) - Wheelarch trim

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51757409817	Cover, bottom left	$259.59	To Order
	51757409818	Cover, bottom right	$259.59	To Order

Photo	Part No	Description	Price (each)	Stock
	51717409793	Cover,wheel arch,frontsection,front left	$1,245.26	To Order
	51717409794	Cover,wheel arch,frontsection,frontright	$1,245.26	To Order

Photo	Part No	Description	Price (each)	Stock
	51717409795	Cover,wheel arch,rear section,front left	$778.81	To Order
	51717409796	Cover,wheel arch,rearsection,front right	$778.81	To Order

Photo	Part No	Description	Price (each)	Stock
	51717409797	Cover, wheel housing, rear left	$523.78	To Order
	51717409798	Cover, wheel housing, rear right	$523.78	To Order

Photo	Part No	Description	Price (each)	Stock
	51717463401	Holder	$40.05	To Order

Photo	Part No	Description	Price (each)	Stock
	51719479310	Holder	$69.14	To Order

Photo	Part No	Description	Price (each)	Stock
	51717932234	Support, wheel arch cover	$71.85	To Order

Photo	Part No	Description	Price (each)	Stock
	7147169847	Plastic cap nut with washer	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	7149213164	Hex Bolt	$1.26	To Order
	7149481168	Hex Bolt	$2.25	To Order
	7142644722	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119907898	Hex Bolt	$1.29	To Order

Photo	Part No	Description	Price (each)	Stock
	51111908077	Expanding rivet	$0.48	To Order

Photo	Part No	Description	Price (each)	Stock
	7147311312	C-clip plastic nut	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	7147306224	Expanding nut	$0.97	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	51757409817	Cover, bottom left	51757409817 Cover, bottom left	$259.59	1
1	51757409818	Cover, bottom right	51757409818 Cover, bottom right	$259.59	1
2	51717409793	Cover,wheel arch,frontsection,front left	51717409793 Cover,wheel arch,frontsection,front left	$1,245.26	1
2	51717409794	Cover,wheel arch,frontsection,frontright	51717409794 Cover,wheel arch,frontsection,frontright	$1,245.26	1
3	51717409795	Cover,wheel arch,rear section,front left	51717409795 Cover,wheel arch,rear section,front left	$778.81	1
3	51717409796	Cover,wheel arch,rearsection,front right	51717409796 Cover,wheel arch,rearsection,front right	$778.81	1
4	51717409797	Cover, wheel housing, rear left	51717409797 Cover, wheel housing, rear left	$523.78	1
4	51717409798	Cover, wheel housing, rear right	51717409798 Cover, wheel housing, rear right	$523.78	1
5	51717463401	Holder	51717463401 Holder	$40.05	2
6	51719479310	Holder	51719479310 Holder	$69.14	2
7	51717932234	Support, wheel arch cover	51717932234 Support, wheel arch cover	$71.85	2
8	7147169847	Plastic cap nut with washer	7147169847 Plastic cap nut with washer D=22MM	$0.52	-
9	7149213164	Hex Bolt	7149213164 Hex Bolt TS5X20 SW8 D=22	$1.26	-
9	7149481168	Hex Bolt	7149481168 Hex Bolt TS5X20SW10 D=22; to 01.2021	$2.25	-
9	7142644722	Hex Bolt	7142644722 Hex Bolt TS5X20SW10 D=22; to 01.2021	-	-	Enquire
10	7119907898	Hex Bolt	7119907898 Hex Bolt M6X20-8.8	$1.29	-
11	51111908077	Expanding rivet	51111908077 Expanding rivet D = 6MM	$0.48	-
12	7147311312	C-clip plastic nut	7147311312 C-clip plastic nut TS5	$0.79	-
13	7147306224	Expanding nut	7147306224 Expanding nut L= 19.9MM	$0.97	-
