23 - ENGINE - 23.6 - SYSTEM - EXHAUST of McLaren McLaren McLaren Artura

View All

McLaren McLaren Artura - 23 - ENGINE - 23.6 - SYSTEM - EXHAUST

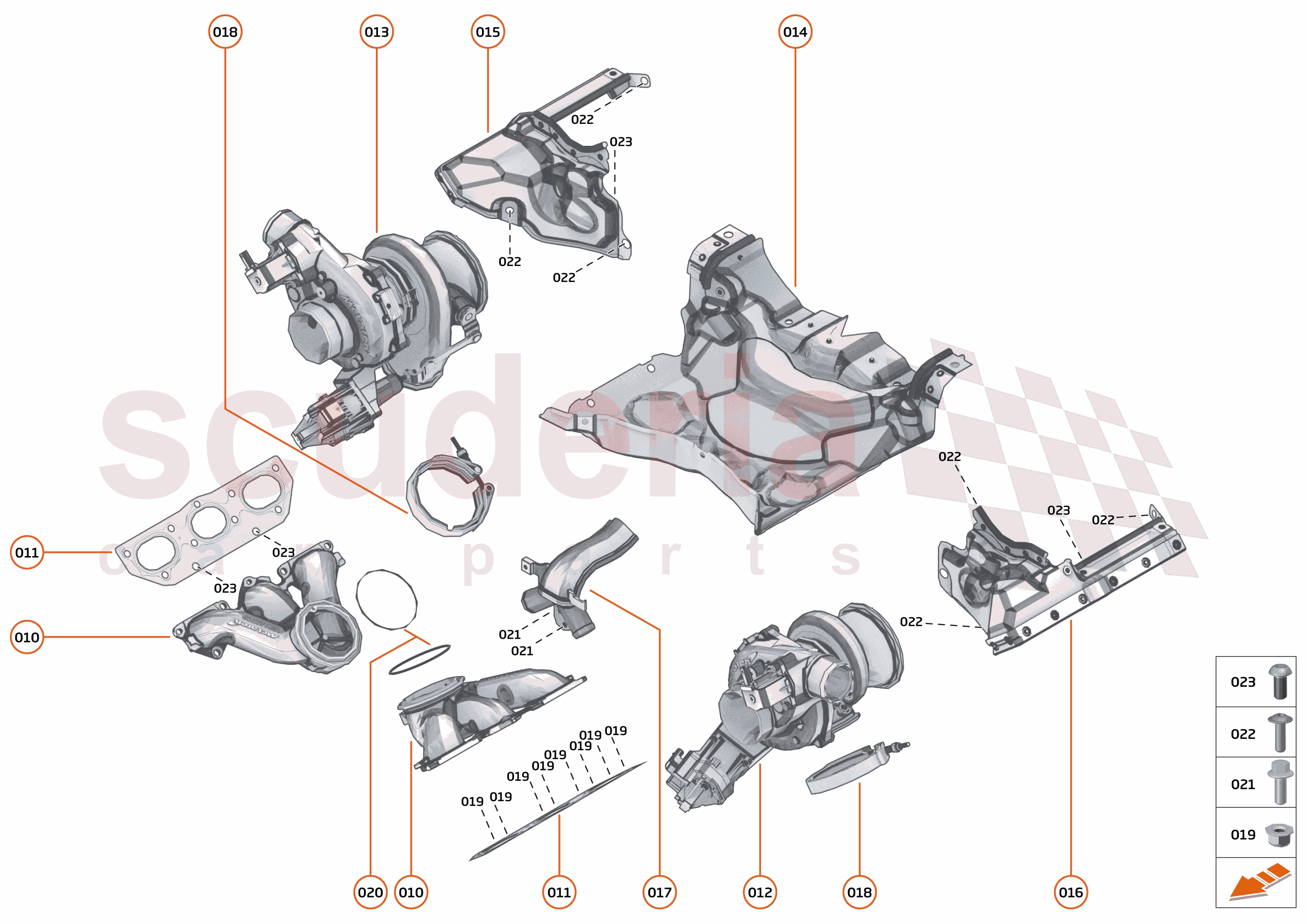

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16FA427CP	MANIFOLD-EXHAUST	$574.75	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB507CP	GASKET-EXHAUST MANIFOLD	$38.63	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB489CP	ASSY TURBO LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB490CP	ASSY TURBO RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA433CP	HEATSHIELD-LWR VEE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA434CP	HEATSHIELD-FRONT_RH	Enquire	To Order
	16FC577CP	HEATSHIELD-FRONT VEE-RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA435CP	HEATSHIELD-FRONT_LH	Enquire	To Order
	16FC578CP	HEATSHIELD-FRONT VEE-LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB495CP	NOZZLE - WGA COOLING	$55.47	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA429CP	CLAMP V BAND-TURBO MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA096CP	NUT-EXHAUST MANIFOLD	$6.77	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0509CP	V-RING - TURBO SEAL	$59.04	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1793CP	BOLT - M6X20 - HEX	$10.14	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB927CP	TURBO-SCREW AND WASHER ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB925CP	TURBO-HEX SOCKET HEAD CAP - SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	16FA427CP	MANIFOLD-EXHAUST	16FA427CP MANIFOLD-EXHAUST Row ID: ID__16FA427CP_ContPgHS; Resolution: Available;	$574.75	2
011	16FB507CP	GASKET-EXHAUST MANIFOLD	16FB507CP GASKET-EXHAUST MANIFOLD Row ID: ID__16FB507CP_ContPgHS; Resolution: Available;	$38.63	2
012	16FB489CP	ASSY TURBO LH	16FB489CP ASSY TURBO LH Row ID: ID__16FB489CP_ContPgHS; Resolution: Available;	-	1	Enquire
013	16FB490CP	ASSY TURBO RH	16FB490CP ASSY TURBO RH Row ID: ID__16FB490CP_ContPgHS; Resolution: Available;	-	1	Enquire
014	16FA433CP	HEATSHIELD-LWR VEE	16FA433CP HEATSHIELD-LWR VEE Row ID: ID__16FA433CP_ContPgHS; Resolution: Available;	-	1	Enquire
015	16FA434CP	HEATSHIELD-FRONT_RH	16FA434CP HEATSHIELD-FRONT_RH Row ID: ID__16FA434CP_ContPgHS; Resolution: Available;	-	1	Enquire
015	16FC577CP	HEATSHIELD-FRONT VEE-RH	16FC577CP HEATSHIELD-FRONT VEE-RH Row ID: ID__16FC577CP_ContPgHS; Resolution: Available;	-	1	Enquire
016	16FA435CP	HEATSHIELD-FRONT_LH	16FA435CP HEATSHIELD-FRONT_LH Row ID: ID__16FA435CP_ContPgHS; Resolution: Available;	-	1	Enquire
016	16FC578CP	HEATSHIELD-FRONT VEE-LH	16FC578CP HEATSHIELD-FRONT VEE-LH Row ID: ID__16FC578CP_ContPgHS; Resolution: Available;	-	1	Enquire
017	16FB495CP	NOZZLE - WGA COOLING	16FB495CP NOZZLE - WGA COOLING Row ID: ID__16FB495CP_ContPgHS; Resolution: Available;	$55.47	1
018	16FA429CP	CLAMP V BAND-TURBO MANIFOLD	16FA429CP CLAMP V BAND-TURBO MANIFOLD Row ID: ID__16FA429CP_ContPgHS; Resolution: Available;	-	2	Enquire
019	16FA096CP	NUT-EXHAUST MANIFOLD	16FA096CP NUT-EXHAUST MANIFOLD Row ID: ID__16FA096CP_ContPgHS; Resolution: Available;	$6.77	18
020	14F0509CP	V-RING - TURBO SEAL	14F0509CP V-RING - TURBO SEAL Row ID: ID__14F0509CP_ContPgHS; Resolution: Available;	$59.04	2
021	11F1793CP	BOLT - M6X20 - HEX	11F1793CP BOLT - M6X20 - HEX Row ID: ID__11F1793CP_ContPgHS; Resolution: Available;	$10.14	2
022	16FB927CP	TURBO-SCREW AND WASHER ASSEMBLY	16FB927CP TURBO-SCREW AND WASHER ASSEMBLY Row ID: ID__16FB927CP_ContPgHS; Resolution: Available;	-	8	Enquire
023	16FB925CP	TURBO-HEX SOCKET HEAD CAP - SCREW	16FB925CP TURBO-HEX SOCKET HEAD CAP - SCREW Row ID: ID__16FB925CP_ContPgHS; Resolution: Available;	-	6	Enquire
024	16FB926CP	TURBO-RETAINING RING	16FB926CP TURBO-RETAINING RING Row ID: ID__16FB926CP_ContPgHS; Resolution: Available;	-	4	Enquire
