23 - Engine - 23.2 - System - Primary Drive

McLaren McLaren Artura

Find Your Part

McLaren McLaren Artura - 23 - ENGINE - 23.2 - SYSTEM - PRIMARY DRIVE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16FA345CP CHAIN-CAMDRIVE LH $228.48 To Order
Photo Part No Description Price (each) Stock
16FA347CP RAIL-CAMDRIVE GUIDE LH $76.14 To Order
Photo Part No Description Price (each) Stock
16FA341CP CHAIN-CAMDRIVE RH $228.48 To Order
Photo Part No Description Price (each) Stock
16FA343CP RAIL-CAMDRIVE GUIDE RH $76.14 To Order
Photo Part No Description Price (each) Stock
16FB122CP RAIL-CAM TO CAM $71.32 To Order
Photo Part No Description Price (each) Stock
16FB484CP CAMDRIVE TENSIONER $160.97 To Order
Photo Part No Description Price (each) Stock
16FA150CP PHASER-EXHAUST $258.26 To Order
Photo Part No Description Price (each) Stock
16FA151CP PHASER-INLET $256.78 To Order
Photo Part No Description Price (each) Stock
16FA149CP FASTENER-PHASER $121.60 To Order
Photo Part No Description Price (each) Stock
16FA857CP SPROCKET-OIL PUMP $87.69 To Order
Photo Part No Description Price (each) Stock
16FA350CP CHAIN-OIL PUMP DRIVE $139.27 To Order
Photo Part No Description Price (each) Stock
16FA351CP TENSIONER-OIL PUMP DRIVE $152.92 To Order
Photo Part No Description Price (each) Stock
16FA353CP RAIL-OIL PUMP CHAIN GUIDE $43.60 To Order
Photo Part No Description Price (each) Stock
16FA865CP SHAFT OIL PUMP DRIVE $65.14 To Order
Photo Part No Description Price (each) Stock
16FA866CP BEARING BALL 52 OD X 40 ID X 7 $52.14 To Order
Photo Part No Description Price (each) Stock
16FB266CP COVER PUMP DRIVE $50.34 To Order
Photo Part No Description Price (each) Stock
16FB185CP RAIL-CAMDRIVE TENSIONER LH $152.30 To Order
Photo Part No Description Price (each) Stock
16FB184CP RAIL-CAMDRIVE TENSIONER RH $152.30 To Order
Photo Part No Description Price (each) Stock
16FB312CP SCREW M5X0.8X16 $8.85 To Order
Photo Part No Description Price (each) Stock
16FB415CP SEAL - OIL PUMP DRIVE COVER - 55ID-1.5X1.5 $54.28 To Order
Photo Part No Description Price (each) Stock
16FB534CP ACTUATOR - PHASER $73.71 To Order
Photo Part No Description Price (each) Stock
16FB617CP COUPLING PUMP DRIVE $45.46 To Order
Photo Part No Description Price (each) Stock
11F1792CP Bolt - M6x16 - Engine $12.08 To Order
Photo Part No Description Price (each) Stock
16FA897CP M14 PIN THREADED Enquire To Order
Photo Part No Description Price (each) Stock
16FA146CP M8X15.5 DIA 12X18.5 - SHOULDER - BOLT Enquire To Order
View All

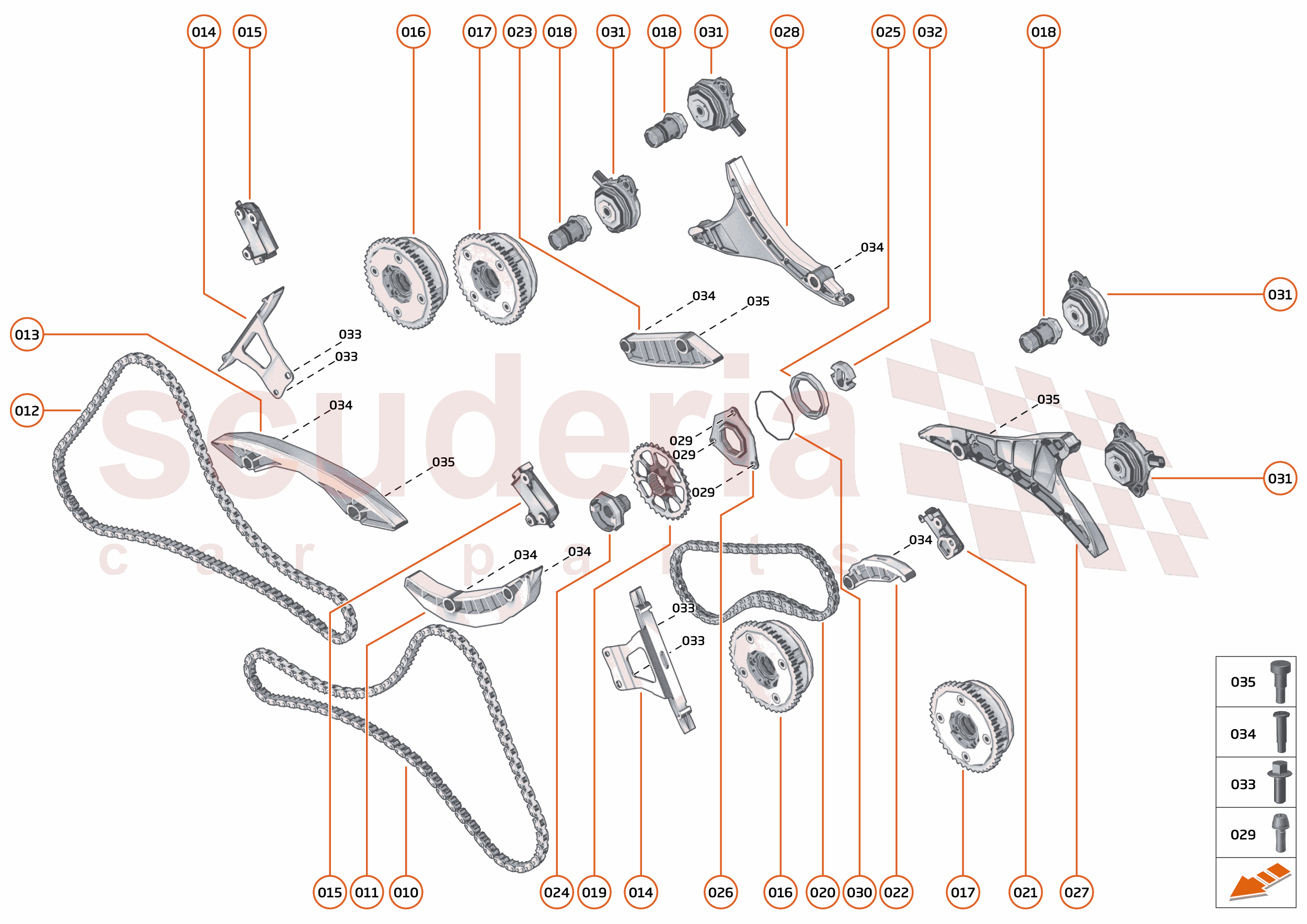

23 - ENGINE - 23.2 - SYSTEM - PRIMARY DRIVE of McLaren McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16FA345CP
CHAIN-CAMDRIVE LH
Row ID: ID__16FA345CP_ContPgHS; Resolution: Available; 		$228.48 1
011 16FA347CP
RAIL-CAMDRIVE GUIDE LH
Row ID: ID__16FA347CP_ContPgHS; Resolution: Available; 		$76.14 1
012 16FA341CP
CHAIN-CAMDRIVE RH
Row ID: ID__16FA341CP_ContPgHS; Resolution: Available; 		$228.48 1
013 16FA343CP
RAIL-CAMDRIVE GUIDE RH
Row ID: ID__16FA343CP_ContPgHS; Resolution: Available; 		$76.14 1
014 16FB122CP
RAIL-CAM TO CAM
Row ID: ID__16FB122CP_ContPgHS; Resolution: Available; 		$71.32 2
015 16FB484CP
CAMDRIVE TENSIONER
Row ID: ID__16FB484CP_ContPgHS; Resolution: Available; 		$160.97 2
016 16FA150CP
PHASER-EXHAUST
Row ID: ID__16FA150CP_ContPgHS; Resolution: Available; 		$258.26 2
017 16FA151CP
PHASER-INLET
Row ID: ID__16FA151CP_ContPgHS; Resolution: Available; 		$256.78 2
018 16FA149CP
FASTENER-PHASER
Row ID: ID__16FA149CP_ContPgHS; Resolution: Available; 		$121.60 4
019 16FA857CP
SPROCKET-OIL PUMP
Row ID: ID__16FA857CP_ContPgHS; Resolution: Available; 		$87.69 1
020 16FA350CP
CHAIN-OIL PUMP DRIVE
Row ID: ID__16FA350CP_ContPgHS; Resolution: Available; 		$139.27 1
021 16FA351CP
TENSIONER-OIL PUMP DRIVE
Row ID: ID__16FA351CP_ContPgHS; Resolution: Available; 		$152.92 1
022 16FA352CP
RAIL-OIL PUMP CHAIN TENSIONER
Row ID: ID__16FA352CP_ContPgHS; Resolution: Available; 		$63.67 1
023 16FA353CP
RAIL-OIL PUMP CHAIN GUIDE
Row ID: ID__16FA353CP_ContPgHS; Resolution: Available; 		$43.60 1
024 16FA865CP
SHAFT OIL PUMP DRIVE
Row ID: ID__16FA865CP_ContPgHS; Resolution: Available; 		$65.14 1
025 16FA866CP
BEARING BALL 52 OD X 40 ID X 7
Row ID: ID__16FA866CP_ContPgHS; Resolution: Available; 		$52.14 1
026 16FB266CP
COVER PUMP DRIVE
Row ID: ID__16FB266CP_ContPgHS; Resolution: Available; 		$50.34 1
027 16FB185CP
RAIL-CAMDRIVE TENSIONER LH
Row ID: ID__16FB185CP_ContPgHS; Resolution: Available; 		$152.30 1
028 16FB184CP
RAIL-CAMDRIVE TENSIONER RH
Row ID: ID__16FB184CP_ContPgHS; Resolution: Available; 		$152.30 1
029 16FB312CP
SCREW M5X0.8X16
Row ID: ID__16FB312CP_ContPgHS; Resolution: Available; 		$8.85 3
030 16FB415CP
SEAL - OIL PUMP DRIVE COVER - 55ID-1.5X1.5
Row ID: ID__16FB415CP_ContPgHS; Resolution: Available; 		$54.28 1
031 16FB534CP
ACTUATOR - PHASER
Row ID: ID__16FB534CP_ContPgHS; Resolution: Available; 		$73.71 4
032 16FB617CP
COUPLING PUMP DRIVE
Row ID: ID__16FB617CP_ContPgHS; Resolution: Available; 		$45.46 1
033 11F1792CP
Bolt - M6x16 - Engine
Row ID: ID__11F1792CP_ContPgHS; Resolution: Available; 		$12.08 12
034 16FA897CP
M14 PIN THREADED
Row ID: ID__16FA897CP_ContPgHS; Resolution: Available; 		- 6 Enquire
035 16FA146CP
M8X15.5 DIA 12X18.5 - SHOULDER - BOLT
Row ID: ID__16FA146CP_ContPgHS; Resolution: Available; 		- 3 Enquire
