23 - Engine - 23.8 - System - Cooling

McLaren McLaren Artura

Find Your Part

McLaren McLaren Artura - 23 - ENGINE - 23.8 - SYSTEM - COOLING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16FC670CP RUN-ON PUMP FEED HOSE Enquire To Order
Photo Part No Description Price (each) Stock
16FC671CP TURBO COOLANT RETURN LH Enquire To Order
Photo Part No Description Price (each) Stock
16FC667CP TURBO COOLANT RETURN RH Enquire To Order
Photo Part No Description Price (each) Stock
16FA417CP RUN ON PUMP-TURBOCHARGER $165.70 To Order
Photo Part No Description Price (each) Stock
16FC199CP COOLANT PUMP - ASSY Enquire To Order
16FB500CP COOLANT PUMP - THERMOSTAT Enquire To Order
16FB501CP THERMOSTAT - LIP SEAL Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
16FC664CP TURBO COOLANT FEED Enquire To Order
Photo Part No Description Price (each) Stock
16FB632CP RUN-ON PUMP AV MOUNT ASSY $12.12 To Order
16FB594CP BRACKET-RUN ON PUMP $46.79 To Order
Photo Part No Description Price (each) Stock
16FA424CP NVH ISOLATOR-PUMP RUN ON Enquire To Order
Photo Part No Description Price (each) Stock
16FC008CP RADIATOR RETURN PIPE ASSY $211.99 To Order
Photo Part No Description Price (each) Stock
16FB623CP RADIATOR RETURN COMPRESSION - LIMITER Enquire To Order
Photo Part No Description Price (each) Stock
16FB597CP PIPE TRANSMISSION FEED $125.90 To Order
Photo Part No Description Price (each) Stock
16FC035CP BYPASS PIPE ASSY $168.69 To Order
16FC034CP PIPE BYPASS-THERMOSTAT Enquire To Order
Photo Part No Description Price (each) Stock
16FB625CP BYPASS PIPE SEAL Enquire To Order
Photo Part No Description Price (each) Stock
16FC120CP CABLE TIE BELLOWS 4.6X1.2X305MM PA46 $7.02 To Order
Photo Part No Description Price (each) Stock
16FB631CP BELLOWS - PUMP $74.33 To Order
Photo Part No Description Price (each) Stock
16FB903CP COOLANT PUMP-THERMOSTAT COVER Enquire To Order
Photo Part No Description Price (each) Stock
11F1792CP Bolt - M6x16 - Engine $12.08 To Order
Photo Part No Description Price (each) Stock
16FC171CP SCR-PAN HD-TORX-NO6X22-STL-81 Enquire To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $10.14 To Order
Photo Part No Description Price (each) Stock
11FA031CP BOLT - M6X80 - HEX PATCH LOCK Enquire To Order
11F1784CP Bolt - M6x80 - Engine $17.38 To Order
Photo Part No Description Price (each) Stock
11F1794CP Screw - M6x25 Hex $7.37 To Order
Photo Part No Description Price (each) Stock
16FB901CP COOLANT PUMP-SCREW M6X18 Enquire To Order
View All

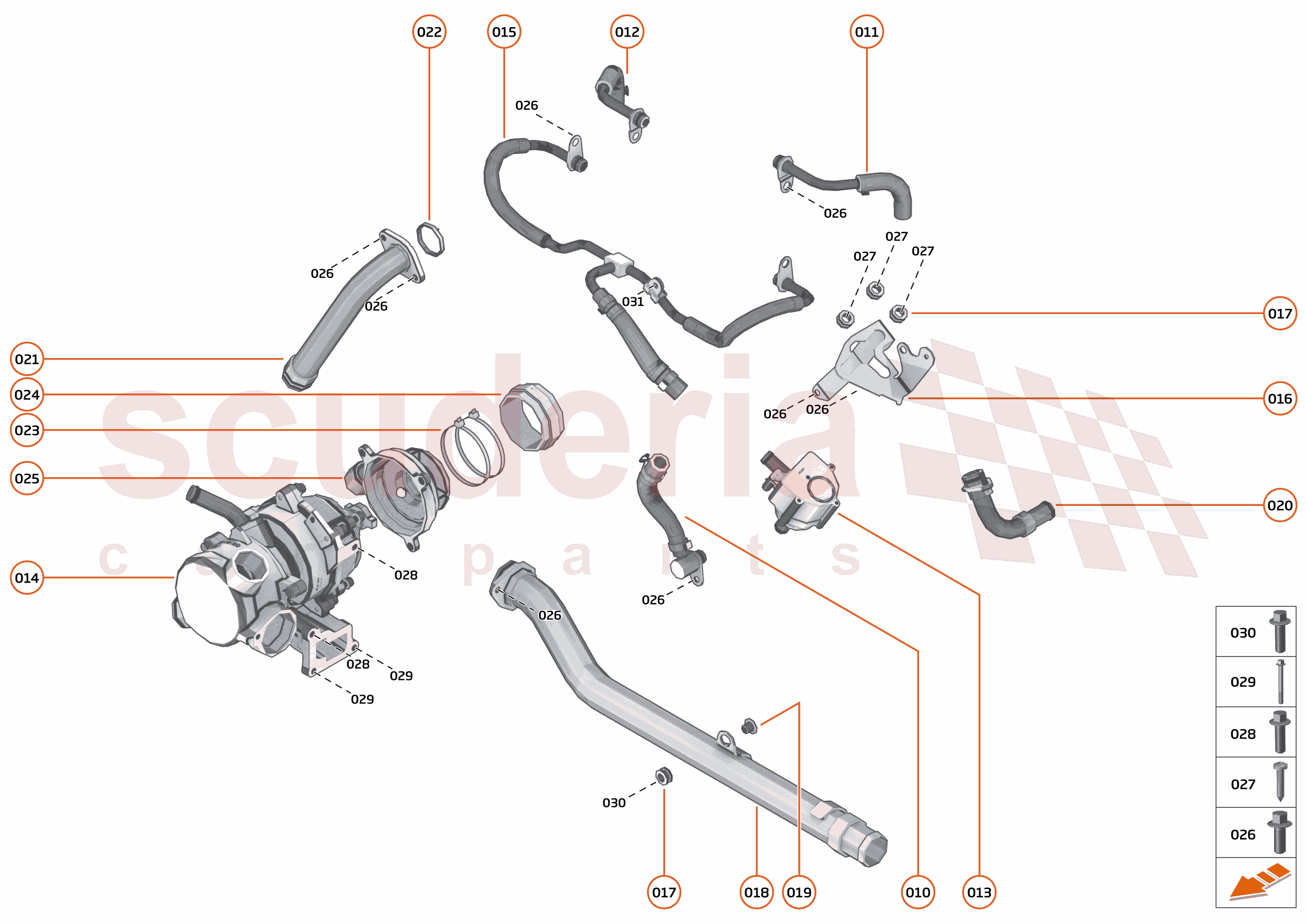

23 - ENGINE - 23.8 - SYSTEM - COOLING of McLaren McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16FC670CP
RUN-ON PUMP FEED HOSE
Row ID: ID__16FC670CP_ContPgHS; Resolution: Available; 		- 1 Enquire
011 16FC671CP
TURBO COOLANT RETURN LH
Row ID: ID__16FC671CP_ContPgHS; Resolution: Available; 		- 1 Enquire
012 16FC667CP
TURBO COOLANT RETURN RH
Row ID: ID__16FC667CP_ContPgHS; Resolution: Available; 		- 1 Enquire
013 16FA417CP
RUN ON PUMP-TURBOCHARGER
Row ID: ID__16FA417CP_ContPgHS; Resolution: Available; 		$165.70 1
014 16FC199CP
COOLANT PUMP - ASSY
Row ID: ID__16FC199CP_ContPgHS; Resolution: Available; 		- 1 Enquire
014 16FB500CP
COOLANT PUMP - THERMOSTAT
Row ID: ID__16FB500CP_ContPgHS; Resolution: Available; 		- 1 Enquire
014 16FB501CP
THERMOSTAT - LIP SEAL
Row ID: ID__16FB501CP_ContPgHS; Resolution: Available; 		- 1 Enquire
014 16FC200CP
COOLANT PUMP
Row ID: ID__16FC200CP_ContPgHS; Resolution: Available; 		- 1 Enquire
015 16FC664CP
TURBO COOLANT FEED
Row ID: ID__16FC664CP_ContPgHS; Resolution: Available; 		- 1 Enquire
016 16FB632CP
RUN-ON PUMP AV MOUNT ASSY
Row ID: ID__16FB632CP_ContPgHS; Resolution: Available; 		$12.12 3
016 16FB594CP
BRACKET-RUN ON PUMP
Row ID: ID__16FB594CP_ContPgHS; Resolution: Available; 		$46.79 1
017 16FA424CP
NVH ISOLATOR-PUMP RUN ON
Row ID: ID__16FA424CP_ContPgHS; Resolution: Available; 		- - Enquire
018 16FC008CP
RADIATOR RETURN PIPE ASSY
Row ID: ID__16FC008CP_ContPgHS; Resolution: Available; 		$211.99 1
019 16FB623CP
RADIATOR RETURN COMPRESSION - LIMITER
Row ID: ID__16FB623CP_ContPgHS; Resolution: Available; 		- 1 Enquire
020 16FB597CP
PIPE TRANSMISSION FEED
Row ID: ID__16FB597CP_ContPgHS; Resolution: Available; 		$125.90 1
021 16FC035CP
BYPASS PIPE ASSY
Row ID: ID__16FC035CP_ContPgHS; Resolution: Available; 		$168.69 1
021 16FC034CP
PIPE BYPASS-THERMOSTAT
Row ID: ID__16FC034CP_ContPgHS; Resolution: Available; 		- 1 Enquire
022 16FB625CP
BYPASS PIPE SEAL
Row ID: ID__16FB625CP_ContPgHS; Resolution: Available; 		- 1 Enquire
023 16FC120CP
CABLE TIE BELLOWS 4.6X1.2X305MM PA46
Row ID: ID__16FC120CP_ContPgHS; Resolution: Available; 		$7.02 2
024 16FB631CP
BELLOWS - PUMP
Row ID: ID__16FB631CP_ContPgHS; Resolution: Available; 		$74.33 1
025 16FB903CP
COOLANT PUMP-THERMOSTAT COVER
Row ID: ID__16FB903CP_ContPgHS; Resolution: Available; 		- 1 Enquire
026 11F1792CP
Bolt - M6x16 - Engine
Row ID: ID__11F1792CP_ContPgHS; Resolution: Available; 		$12.08 7
027 16FC171CP
SCR-PAN HD-TORX-NO6X22-STL-81
Row ID: ID__16FC171CP_ContPgHS; Resolution: Available; 		- 3 Enquire
028 11F1793CP
BOLT - M6X20 - HEX
Row ID: ID__11F1793CP_ContPgHS; Resolution: Available; 		$10.14 2
029 11FA031CP
BOLT - M6X80 - HEX PATCH LOCK
Row ID: ID__11FA031CP_ContPgHS; Resolution: Available; 		- 2 Enquire
029 11F1784CP
Bolt - M6x80 - Engine
Row ID: ID__11F1784CP_ContPgHS; Resolution: Available; 		$17.38 2
030 11F1794CP
Screw - M6x25 Hex
Row ID: ID__11F1794CP_ContPgHS; Resolution: Available; 		$7.37 1
031 16FB901CP
COOLANT PUMP-SCREW M6X18
Row ID: ID__16FB901CP_ContPgHS; Resolution: Available; 		- 11 Enquire
