22 - Engine - 22.3 - Ic Engine - Cranktrain

McLaren McLaren Artura

Find Your Part

McLaren McLaren Artura - 22 - ENGINE - 22.3 - IC ENGINE - CRANKTRAIN

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16FB709CP DAMPER - TV - VISCOUS $765.83 To Order
Photo Part No Description Price (each) Stock
16FB470CP TRELLEBORG FRONT CRANK SEAL Enquire To Order
Photo Part No Description Price (each) Stock
16FB708CP SCREW-M8X23-PTCH-LK FL HX HD $7.77 To Order
Photo Part No Description Price (each) Stock
16FA609CP PILOT BEARING - TRANSMISSION SHAFT $31.32 To Order
Photo Part No Description Price (each) Stock
16FC521CP DLD BOLT TORX LOW HEAD M10X20 PTCH-LK Enquire To Order
Photo Part No Description Price (each) Stock
16GA436CP K0 CLUTCH FLYWHEEL Enquire To Order
16GA399CP K0 CLUTCH FLYWHEEL Enquire To Order
View All

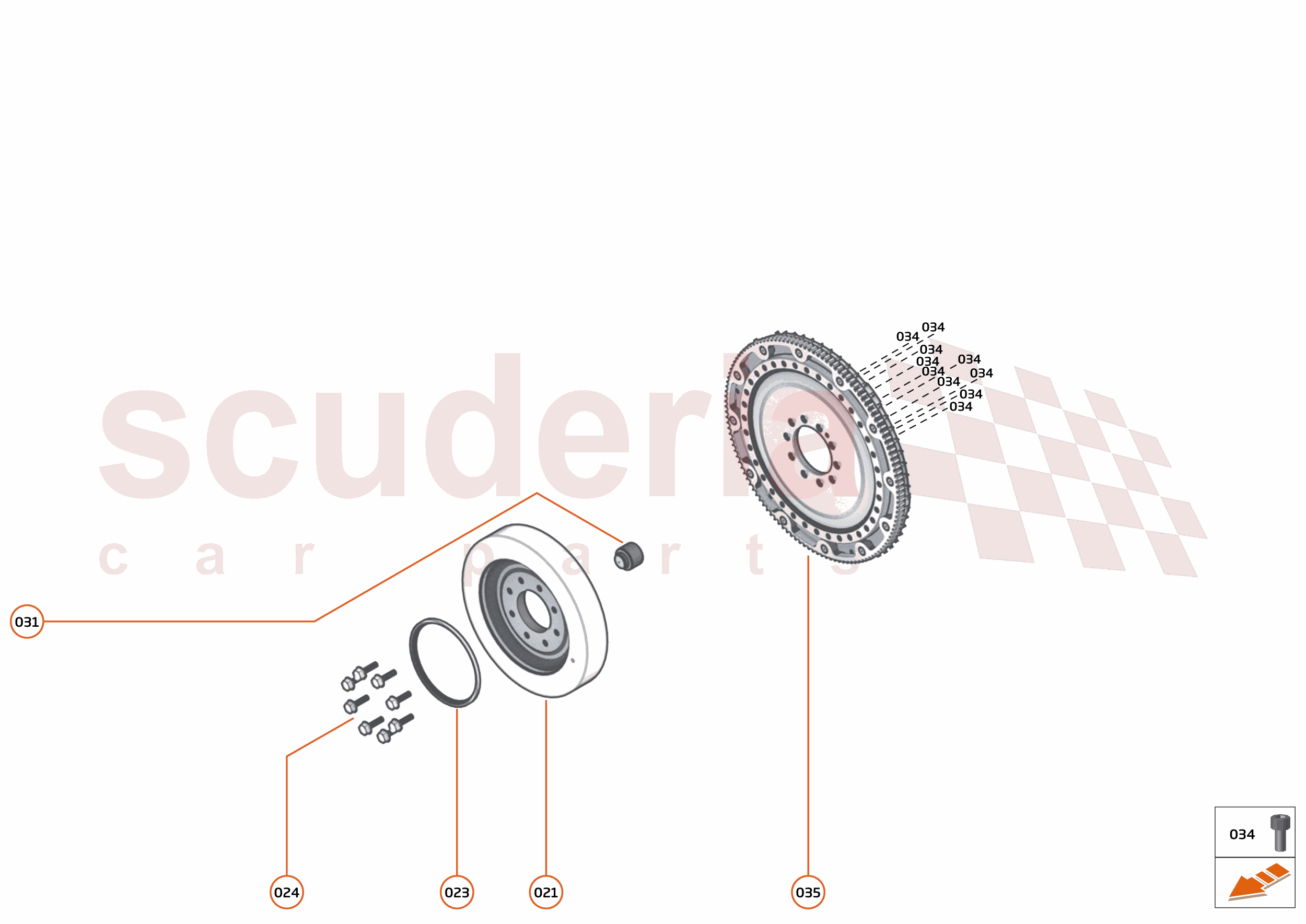

22 - ENGINE - 22.3 - IC ENGINE - CRANKTRAIN of McLaren McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
021 16FB709CP
DAMPER - TV - VISCOUS
Row ID: ID__16FB709CP_ContPgHS; Resolution: Available; 		$765.83 1
023 16FB470CP
TRELLEBORG FRONT CRANK SEAL
Row ID: ID__16FB470CP_ContPgHS; Resolution: Available; 		- 1 Enquire
024 16FB708CP
SCREW-M8X23-PTCH-LK FL HX HD
Row ID: ID__16FB708CP_ContPgHS; Resolution: Available; 		$7.77 8
031 16FA609CP
PILOT BEARING - TRANSMISSION SHAFT
Row ID: ID__16FA609CP_ContPgHS; Resolution: Available; 		$31.32 1
034 16FC521CP
DLD BOLT TORX LOW HEAD M10X20 PTCH-LK
Row ID: ID__16FC521CP_ContPgHS; Resolution: Available; 		- 10 Enquire
035 16GA436CP
K0 CLUTCH FLYWHEEL
Row ID: ID__16GA436CP_ContPgHS; Resolution: Available; 		- 1 Enquire
035 16GA399CP
K0 CLUTCH FLYWHEEL
Row ID: ID__16GA399CP_ContPgHS; Resolution: Available; 		- 1 Enquire
