24 - LUBRICATION SYSTEM OFF ENGINE - 24.2 - ENGINE OIL FEED & RETURN HOSES of McLaren McLaren McLaren Artura

View All

McLaren McLaren Artura - 24 - LUBRICATION SYSTEM OFF ENGINE - 24.2 - ENGINE OIL FEED & RETURN HOSES

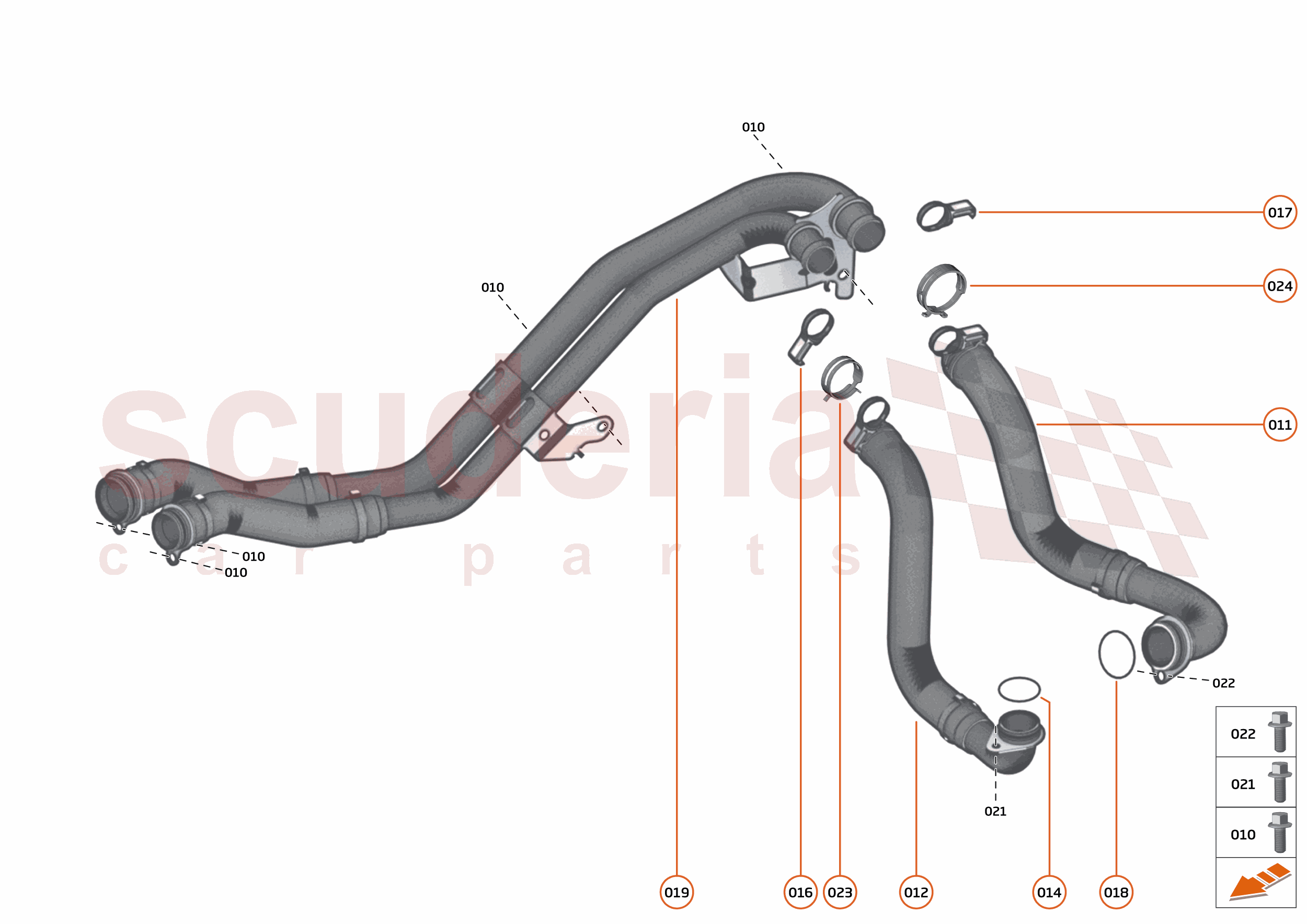

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA313	Screw - M6x16 - Hex - Silver	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB544CP	PIPE RETURN ENGINE TO OIL TANK - NON FED	$409.04	To Order
	16FC410CP	PIPE RETURN ENGINE TO OIL TANK - FED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16FC517CP	PIPE FEED OIL TANK TO ENGINE - NON FED	Enquire	To Order
	16FC518CP	PIPE FEED OIL TANK TO ENGINE - FED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB905CP	ENGINE PIPE-O RING-24 IDX2.62 - ISO 122 28	$3.07	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB908CP	ENGINE PIPE-SPRING BAND CLAMP - 34X12	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB909CP	ENGINE PIPE-SPRING BAND CLAMP - 38X12	$6.15	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB907CP	ENGINE PIPE-O RING-59 IDX2.62 - ISO 126 34	$3.07	To Order

Photo	Part No	Description	Price (each)	Stock
	16FC490CP	HARDLINES-FEED AND RETURN - NON FED	Enquire	To Order
	16FC438CP	HARDLINES-FEED AND RETURN - FED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA768	BLT-HX HD-FL-M6X1X12-8.8-72-LA - PATCHLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA812	BLT-HX HD-FL-M6X1X20-8.8-78 LP - WITH PATCHLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB212	CLAMP - SPRING BAND - 42X12	Enquire	To Order
	00RB217	CLAMP - SPRING BAND - 34X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB268	CLMP-SPRINGBAND-36X12-STL-BLK	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA313	Screw - M6x16 - Hex - Silver	00RA313 Screw - M6x16 - Hex - Silver Row ID: ID__00RA313_ContPgHS; Resolution: Available;	-	2	Enquire
011	16FB544CP	PIPE RETURN ENGINE TO OIL TANK - NON FED	16FB544CP PIPE RETURN ENGINE TO OIL TANK - NON FED Row ID: ID__16FB544CP_ContPgHS; Resolution: Available;	$409.04	1
011	16FC410CP	PIPE RETURN ENGINE TO OIL TANK - FED	16FC410CP PIPE RETURN ENGINE TO OIL TANK - FED Row ID: ID__16FC410CP_ContPgHS; Resolution: Available;	-	1	Enquire
012	16FC517CP	PIPE FEED OIL TANK TO ENGINE - NON FED	16FC517CP PIPE FEED OIL TANK TO ENGINE - NON FED Row ID: ID__16FC517CP_ContPgHS; Resolution: Available;	-	1	Enquire
012	16FC518CP	PIPE FEED OIL TANK TO ENGINE - FED	16FC518CP PIPE FEED OIL TANK TO ENGINE - FED Row ID: ID__16FC518CP_ContPgHS; Resolution: Available;	-	1	Enquire
014	16FB905CP	ENGINE PIPE-O RING-24 IDX2.62 - ISO 122 28	16FB905CP ENGINE PIPE-O RING-24 IDX2.62 - ISO 122 28 Row ID: ID__16FB905CP_ContPgHS; Resolution: Available;	$3.07	3
016	16FB908CP	ENGINE PIPE-SPRING BAND CLAMP - 34X12	16FB908CP ENGINE PIPE-SPRING BAND CLAMP - 34X12 Row ID: ID__16FB908CP_ContPgHS; Resolution: Available;	$5.75	1
017	16FB909CP	ENGINE PIPE-SPRING BAND CLAMP - 38X12	16FB909CP ENGINE PIPE-SPRING BAND CLAMP - 38X12 Row ID: ID__16FB909CP_ContPgHS; Resolution: Available;	$6.15	1
018	16FB907CP	ENGINE PIPE-O RING-59 IDX2.62 - ISO 126 34	16FB907CP ENGINE PIPE-O RING-59 IDX2.62 - ISO 126 34 Row ID: ID__16FB907CP_ContPgHS; Resolution: Available;	$3.07	2
019	16FC490CP	HARDLINES-FEED AND RETURN - NON FED	16FC490CP HARDLINES-FEED AND RETURN - NON FED Row ID: ID__16FC490CP_ContPgHS; Resolution: Available;	-	1	Enquire
019	16FC438CP	HARDLINES-FEED AND RETURN - FED	16FC438CP HARDLINES-FEED AND RETURN - FED Row ID: ID__16FC438CP_ContPgHS; Resolution: Available;	-	1	Enquire
021	00RA768	BLT-HX HD-FL-M6X1X12-8.8-72-LA - PATCHLOCK	00RA768 BLT-HX HD-FL-M6X1X12-8.8-72-LA - PATCHLOCK Row ID: ID__00RA768_ContPgHS; Resolution: Available;	-	1	Enquire
022	00RA812	BLT-HX HD-FL-M6X1X20-8.8-78 LP - WITH PATCHLOCK	00RA812 BLT-HX HD-FL-M6X1X20-8.8-78 LP - WITH PATCHLOCK Row ID: ID__00RA812_ContPgHS; Resolution: Available;	-	1	Enquire
023	00RB212	CLAMP - SPRING BAND - 42X12	00RB212 CLAMP - SPRING BAND - 42X12 Row ID: ID__00RB212_ContPgHS; Resolution: Available;	-	1	Enquire
023	00RB217	CLAMP - SPRING BAND - 34X12	00RB217 CLAMP - SPRING BAND - 34X12 Row ID: ID__00RB217_ContPgHS; Resolution: Available;	-	1	Enquire
024	00RB268	CLMP-SPRINGBAND-36X12-STL-BLK	00RB268 CLMP-SPRINGBAND-36X12-STL-BLK Row ID: ID__00RB268_ContPgHS; Resolution: Available;	-	1	Enquire
