22 - ENGINE - 22.2 - IC ENGINE - INTAKE of McLaren McLaren McLaren Artura

View All

McLaren McLaren Artura - 22 - ENGINE - 22.2 - IC ENGINE - INTAKE

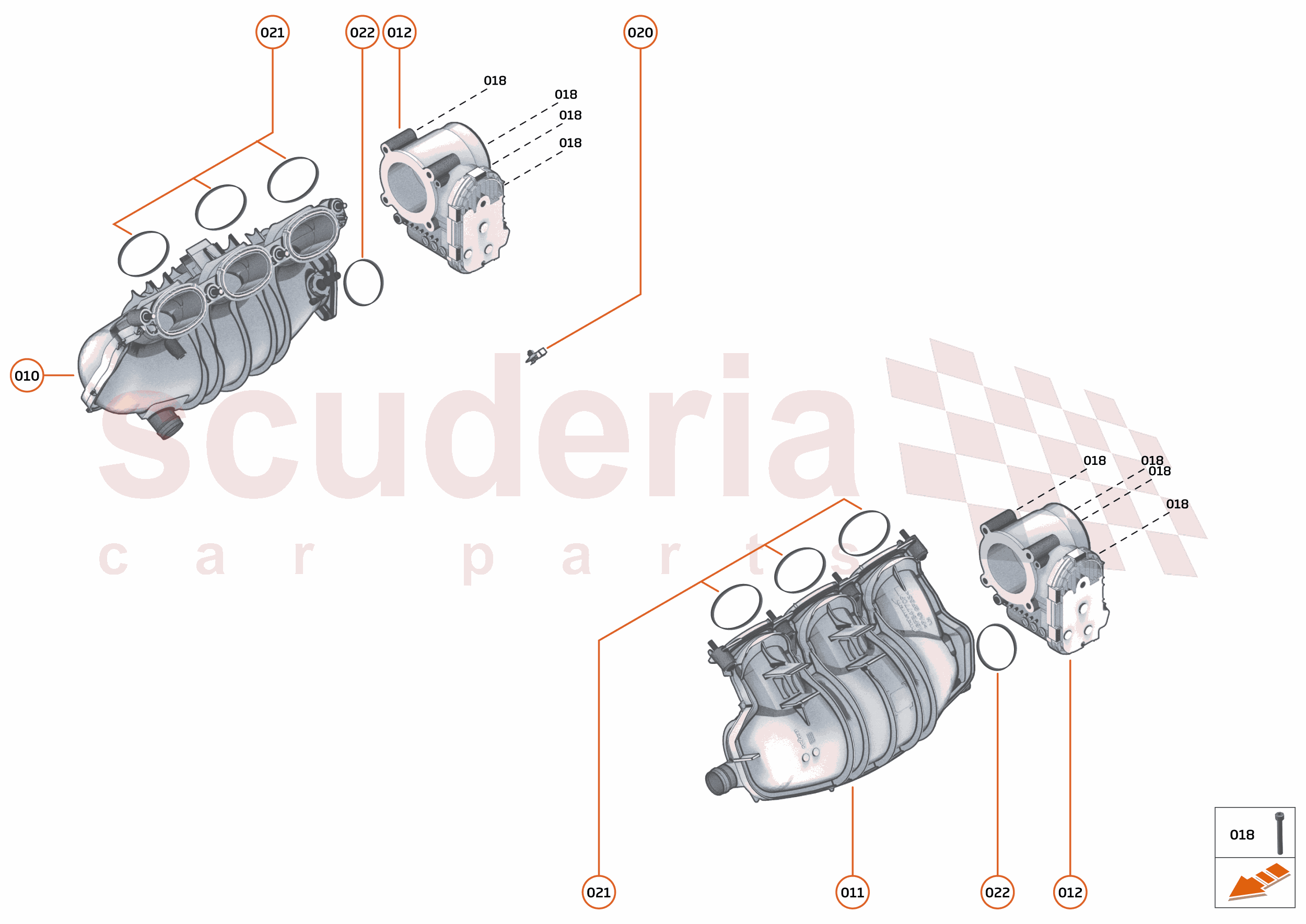

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16FB476CP	ASSY INLET MANIFOLD RH	$201.53	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB477CP	ASSY INLET MANIFOLD LH	$201.53	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA924CP	THROTTLE BODY-DIA.54MM-BOSCH	$431.43	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1797CP	SCREW - CAP HEAD - M6X45	$8.32	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB431CP	CABLE STRAP-FTREE-AREYMOND - 239089-0-00	$3.47	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB911CP	INTAKE MANIFOLD-CYLINDER HEAD GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB912CP	INTAKE MANIFOLD-THROTTLE BODY GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	16FB476CP	ASSY INLET MANIFOLD RH	16FB476CP ASSY INLET MANIFOLD RH Row ID: ID__16FB476CP_ContPgHS; Resolution: Available;	$201.53	1
011	16FB477CP	ASSY INLET MANIFOLD LH	16FB477CP ASSY INLET MANIFOLD LH Row ID: ID__16FB477CP_ContPgHS; Resolution: Available;	$201.53	1
012	16FA924CP	THROTTLE BODY-DIA.54MM-BOSCH	16FA924CP THROTTLE BODY-DIA.54MM-BOSCH Row ID: ID__16FA924CP_ContPgHS; Resolution: Available;	$431.43	2
016	16FA814CP	BALANCE PIPE-INLET MANIFOLDS	16FA814CP BALANCE PIPE-INLET MANIFOLDS Row ID: ID__16FA814CP_ContPgHS; Resolution: Available;	-	1	Enquire
018	11F1797CP	SCREW - CAP HEAD - M6X45	11F1797CP SCREW - CAP HEAD - M6X45 Row ID: ID__11F1797CP_ContPgHS; Resolution: Available;	$8.32	8
019	16FB394CP	ASSY INLET PURGE HOSE RH	16FB394CP ASSY INLET PURGE HOSE RH Row ID: ID__16FB394CP_ContPgHS; Resolution: Available;	$54.12	1
020	16FB431CP	CABLE STRAP-FTREE-AREYMOND - 239089-0-00	16FB431CP CABLE STRAP-FTREE-AREYMOND - 239089-0-00 Row ID: ID__16FB431CP_ContPgHS; Resolution: Available;	$3.47	1
021	16FB911CP	INTAKE MANIFOLD-CYLINDER HEAD GASKET	16FB911CP INTAKE MANIFOLD-CYLINDER HEAD GASKET Row ID: ID__16FB911CP_ContPgHS; Resolution: Available;	-	6	Enquire
022	16FB912CP	INTAKE MANIFOLD-THROTTLE BODY GASKET	16FB912CP INTAKE MANIFOLD-THROTTLE BODY GASKET Row ID: ID__16FB912CP_ContPgHS; Resolution: Available;	-	2	Enquire
023	11F0820CP	Bolt Set - M6x45 - Engine - Throttle Body	11F0820CP Bolt Set - M6x45 - Engine - Throttle Body Row ID: ID__11F0820CP_ContPgHS; Resolution: Available;	-	1	Enquire
024	11F0822CP	Bolt - M6x16 - Engine	11F0822CP Bolt - M6x16 - Engine Row ID: ID__11F0822CP_ContPgHS; Resolution: Available;	-	1	Enquire
