23 - Engine - 23.3 - System - Cylinder Head

McLaren McLaren Artura

Find Your Part

McLaren McLaren Artura - 23 - ENGINE - 23.3 - SYSTEM - CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16FC306CP ASSY MC CYLINDER HEAD LH Enquire To Order
Photo Part No Description Price (each) Stock
16FC301CP ASSY MC CYLINDER HEAD RH Enquire To Order
Photo Part No Description Price (each) Stock
16FB429CP ASSY CAM COVER LH Enquire To Order
16FC494CP ASSY CAM COVER LH - INC. CAM COVER AND FUEL PUMP - SEALS Enquire To Order
Photo Part No Description Price (each) Stock
16FC492CP ASSY CAM COVER RH - INC. CAM COVER AND FUEL PUMP - SEALS Enquire To Order
Photo Part No Description Price (each) Stock
16FB775CP SEAL-CAM COVER-RH $137.03 To Order
Photo Part No Description Price (each) Stock
16FB776CP SEAL-CAM COVER-LH $137.03 To Order
Photo Part No Description Price (each) Stock
16FB027CP GASKET-CYLINDER HEAD LH $88.05 To Order
Photo Part No Description Price (each) Stock
16FB025CP GASKET-CYLINDER HEAD RH $90.54 To Order
Photo Part No Description Price (each) Stock
16FB615CP RING DOWEL 8MM Enquire To Order
Photo Part No Description Price (each) Stock
11F1781CP Bolt - M6x35 - Engine $9.85 To Order
Photo Part No Description Price (each) Stock
11F2203CP PLUG- AVDEL- DIA 8MM Enquire To Order
Photo Part No Description Price (each) Stock
16FA068CP EXHAUST STUD $18.00 To Order
Photo Part No Description Price (each) Stock
16FB506CP SEAL FUEL PUMP $29.97 To Order
Photo Part No Description Price (each) Stock
16FB416CP PLUG CORE DIA 14 $17.14 To Order
Photo Part No Description Price (each) Stock
11F1876CP DOWEL- RING- 6.1 X 8 X 6 LG $19.34 To Order
View All

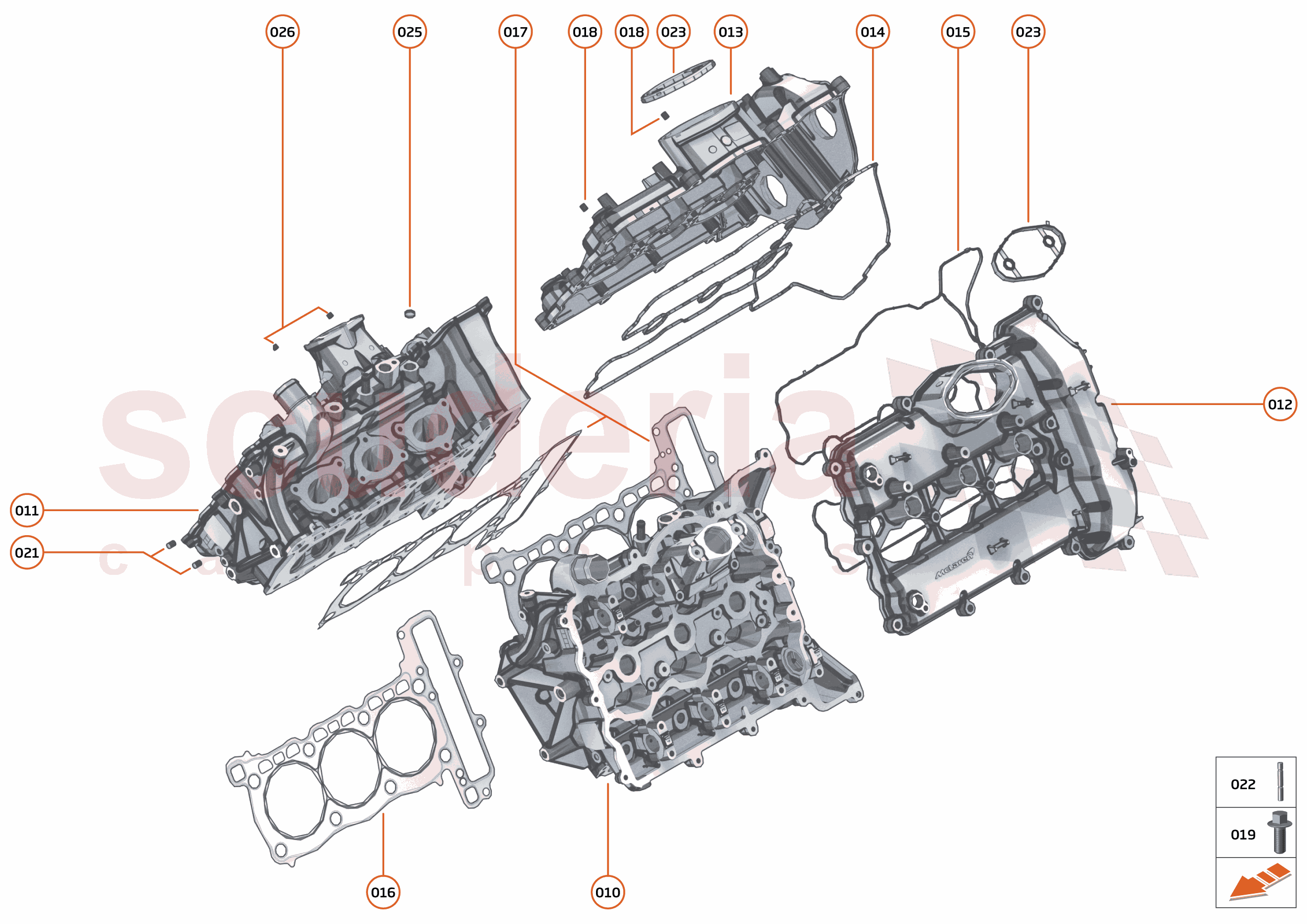

23 - ENGINE - 23.3 - SYSTEM - CYLINDER HEAD of McLaren McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16FC306CP
ASSY MC CYLINDER HEAD LH
Row ID: ID__16FC306CP_ContPgHS; Resolution: Available; 		- 1 Enquire
011 16FC301CP
ASSY MC CYLINDER HEAD RH
Row ID: ID__16FC301CP_ContPgHS; Resolution: Available; 		- 1 Enquire
012 16FB429CP
ASSY CAM COVER LH
Row ID: ID__16FB429CP_ContPgHS; Resolution: Available; 		- 1 Enquire
012 16FC494CP
ASSY CAM COVER LH - INC. CAM COVER AND FUEL PUMP - SEALS
Row ID: ID__16FC494CP_ContPgHS; Resolution: Available; 		- 1 Enquire
013 16FC492CP
ASSY CAM COVER RH - INC. CAM COVER AND FUEL PUMP - SEALS
Row ID: ID__16FC492CP_ContPgHS; Resolution: Available; 		- 1 Enquire
014 16FB775CP
SEAL-CAM COVER-RH
Row ID: ID__16FB775CP_ContPgHS; Resolution: Available; 		$137.03 1
015 16FB776CP
SEAL-CAM COVER-LH
Row ID: ID__16FB776CP_ContPgHS; Resolution: Available; 		$137.03 1
016 16FB027CP
GASKET-CYLINDER HEAD LH
Row ID: ID__16FB027CP_ContPgHS; Resolution: Available; 		$88.05 1
017 16FB025CP
GASKET-CYLINDER HEAD RH
Row ID: ID__16FB025CP_ContPgHS; Resolution: Available; 		$90.54 1
018 16FB615CP
RING DOWEL 8MM
Row ID: ID__16FB615CP_ContPgHS; Resolution: Available; 		- 2 Enquire
019 11F1781CP
Bolt - M6x35 - Engine
Row ID: ID__11F1781CP_ContPgHS; Resolution: Available; 		$9.85 -
020 11F1776CP
Bolt - M6x30 - Engine
Row ID: ID__11F1776CP_ContPgHS; Resolution: Available; 		$9.55 42
021 11F2203CP
PLUG- AVDEL- DIA 8MM
Row ID: ID__11F2203CP_ContPgHS; Resolution: Available; 		- 4 Enquire
022 16FA068CP
EXHAUST STUD
Row ID: ID__16FA068CP_ContPgHS; Resolution: Available; 		$18.00 -
023 16FB506CP
SEAL FUEL PUMP
Row ID: ID__16FB506CP_ContPgHS; Resolution: Available; 		$29.97 -
024 16FB944CP
HEAD BOLT M11
Row ID: ID__16FB944CP_ContPgHS; Resolution: Available; 		$17.44 16
025 16FB416CP
PLUG CORE DIA 14
Row ID: ID__16FB416CP_ContPgHS; Resolution: Available; 		$17.14 3
026 11F1876CP
DOWEL- RING- 6.1 X 8 X 6 LG
Row ID: ID__11F1876CP_ContPgHS; Resolution: Available; 		$19.34 6
027 16FB533CP
BOLT - M6X30 FL 10MM HX HD
Row ID: ID__16FB533CP_ContPgHS; Resolution: Available; 		$16.59 -
