23 - Engine - 23.4 - System - Intake

McLaren McLaren Artura

Find Your Part

McLaren McLaren Artura - 23 - ENGINE - 23.4 - SYSTEM - INTAKE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16FB476CP ASSY INLET MANIFOLD RH $201.53 To Order
Photo Part No Description Price (each) Stock
16FB477CP ASSY INLET MANIFOLD LH $201.53 To Order
Photo Part No Description Price (each) Stock
16FA924CP THROTTLE BODY-DIA.54MM-BOSCH $431.43 To Order
Photo Part No Description Price (each) Stock
16FC084CP BALANCE PIPE - INLET MANIFOLDS $93.05 To Order
Photo Part No Description Price (each) Stock
13F0594CP NORMA QUICK CONNECTOR V2 - 19MM-90-90 Enquire To Order
Photo Part No Description Price (each) Stock
11F1797CP SCREW - CAP HEAD - M6X45 $8.32 To Order
Photo Part No Description Price (each) Stock
16FB394CP ASSY INLET PURGE HOSE RH - INC. FIRTREE CABLE TIE $54.12 To Order
Photo Part No Description Price (each) Stock
16FB431CP CABLE STRAP-FTREE-AREYMOND 239089-0-00 $3.47 To Order
Photo Part No Description Price (each) Stock
11F1792CP Bolt - M6x16 - Engine $12.08 To Order
Photo Part No Description Price (each) Stock
16FC125CP P-CLIP-NORMA-DIA 28 X 15 $9.40 To Order
Photo Part No Description Price (each) Stock
16FB911CP INTAKE MANIFOLD-CYLINDER HEAD - GASKET Enquire To Order
Photo Part No Description Price (each) Stock
16FB912CP INTAKE MANIFOLD-THROTTLE BODY - GASKET Enquire To Order
View All

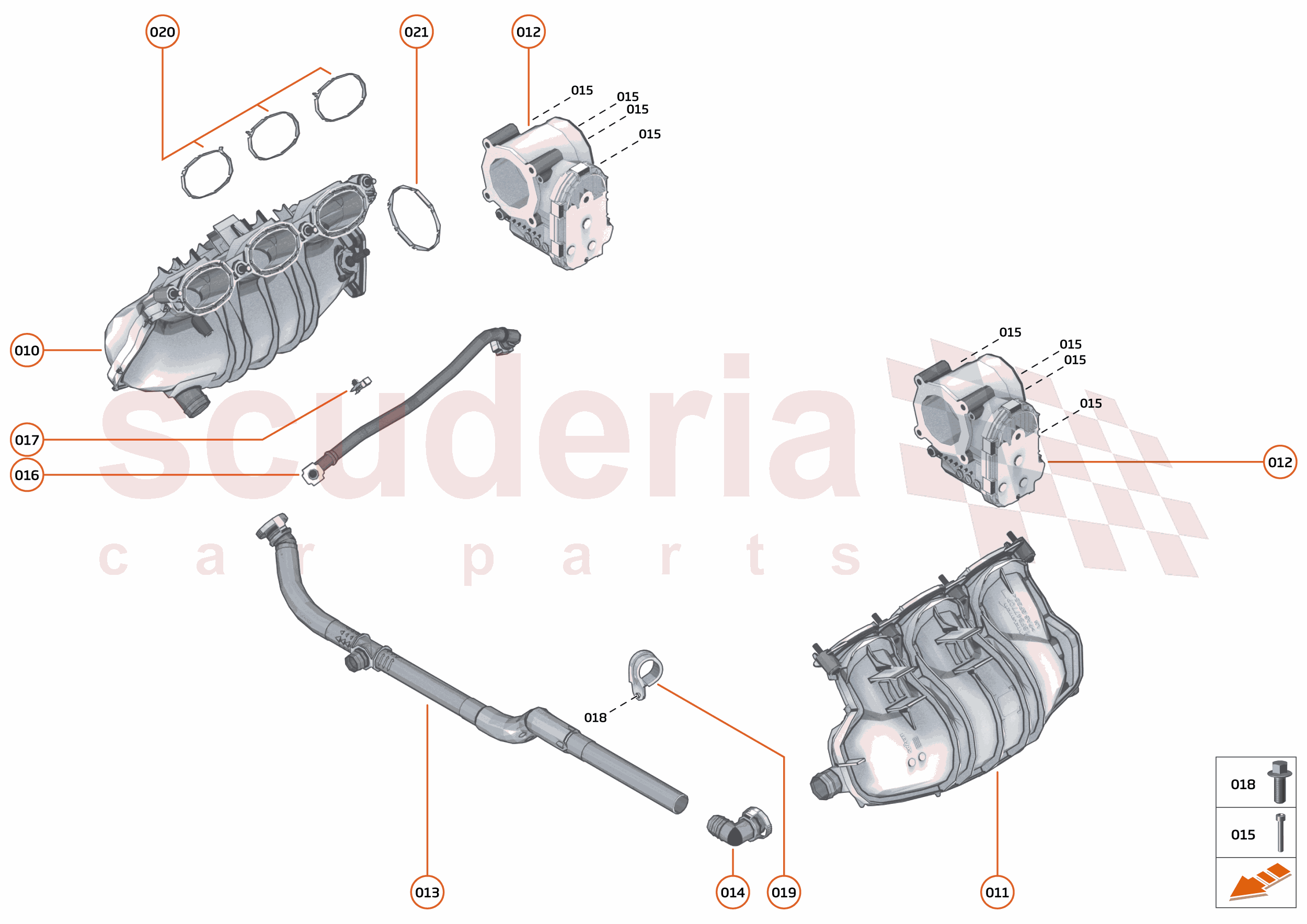

23 - ENGINE - 23.4 - SYSTEM - INTAKE of McLaren McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16FB476CP
ASSY INLET MANIFOLD RH
Row ID: ID__16FB476CP_ContPgHS; Resolution: Available; 		$201.53 1
011 16FB477CP
ASSY INLET MANIFOLD LH
Row ID: ID__16FB477CP_ContPgHS; Resolution: Available; 		$201.53 1
012 16FA924CP
THROTTLE BODY-DIA.54MM-BOSCH
Row ID: ID__16FA924CP_ContPgHS; Resolution: Available; 		$431.43 2
013 16FC084CP
BALANCE PIPE - INLET MANIFOLDS
Row ID: ID__16FC084CP_ContPgHS; Resolution: Available; 		$93.05 1
014 13F0594CP
NORMA QUICK CONNECTOR V2 - 19MM-90-90
Row ID: ID__13F0594CP_ContPgHS; Resolution: Available; 		- 1 Enquire
015 11F1797CP
SCREW - CAP HEAD - M6X45
Row ID: ID__11F1797CP_ContPgHS; Resolution: Available; 		$8.32 8
016 16FB394CP
ASSY INLET PURGE HOSE RH - INC. FIRTREE CABLE TIE
Row ID: ID__16FB394CP_ContPgHS; Resolution: Available; 		$54.12 1
017 16FB431CP
CABLE STRAP-FTREE-AREYMOND 239089-0-00
Row ID: ID__16FB431CP_ContPgHS; Resolution: Available; 		$3.47 1
018 11F1792CP
Bolt - M6x16 - Engine
Row ID: ID__11F1792CP_ContPgHS; Resolution: Available; 		$12.08 1
019 16FC125CP
P-CLIP-NORMA-DIA 28 X 15
Row ID: ID__16FC125CP_ContPgHS; Resolution: Available; 		$9.40 1
020 16FB911CP
INTAKE MANIFOLD-CYLINDER HEAD - GASKET
Row ID: ID__16FB911CP_ContPgHS; Resolution: Available; 		- 6 Enquire
021 16FB912CP
INTAKE MANIFOLD-THROTTLE BODY - GASKET
Row ID: ID__16FB912CP_ContPgHS; Resolution: Available; 		- 2 Enquire
