McLaren McLaren Artura - 22 - ENGINE - 22.5 - IC ENGINE - FUEL

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16FB953CP BOLT-CAP HD-TORX-M6X1X65-8.8 $7.13 To Order
Photo Part No Description Price (each) Stock
16FB241CP PUMP-FUEL GDI HDP6 $434.42 To Order
Photo Part No Description Price (each) Stock
16F0157CP ROLLER FOLLOWER-DIA.31MM-GD - PUMP $68.90 To Order
Photo Part No Description Price (each) Stock
16F0161CP CLAMP-FUEL INJECTOR $9.16 To Order
Photo Part No Description Price (each) Stock
16FB778CP INJECTOR-FUEL GDI $220.94 To Order
Photo Part No Description Price (each) Stock
16FC486CP PIPE-FUEL-GDI PUMP TO RAIL LH Enquire To Order
Photo Part No Description Price (each) Stock
16FA014CP BOLT-CLAMP TO FUEL RAIL $9.12 To Order
Photo Part No Description Price (each) Stock
16FA015CP BOLT - FUEL PUMP TO CAM COVER $7.13 To Order
Photo Part No Description Price (each) Stock
16FC485CP PIPE-FUEL-GDI PUMP TO RAIL RH Enquire To Order
Photo Part No Description Price (each) Stock
16FB271CP FUEL STUB PIPE-GDI PUMP $83.78 To Order
Photo Part No Description Price (each) Stock
16FB520CP ARAYMOND - C-CLIP AND LOCKING - 256031-1 $7.46 To Order
Photo Part No Description Price (each) Stock
16FC746CP ASSY FUEL PIPE-VEHICLE TO GDI PUMPS Enquire To Order
Photo Part No Description Price (each) Stock
16FB519CP ARAYMOND - C-CLIP AND LOCKING - 256030-1 $7.46 To Order
Photo Part No Description Price (each) Stock
16FB395CP CLIP - DOUBLE SUPPORT $7.46 To Order
Photo Part No Description Price (each) Stock
16FB518CP ARAYMOND - C-CLIP AND TIE - 256029-1 $7.46 To Order
Photo Part No Description Price (each) Stock
16FB603CP ASSY-FUEL RAIL GDI-RH $927.06 To Order
Photo Part No Description Price (each) Stock
16FB604CP ASSY-FUEL RAIL GDI-LH $927.06 To Order
Photo Part No Description Price (each) Stock
16FB275CP SEAL INTERFACE INJECTOR $18.10 To Order
Photo Part No Description Price (each) Stock
16FB392CP BRKT - LP FUEL PIPE + HARNESS $37.52 To Order
Photo Part No Description Price (each) Stock
16FB515CP BLT-TORX HD-FL-M6X10TX30-8.8 $8.85 To Order
16FB304CP SCR-BTN HD-HX-FL-M6X1X10-8.8 - 85 Enquire To Order
Photo Part No Description Price (each) Stock
16FC135CP BOLT - M6X12 - HEX $8.43 To Order
Photo Part No Description Price (each) Stock
16FB660CP BLT-M5X8-CH-TX25-8.8 $6.90 To Order
Photo Part No Description Price (each) Stock
16FB910CP FUEL INJECTOR-RING SEAL $34.43 To Order
Photo Part No Description Price (each) Stock
16FC016CP SLEEVE INJECTOR-FUEL GDI Enquire To Order
Photo Part No Description Price (each) Stock
16FB522CP P-CLIP-NORMA-DIA 26 X 15 Enquire To Order
View All

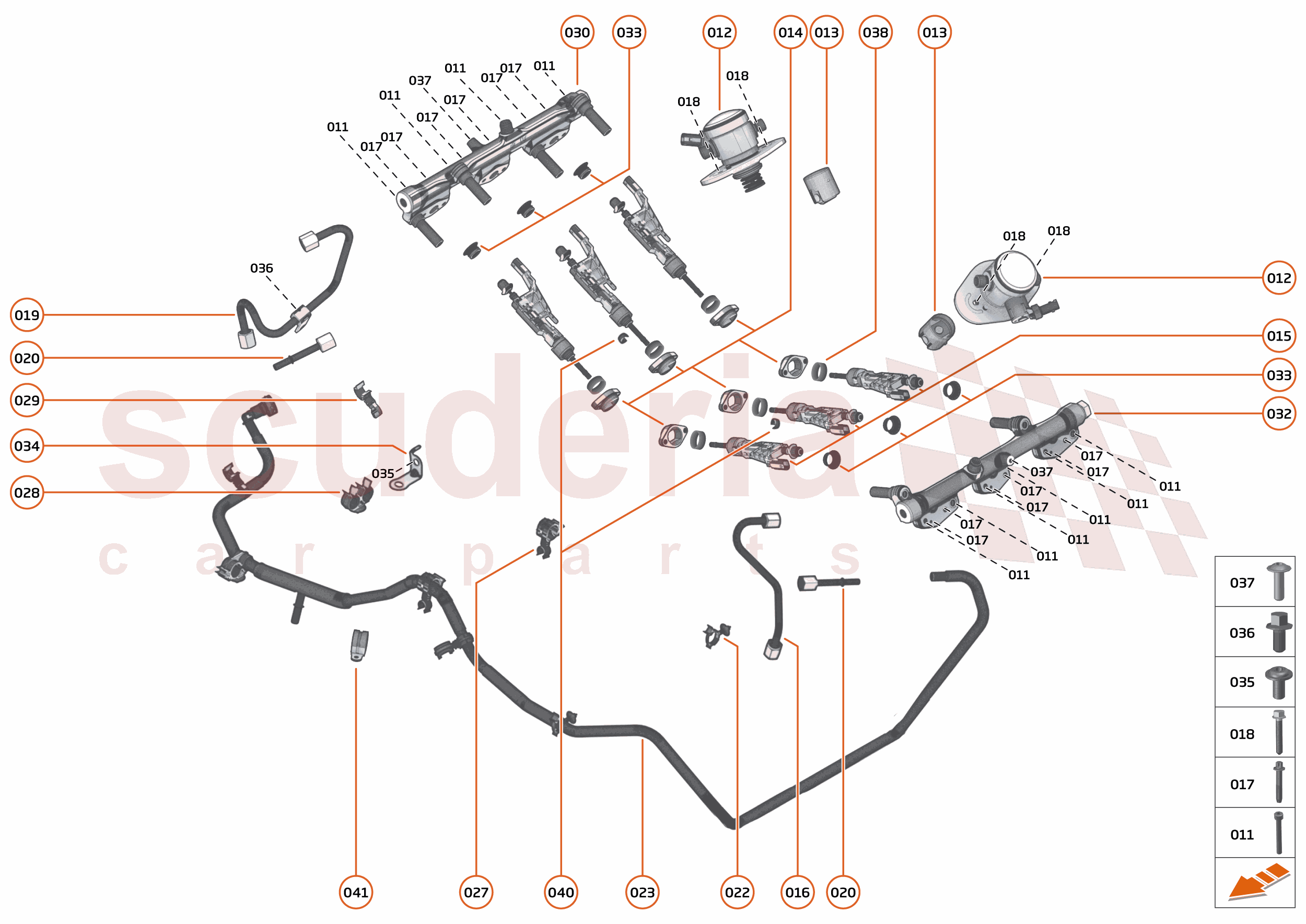

22 - ENGINE - 22.5 - IC ENGINE - FUEL of McLaren McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
011 16FB953CP
BOLT-CAP HD-TORX-M6X1X65-8.8
Row ID: ID__16FB953CP_ContPgHS; Resolution: Available; 		$7.13 8
012 16FB241CP
PUMP-FUEL GDI HDP6
Row ID: ID__16FB241CP_ContPgHS; Resolution: Available; 		$434.42 2
013 16F0157CP
ROLLER FOLLOWER-DIA.31MM-GD - PUMP
Row ID: ID__16F0157CP_ContPgHS; Resolution: Available; 		$68.90 2
014 16F0161CP
CLAMP-FUEL INJECTOR
Row ID: ID__16F0161CP_ContPgHS; Resolution: Available; 		$9.16 6
015 16FB778CP
INJECTOR-FUEL GDI
Row ID: ID__16FB778CP_ContPgHS; Resolution: Available; 		$220.94 6
016 16FC486CP
PIPE-FUEL-GDI PUMP TO RAIL LH
Row ID: ID__16FC486CP_ContPgHS; Resolution: Available; 		- 1 Enquire
017 16FA014CP
BOLT-CLAMP TO FUEL RAIL
Row ID: ID__16FA014CP_ContPgHS; Resolution: Available; 		$9.12 12
018 16FA015CP
BOLT - FUEL PUMP TO CAM COVER
Row ID: ID__16FA015CP_ContPgHS; Resolution: Available; 		$7.13 4
019 16FC485CP
PIPE-FUEL-GDI PUMP TO RAIL RH
Row ID: ID__16FC485CP_ContPgHS; Resolution: Available; 		- 1 Enquire
020 16FB271CP
FUEL STUB PIPE-GDI PUMP
Row ID: ID__16FB271CP_ContPgHS; Resolution: Available; 		$83.78 2
022 16FB520CP
ARAYMOND - C-CLIP AND LOCKING - 256031-1
Row ID: ID__16FB520CP_ContPgHS; Resolution: Available; 		$7.46 1
023 16FC746CP
ASSY FUEL PIPE-VEHICLE TO GDI PUMPS
Row ID: ID__16FC746CP_ContPgHS; Resolution: Available; 		- 1 Enquire
027 16FB519CP
ARAYMOND - C-CLIP AND LOCKING - 256030-1
Row ID: ID__16FB519CP_ContPgHS; Resolution: Available; 		$7.46 1
028 16FB395CP
CLIP - DOUBLE SUPPORT
Row ID: ID__16FB395CP_ContPgHS; Resolution: Available; 		$7.46 1
029 16FB518CP
ARAYMOND - C-CLIP AND TIE - 256029-1
Row ID: ID__16FB518CP_ContPgHS; Resolution: Available; 		$7.46 1
030 16FB603CP
ASSY-FUEL RAIL GDI-RH
Row ID: ID__16FB603CP_ContPgHS; Resolution: Available; 		$927.06 1
032 16FB604CP
ASSY-FUEL RAIL GDI-LH
Row ID: ID__16FB604CP_ContPgHS; Resolution: Available; 		$927.06 1
033 16FB275CP
SEAL INTERFACE INJECTOR
Row ID: ID__16FB275CP_ContPgHS; Resolution: Available; 		$18.10 6
034 16FB392CP
BRKT - LP FUEL PIPE + HARNESS
Row ID: ID__16FB392CP_ContPgHS; Resolution: Available; 		$37.52 1
035 16FB515CP
BLT-TORX HD-FL-M6X10TX30-8.8
Row ID: ID__16FB515CP_ContPgHS; Resolution: Available; 		$8.85 1
035 16FB304CP
SCR-BTN HD-HX-FL-M6X1X10-8.8 - 85
Row ID: ID__16FB304CP_ContPgHS; Resolution: Available; 		- 1 Enquire
036 16FC135CP
BOLT - M6X12 - HEX
Row ID: ID__16FC135CP_ContPgHS; Resolution: Available; 		$8.43 1
037 16FB660CP
BLT-M5X8-CH-TX25-8.8
Row ID: ID__16FB660CP_ContPgHS; Resolution: Available; 		$6.90 2
038 16FB910CP
FUEL INJECTOR-RING SEAL
Row ID: ID__16FB910CP_ContPgHS; Resolution: Available; 		$34.43 6
040 16FC016CP
SLEEVE INJECTOR-FUEL GDI
Row ID: ID__16FC016CP_ContPgHS; Resolution: Available; 		- 2 Enquire
041 16FB522CP
P-CLIP-NORMA-DIA 26 X 15
Row ID: ID__16FB522CP_ContPgHS; Resolution: Available; 		- 1 Enquire
