23 - Engine - 23.1 - System - Cranktrain

McLaren McLaren Artura

Find Your Part

McLaren McLaren Artura - 23 - ENGINE - 23.1 - SYSTEM - CRANKTRAIN

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16FB542CP ASSY-CRANKSHAFT $2,780.43 To Order
Photo Part No Description Price (each) Stock
16FC105CP ASSY CONNECTING ROD $222.06 To Order
Photo Part No Description Price (each) Stock
16FA314CP BOLT-CONNECTING ROD Enquire To Order
Photo Part No Description Price (each) Stock
16FB104CP ASSY PISTON LH $365.75 To Order
Photo Part No Description Price (each) Stock
16FB112CP CIRCLIP - PISTON Enquire To Order
Photo Part No Description Price (each) Stock
16FB105CP ASSY PISTON RH $365.75 To Order
Photo Part No Description Price (each) Stock
16FB709CP DAMPER - TV - VISCOUS $765.83 To Order
Photo Part No Description Price (each) Stock
16FC640CP FRONT CRANK SEAL - TRELLEBORG 4085 Enquire To Order
Photo Part No Description Price (each) Stock
16FA803CP SPROCKET-BALANCE SHAFT $76.26 To Order
Photo Part No Description Price (each) Stock
16F0103CP WASHER-THRUST $19.68 To Order
Photo Part No Description Price (each) Stock
16F0104CP BEARING-MAIN UPR $42.28 To Order
Photo Part No Description Price (each) Stock
16F0105CP BEARING-MAIN LWR $39.63 To Order
Photo Part No Description Price (each) Stock
16FB298CP BEARING-BIG END NO CROWNING $33.16 To Order
Photo Part No Description Price (each) Stock
16FA576CP BOLT - BALANCE SHAFT $11.82 To Order
Photo Part No Description Price (each) Stock
16FA609CP PILOT BEARING - TRANSMISSION - SHAFT $31.32 To Order
Photo Part No Description Price (each) Stock
16FA804CP ASSY-BALANCE SHAFT $184.74 To Order
Photo Part No Description Price (each) Stock
16FA805CP GEAR-BALANCE SHAFT $152.00 To Order
Photo Part No Description Price (each) Stock
16FC678CP FLYWHEEL BOLT TX LW HD M10X20 - PRECOTE Enquire To Order
Photo Part No Description Price (each) Stock
16GA436CP K0 CLUTCH FLYWHEEL Enquire To Order
View All

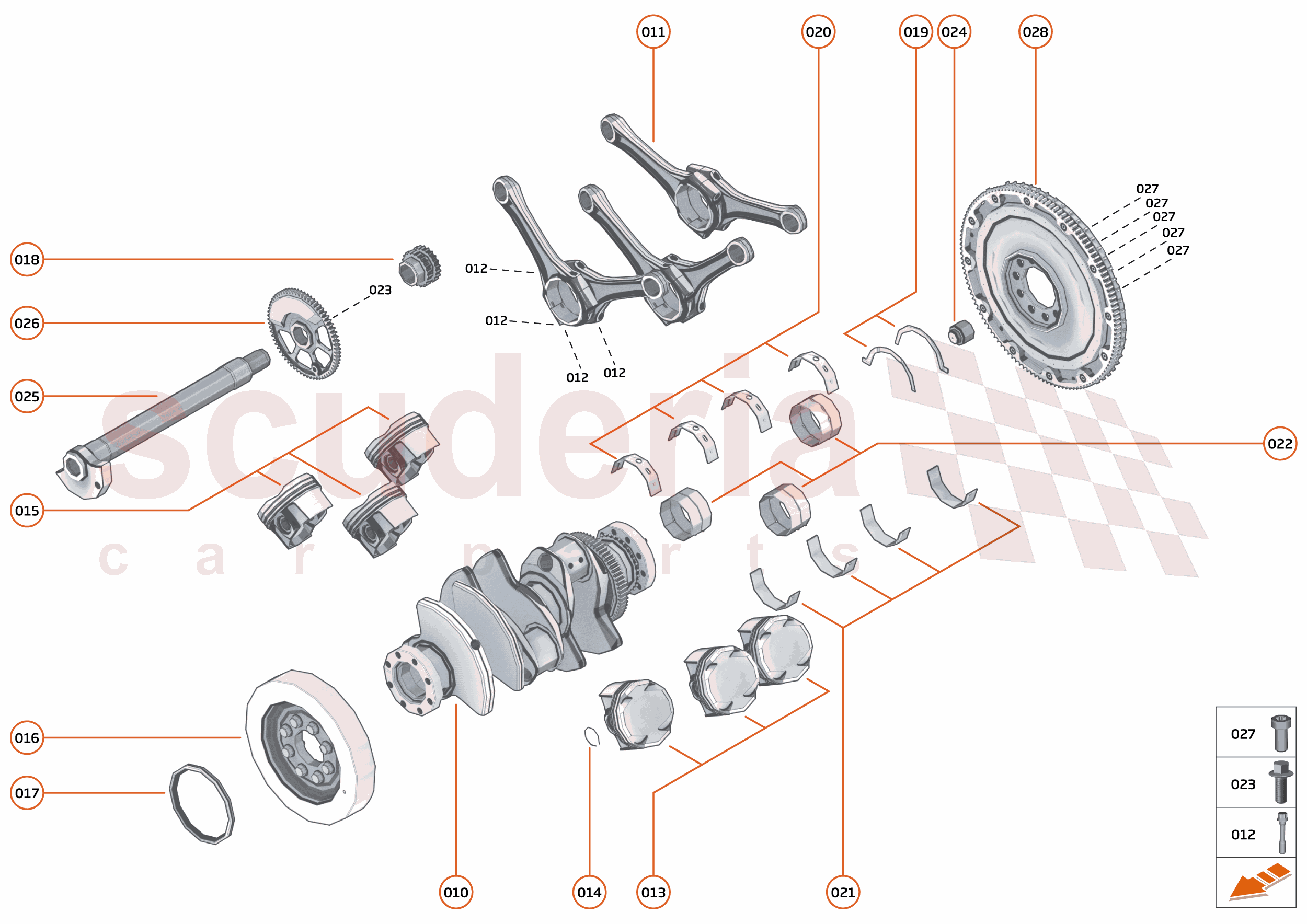

23 - ENGINE - 23.1 - SYSTEM - CRANKTRAIN of McLaren McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16FB542CP
ASSY-CRANKSHAFT
Row ID: ID__16FB542CP_ContPgHS; Resolution: Available; 		$2,780.43 1
011 16FC105CP
ASSY CONNECTING ROD
Row ID: ID__16FC105CP_ContPgHS; Resolution: Available; 		$222.06 6
012 16FA314CP
BOLT-CONNECTING ROD
Row ID: ID__16FA314CP_ContPgHS; Resolution: Available; 		- - Enquire
013 16FB104CP
ASSY PISTON LH
Row ID: ID__16FB104CP_ContPgHS; Resolution: Available; 		$365.75 3
014 16FB112CP
CIRCLIP - PISTON
Row ID: ID__16FB112CP_ContPgHS; Resolution: Available; 		- - Enquire
015 16FB105CP
ASSY PISTON RH
Row ID: ID__16FB105CP_ContPgHS; Resolution: Available; 		$365.75 3
016 16FB709CP
DAMPER - TV - VISCOUS
Row ID: ID__16FB709CP_ContPgHS; Resolution: Available; 		$765.83 1
017 16FC640CP
FRONT CRANK SEAL - TRELLEBORG 4085
Row ID: ID__16FC640CP_ContPgHS; Resolution: Available; 		- 1 Enquire
018 16FA803CP
SPROCKET-BALANCE SHAFT
Row ID: ID__16FA803CP_ContPgHS; Resolution: Available; 		$76.26 1
019 16F0103CP
WASHER-THRUST
Row ID: ID__16F0103CP_ContPgHS; Resolution: Available; 		$19.68 2
020 16F0104CP
BEARING-MAIN UPR
Row ID: ID__16F0104CP_ContPgHS; Resolution: Available; 		$42.28 4
021 16F0105CP
BEARING-MAIN LWR
Row ID: ID__16F0105CP_ContPgHS; Resolution: Available; 		$39.63 4
022 16FB298CP
BEARING-BIG END NO CROWNING
Row ID: ID__16FB298CP_ContPgHS; Resolution: Available; 		$33.16 12
023 16FA576CP
BOLT - BALANCE SHAFT
Row ID: ID__16FA576CP_ContPgHS; Resolution: Available; 		$11.82 1
024 16FA609CP
PILOT BEARING - TRANSMISSION - SHAFT
Row ID: ID__16FA609CP_ContPgHS; Resolution: Available; 		$31.32 1
025 16FA804CP
ASSY-BALANCE SHAFT
Row ID: ID__16FA804CP_ContPgHS; Resolution: Available; 		$184.74 1
026 16FA805CP
GEAR-BALANCE SHAFT
Row ID: ID__16FA805CP_ContPgHS; Resolution: Available; 		$152.00 1
027 16FC678CP
FLYWHEEL BOLT TX LW HD M10X20 - PRECOTE
Row ID: ID__16FC678CP_ContPgHS; Resolution: Available; 		- 10 Enquire
028 16GA436CP
K0 CLUTCH FLYWHEEL
Row ID: ID__16GA436CP_ContPgHS; Resolution: Available; 		- 1 Enquire
029 11F1914CP
DOWEL- PIN- 6 X 14 LG
Row ID: ID__11F1914CP_ContPgHS; Resolution: Available; 		- 1 Enquire
