Windshield Wiper of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

Lamborghini Murcielago LP640 Roadster - Windshield Wiper

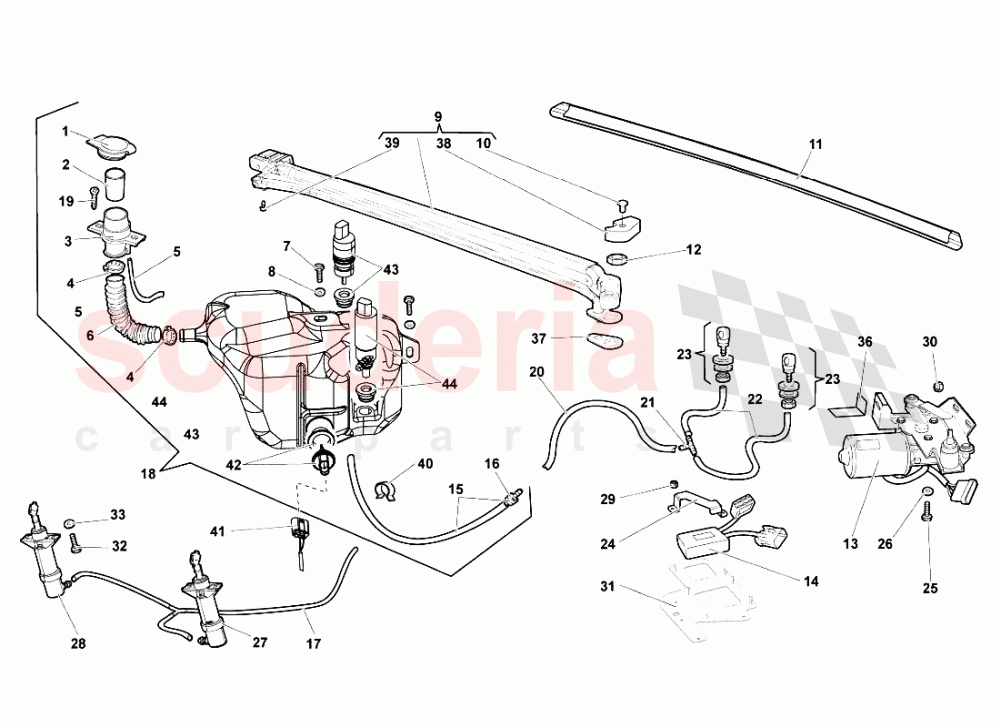

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400955277	END CAP	400955277 END CAP	-	1	Enquire
002	8N0955485	STRAINER	8N0955485 STRAINER	-	1	Enquire
003	400955459	HOLDER FOR FILLER PIPE	400955459 HOLDER FOR FILLER PIPE	-	1	Enquire
004	400955973	HOSE CLAMP	400955973 HOSE CLAMP	-	2	Enquire
005	400955197	BREATHER PIPE	400955197 BREATHER PIPE	-	1	Enquire
006	400955944	PIPE	400955944 PIPE	-	1	Enquire
007	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT	-	2	Enquire
008	WHT002961	WASHER	WHT002961 WASHER	-	2	Enquire
009	417955703	WIPER ARM ASSEMBLY	417955703 WIPER ARM ASSEMBLY	-	1	Enquire
010	WHT003302	SCREW M4X6	WHT003302 SCREW M4X6	-	1	Enquire
011	401955425C	WINDSCREEN WIPER BLADE	401955425C WINDSCREEN WIPER BLADE LHD	-	1	Enquire
012	WHT003571	NUT M8	WHT003571 NUT M8	-	1	Enquire
013	417955023D	LINKAGE GEARMOTOR ASSEMBLY	417955023D LINKAGE GEARMOTOR ASSEMBLY	-	1	Enquire
014	410906015B	WINDSCREEN WIPER TIMER	410906015B WINDSCREEN WIPER TIMER	-	1	Enquire
015	400955964	PIPE/CHECK VALVE	400955964 PIPE/CHECK VALVE	-	1	Enquire
016	113955975C	VALVE	113955975C VALVE	-	1	Enquire
017	410955175	PIPES/CONNECTORS SET FOR HEADLIGHT WASHERS	410955175 PIPES/CONNECTORS SET FOR HEADLIGHT WASHERS	-	1	Enquire
018	400955448	WASHER RESERVOIR ASSEMBLY	400955448 WASHER RESERVOIR ASSEMBLY	-	1	Enquire
019	WHT003563	SCREW M6X14	WHT003563 SCREW M6X14	-	2	Enquire
020	410955972	PIPE	410955972 PIPE	-	1	Enquire
021	7L133579	T-PIECE	7L133579 T-PIECE	-	1	Enquire
022	410955963	PIPE	410955963 PIPE	-	2	Enquire
023	400955985	NOZZLE	400955985 NOZZLE	-	2	Enquire
024	410955931A	BRACKET	410955931A BRACKET	-	1	Enquire
025	N90319404	SCREW	N90319404 SCREW	-	3	Enquire
026	WHT002961	WASHER	WHT002961 WASHER	-	3	Enquire
027	410955985	LH HEADLIGHT WASHER ASSEMBLY	410955985 LH HEADLIGHT WASHER ASSEMBLY	-	1	Enquire
028	410955984	RH HEADLIGHT WASHER ASSEMBLY	410955984 RH HEADLIGHT WASHER ASSEMBLY	-	1	Enquire
029	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	2	Enquire
030	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	2	Enquire
032	WHT003069	SCREW M6X1X20	WHT003069 SCREW M6X1X20	-	4	Enquire
033	WHT002961	WASHER	WHT002961 WASHER	-	4	Enquire
036	7L133031	BRACKET	7L133031 BRACKET	-	1	Enquire
037	413819687	COVER	413819687 COVER	-	1	Enquire
038	413955127	Wiper Arm Cover	413955127 Wiper Arm Cover	-	1	Enquire
039	417955437	PUFFER	417955437 PUFFER	-	1	Enquire
040	477971851	CLAMP	477971851 CLAMP	-	1	Enquire
041	7M0973202	CONNECTOR (SEE TABLE 61.01.00 - SEE REF. 1)	7M0973202 CONNECTOR (SEE TABLE 61.01.00 - SEE REF. 1)	-	1	Enquire
042	400919375	LIQUID LEVEL SENSOR	400919375 LIQUID LEVEL SENSOR	-	1	Enquire
043	400955647	WIPER PUMP	400955647 WIPER PUMP	-	1	Enquire
044	400955649	PUMP FOR HEADLIGHT WASHERS	400955649 PUMP FOR HEADLIGHT WASHERS	-	1	Enquire
