Lamborghini Murcielago LP640 Roadster - Frame Elements 3

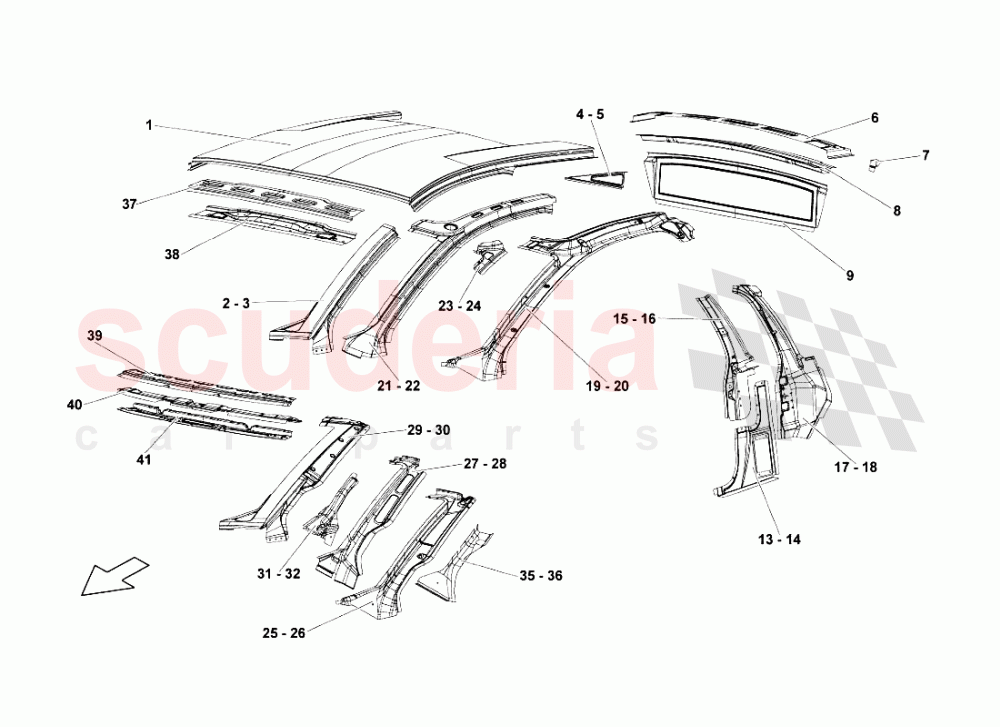

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
013	410802599	LH - SHEET B INNER LOWER	410802599 LH - SHEET B INNER LOWER	$900.55	1
014	410802600	RH - SHEET B INNER LOWER	410802600 RH - SHEET B INNER LOWER	$900.55	1
015	417810743	LH - B PILLAR INNER UPPER	417810743 LH - B PILLAR INNER UPPER	$301.09	1
016	417810744	RH - B PILLAR INNER UPPER	417810744 RH - B PILLAR INNER UPPER	$301.09	1
017	417810771	LH B PILLAR REINFORCEMENT	417810771 LH B PILLAR REINFORCEMENT	$358.87	1
018	417810772	RH B PILLAR REINFORCEMENT	417810772 RH B PILLAR REINFORCEMENT	$415.34	1
025	410867357	LH - A PILLAR INNER UPPER	410867357 LH - A PILLAR INNER UPPER	$465.08	1
026	410867358	RH - A PILLAR INNER UPPER	410867358 RH - A PILLAR INNER UPPER	$465.08	1
027	417810725	LH A PILLAR REINFORCEMENT	417810725 LH A PILLAR REINFORCEMENT	$438.19	1
028	417810726	RH A PILLAR REINFORCEMENT	417810726 RH A PILLAR REINFORCEMENT	$438.19	1
029	417809023	LH OUTER PILLAR FRONT	417809023 LH OUTER PILLAR FRONT	$3,010.75	1
030	417809024	RH OUTER PILLAR FRONT	417809024 RH OUTER PILLAR FRONT	$3,010.75	1
031	417809209	LH - A PILLAR LOWER REINFORCEMENT	417809209 LH - A PILLAR LOWER REINFORCEMENT	$493.28	1
032	417809210	RH - A PILLAR LOWER REINFORCEMENT	417809210 RH - A PILLAR LOWER REINFORCEMENT	$493.28	1
035	417809449	LH - A PILLAR INNER REINFORCEMENT	417809449 LH - A PILLAR INNER REINFORCEMENT	$393.82	1
036	417809450	RH - A PILLAR INNER REINFORCEMENT	417809450 RH - A PILLAR INNER REINFORCEMENT	$393.82	1
039	417845679	WINDSCREEN CROSSMEMBER	417845679 WINDSCREEN CROSSMEMBER	$1,780.93	1
040	417817927	WINDSCREEN CROSSMEMBER REINFORCMENT	417817927 WINDSCREEN CROSSMEMBER REINFORCMENT	$264.79	1
041	417845655	WINDSCREEN CROSSMEMBER INNER	417845655 WINDSCREEN CROSSMEMBER INNER	$265.49	1
