Lamborghini Murcielago LP640 Roadster - Rear Bumpers

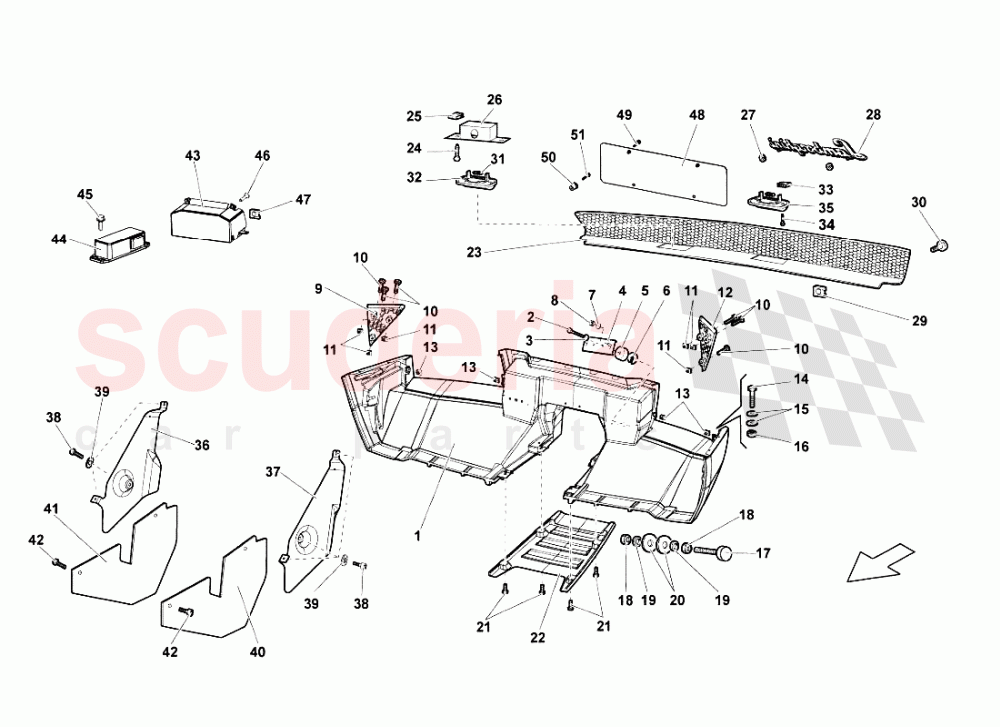

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	410807303	REAR BUMPER ASSEMBLY	410807303 REAR BUMPER ASSEMBLY	-	1	Enquire
002	N10027004	SCREW M8X90	N10027004 SCREW M8X90	-	4	Enquire
003	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	-	4	Enquire
004	410807331	REAR BUMPER FIXING BRACKET ASSEMBLY	410807331 REAR BUMPER FIXING BRACKET ASSEMBLY	-	2	Enquire
005	410807869	REAR BUMPER CENTRAL RUBBER	410807869 REAR BUMPER CENTRAL RUBBER	-	4	Enquire
006	410807255	5.0 MM SHIM	410807255 5.0 MM SHIM	-	4	Enquire
006	410807567	5.0 MM SHIM	410807567 5.0 MM SHIM	-	4	Enquire
007	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	-	4	Enquire
008	N0111849	NUT	N0111849 NUT	-	4	Enquire

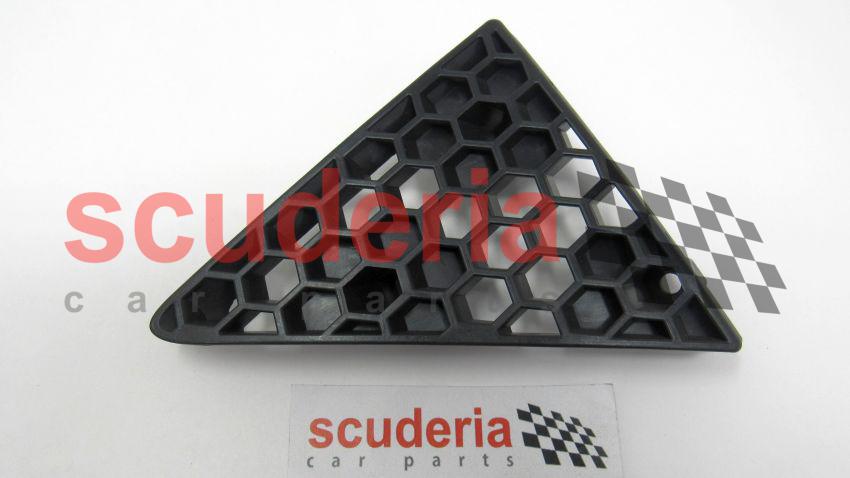

009	410807698	RIGHT GRID	410807698 RIGHT GRID	-	1	Enquire
010	N90659905	SCREW HEX SOCKET M4 X 16	N90659905 SCREW HEX SOCKET M4 X 16	-	6	Enquire
011	N90526602	SPEED NUT	N90526602 SPEED NUT	-	6	Enquire

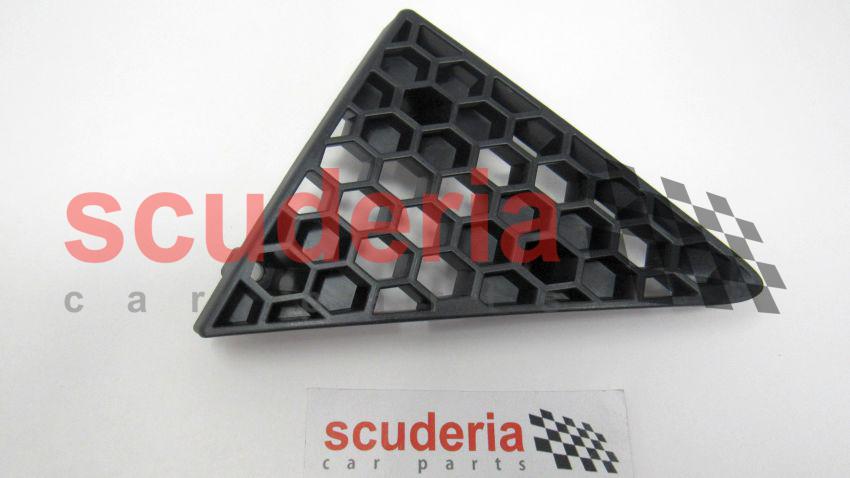

012	410807697	LEFT GRID	410807697 LEFT GRID	-	1	Enquire
013	400821841	CLIP	400821841 CLIP	-	4	Enquire
014	N0402936	HEXAGON BOLT	N0402936 HEXAGON BOLT	-	4	Enquire
015	N91109202	WASHER	N91109202 WASHER	-	8	Enquire
016	N0211963	NUT	N0211963 NUT	-	4	Enquire
017	410807699	JOURNAL	410807699 JOURNAL	-	2	Enquire
018	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	-	2	Enquire
019	N0152785	WASHER	N0152785 WASHER	-	2	Enquire
020	N90840802	WASHER	N90840802 WASHER	-	4	Enquire
021	N90780903	OVAL HEXAGON SOCKET HEAD BOLT	N90780903 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
022	410807649A	GRID	410807649A GRID	-	1	Enquire
023	410807238	REAR LICENSE PLATE LIGHT GRILLE	410807238 REAR LICENSE PLATE LIGHT GRILLE	-	1	Enquire
023	410807238B	REAR LICENSE PLATE LIGHT GRILLE (REAR VIEW CAMERA)	410807238B REAR LICENSE PLATE LIGHT GRILLE (REAR VIEW CAMERA)	-	1	Enquire
024	WHT003065	SCREW (2,9X16)	WHT003065 SCREW (2,9X16)	-	4	Enquire
025	N90834301	CLIP NUT	N90834301 CLIP NUT	-	4	Enquire
026	410807001	BRACKET	410807001 BRACKET	-	2	Enquire
027	4T0853139	CLIP	4T0853139 CLIP	-	2	Enquire
028	400853742B	Lamborghini Lettering	400853742B Lamborghini Lettering	-	1	Enquire
029	N90834301	CLIP NUT	N90834301 CLIP NUT	-	6	Enquire
030	N10247302	OVAL HEAD PANEL SCREW	N10247302 OVAL HEAD PANEL SCREW	-	6	Enquire
031	6617095	LAMP SV8,5-8 5W	6617095 LAMP SV8,5-8 5W	-	4	Enquire

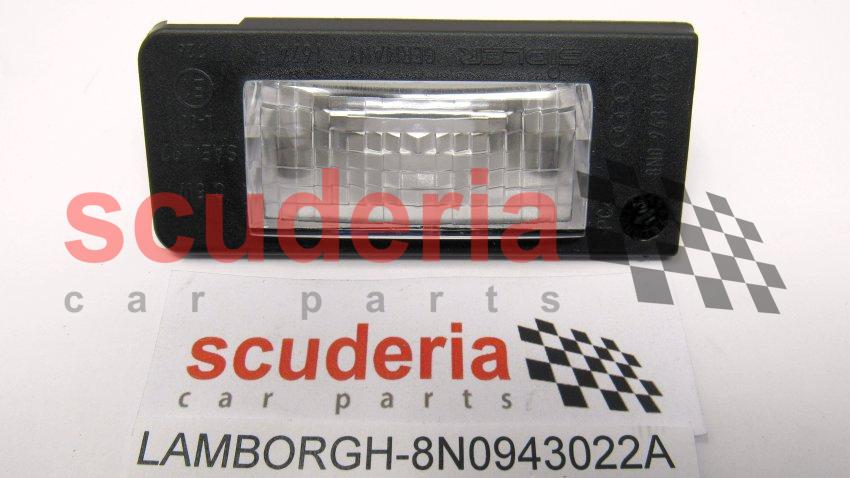

032	8N0943022A	RH License Plate Lamp	8N0943022A RH License Plate Lamp	-	1	Enquire
033	WHT003424	CLIP	WHT003424 CLIP	-	4	Enquire
034	WHT003065	SCREW (2,9X16)	WHT003065 SCREW (2,9X16)	-	4	Enquire

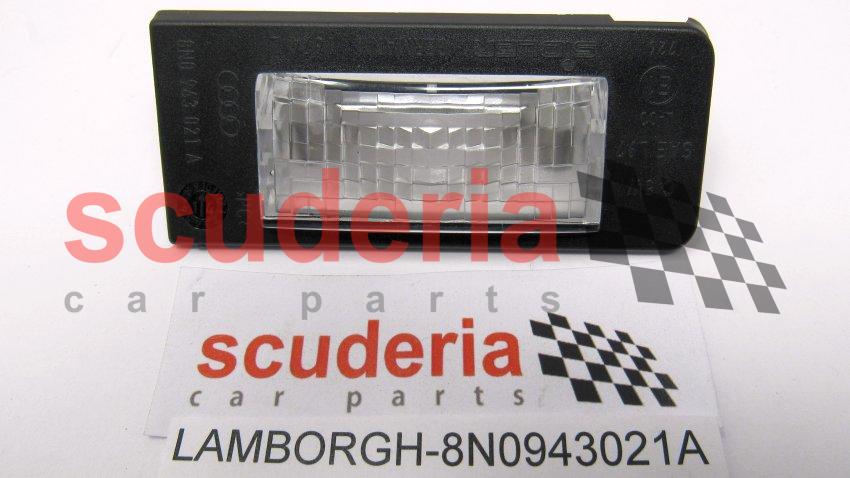

035	8N0943021A	LH License Plate Lamp	8N0943021A LH License Plate Lamp	-	1	Enquire
036	410807516B	RH PANEL	410807516B RH PANEL	-	1	Enquire

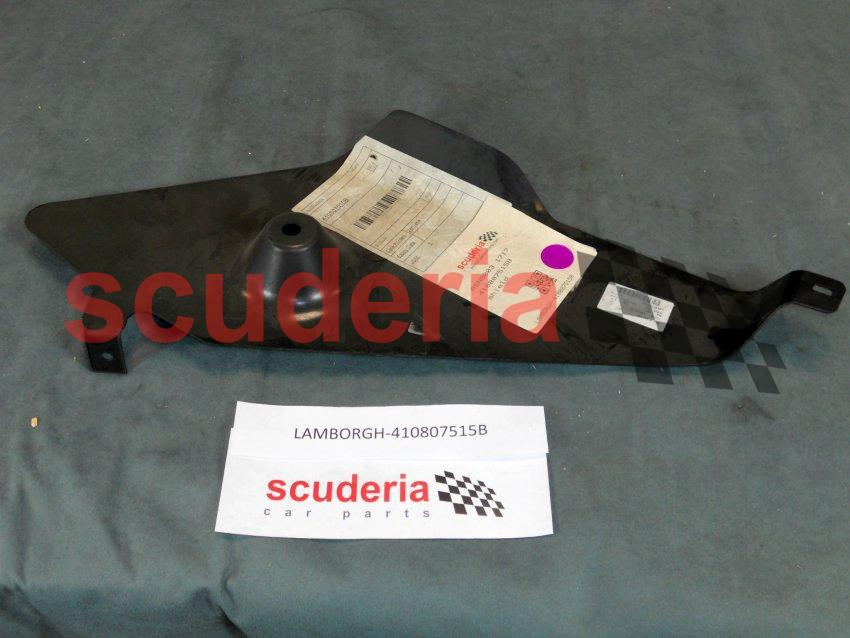

037	410807515B	LH PANEL	410807515B LH PANEL	-	1	Enquire
038	N90319404	SCREW	N90319404 SCREW	-	3	Enquire
039	WHT002961	WASHER	WHT002961 WASHER	-	3	Enquire
040	410863247A	LH INSULATION	410863247A LH INSULATION	-	1	Enquire

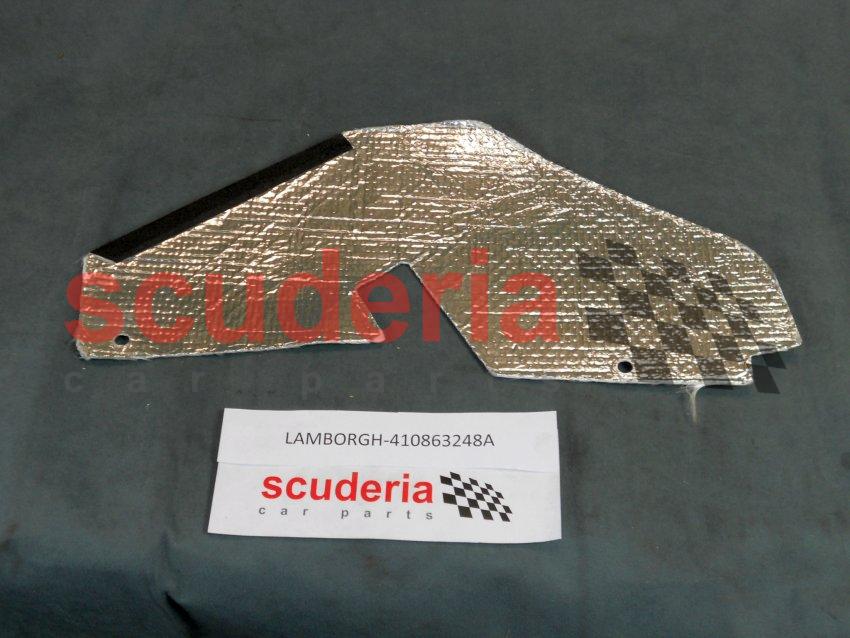

041	410863248A	RH Insulation	410863248A RH Insulation	-	1	Enquire
042	N90319404	SCREW	N90319404 SCREW	-	4	Enquire
043	410980543	REAR VIEW CAMERA	410980543 REAR VIEW CAMERA	-	1	Enquire
044	410907441	REAR VIEW CAMERA CONTROL UNIT	410907441 REAR VIEW CAMERA CONTROL UNIT	-	1	Enquire
045	N10082911	SCREW M6X16	N10082911 SCREW M6X16	-	2	Enquire
046	N90632303	HEXAGON SOCKET HEAD PANEL BOLT	N90632303 HEXAGON SOCKET HEAD PANEL BOLT	-	2	Enquire
047	N90834301	CLIP NUT	N90834301 CLIP NUT	-	2	Enquire
048	400807287	LICENSE PLATE HOLDER (VALID FOR A MARKET CHINESE)	400807287 LICENSE PLATE HOLDER (VALID FOR A MARKET CHINESE)	-	1	Enquire
049	WHT000757	SCREW	WHT000757 SCREW	-	2	Enquire
050	400807995	GROMMET	400807995 GROMMET	-	2	Enquire
051	N10637302	OVAL HEXAGON SOCKET HEAD BOLT	N10637302 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
