Lamborghini Murcielago LP640 Roadster - Front Arms

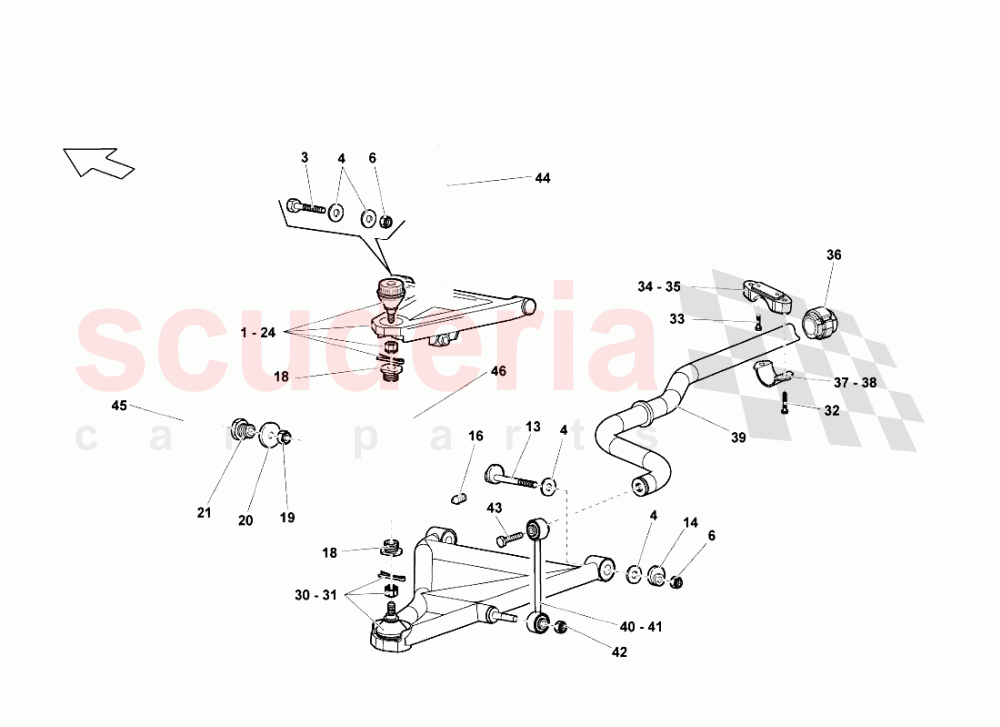

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	410407505B	LH UPPER ARM	410407505B LH UPPER ARM	-	1	Enquire
003	WHT002637	SCREW M12X1,25X75	WHT002637 SCREW M12X1,25X75	-	4	Enquire
004	410407295D	WASHER	410407295D WASHER	-	1	Enquire
004	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM	-	1	Enquire
004	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM	-	1	Enquire
004	410407295A	1.5 MM ADJUSTMENT SHIM	410407295A 1.5 MM ADJUSTMENT SHIM	-	1	Enquire
004	410407295C	2.5 MM ADJUSTMENT SHIM	410407295C 2.5 MM ADJUSTMENT SHIM	-	1	Enquire
006	WHT003461	NUT M12X1.25	WHT003461 NUT M12X1.25	-	4	Enquire
013	410407127A	BOLT	410407127A BOLT	-	4	Enquire
014	410407135A	CAM	410407135A CAM	-	4	Enquire
016	WHT002941	SCREW M6X1X10	WHT002941 SCREW M6X1X10	-	2	Enquire
018	410407171C	BUSH	410407171C BUSH	-	2	Enquire
019	WHT000915	NUT	WHT000915 NUT	-	2	Enquire
020	WHT000919	WASHER	WHT000919 WASHER	-	2	Enquire
021	410419121B	BUSH	410419121B BUSH	-	1	Enquire
024	410407506B	RH UPPER ARM	410407506B RH UPPER ARM	-	1	Enquire
030	410407151B	LH LOWER ARM	410407151B LH LOWER ARM	-	1	Enquire
031	410407152B	RH LOWER ARM	410407152B RH LOWER ARM	-	1	Enquire
032	N10049308	HEXAGON HEAD BOLT (COMBI)	N10049308 HEXAGON HEAD BOLT (COMBI)	-	4	Enquire
033	N10713801	SCREW M6X16	N10713801 SCREW M6X16	-	4	Enquire
034	400411031N	U-BOLT (RIGHT-HAND)	400411031N U-BOLT (RIGHT-HAND)	-	1	Enquire
035	400411031N	U-BOLT (RIGHT-HAND)	400411031N U-BOLT (RIGHT-HAND)	-	1	Enquire
036	4D0411327G	BUSHING	4D0411327G BUSHING	-	2	Enquire
037	4D0411336G	CLAMP	4D0411336G CLAMP	-	1	Enquire
038	4D0411336G	CLAMP	4D0411336G CLAMP	-	1	Enquire
039	410411309A	STABILIZER BAR	410411309A STABILIZER BAR	-	1	Enquire
040	410411317B	CONNECTING ROD (RIGHT-HAND)	410411317B CONNECTING ROD (RIGHT-HAND)	-	1	Enquire
041	410411317A	CONNECTING ROD (LEFT)	410411317A CONNECTING ROD (LEFT)	-	1	Enquire
042	N10286110	HEXAGON COLLAR NUT SELF-LOCKING	N10286110 HEXAGON COLLAR NUT SELF-LOCKING	-	2	Enquire
043	N10699401	HEXAGON BOLT M10 X 50	N10699401 HEXAGON BOLT M10 X 50	-	2	Enquire
