Rear Arms of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

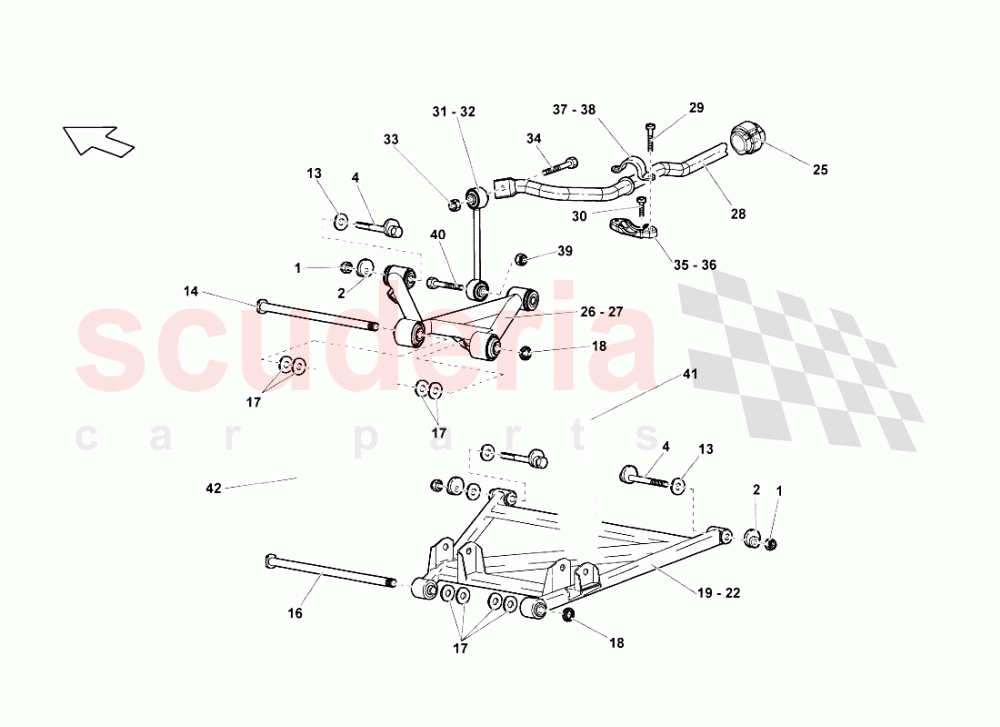

Lamborghini Murcielago LP640 Roadster - Rear Arms

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	WHT003461	NUT M12X1.25 IN STOCK	WHT003461 NUT M12X1.25 IN STOCK	$2.35	8
002	410407135A	CAM	410407135A CAM	$82.67	8
004	410407127A	BOLT	410407127A BOLT	$2,318.56	8
013	410407295D	WASHER	410407295D WASHER	$29.71	1
013	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM	$4.52	1
013	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM	$6.66	1
013	410407295A	1.5 MM ADJUSTMENT SHIM	410407295A 1.5 MM ADJUSTMENT SHIM	$6.77	1
013	410407295C	2.5 MM ADJUSTMENT SHIM	410407295C 2.5 MM ADJUSTMENT SHIM	$7.32	1
014	410505109	JOURNAL	410505109 JOURNAL	$236.38	2
016	410505110	JOURNAL	410505110 JOURNAL	$235.22	2
017	400407739	1.0 MM SHIM IN STOCK	400407739 1.0 MM SHIM IN STOCK	$3.55	24
017	400407749	0.5 MM SHIM IN STOCK	400407749 0.5 MM SHIM IN STOCK	$3.16	24
017	400407742	2.0 MM SHIM IN STOCK	400407742 2.0 MM SHIM IN STOCK	$4.64	24
017	400407740	1.5 MM SHIM IN STOCK	400407740 1.5 MM SHIM IN STOCK	$4.06	24
018	N10268603	NUT M14X1,5	N10268603 NUT M14X1,5	$6.61	4
019	410505311	LH LOWER ARM	410505311 LH LOWER ARM	$3,709.67	1
022	410505312	RH LOWER ARM	410505312 RH LOWER ARM	$3,709.67	1
025	4D0411327J	RUBBER BUSH IN STOCK	4D0411327J RUBBER BUSH IN STOCK	$181.16	2
026	410505324B	RH UPPER ARM	410505324B RH UPPER ARM	$3,508.07	1
027	410505323B	LH UPPER ARM	410505323B LH UPPER ARM	$3,508.07	1
028	410511409A	STABILIZER BAR	410511409A STABILIZER BAR	$2,520.16	1
029	N10049308	HEXAGON HEAD BOLT (COMBI) IN STOCK	N10049308 HEXAGON HEAD BOLT (COMBI) IN STOCK	$1.74	4
030	N10713801	SCREW M6X16	N10713801 SCREW M6X16	$6.52	4
031	410505465	CONNECTING ROD (RIGHT-HAND)	410505465 CONNECTING ROD (RIGHT-HAND)	$237.88	1
032	410505465	CONNECTING ROD (RIGHT-HAND)	410505465 CONNECTING ROD (RIGHT-HAND)	$237.88	1
033	N10286110	HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	N10286110 HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	$2.29 MSRP: ~~7.21~~ (68.2% off)	2
034	N10570702	SCREW M10X60	N10570702 SCREW M10X60	$4.10	2
035	400411031N	U-BOLT (RIGHT-HAND)	400411031N U-BOLT (RIGHT-HAND)	$95.30	1
036	400411031N	U-BOLT (RIGHT-HAND)	400411031N U-BOLT (RIGHT-HAND)	$95.30	1
037	4D0411336G	CLAMP	4D0411336G CLAMP	$5.85	1
038	4D0411336G	CLAMP	4D0411336G CLAMP	$5.85	1
039	N10286110	HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	N10286110 HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	$2.29 MSRP: ~~7.21~~ (68.2% off)	2
040	N10570702	SCREW M10X60	N10570702 SCREW M10X60	$4.10	2
