Doors 1 of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

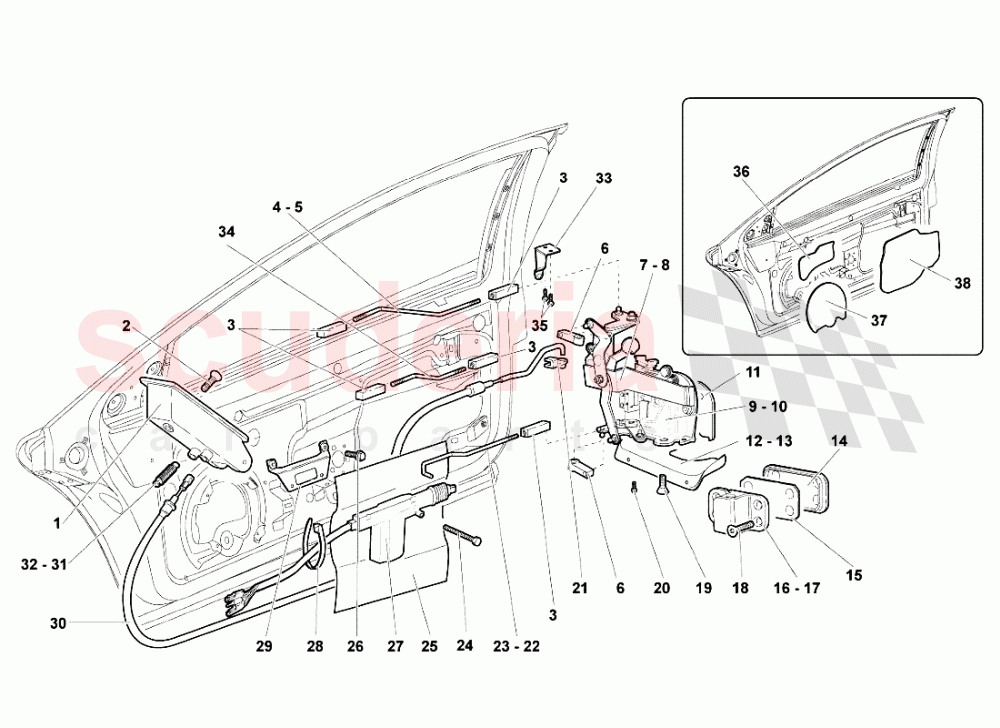

Lamborghini Murcielago LP640 Roadster - Doors 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	417837293	HANDLE	417837293 HANDLE	-	2	Enquire
002	WHT003068	COUNTERSUNK BOLT	WHT003068 COUNTERSUNK BOLT	-	2	Enquire
003	410837261	PAWL	410837261 PAWL	-	5	Enquire
005	410837237A	LEFT TIE ROD	410837237A LEFT TIE ROD	-	1	Enquire
006	410837299	PAWL	410837299 PAWL	-	2	Enquire
007	410837161	LEFT LOCK LEVER SUPPORTING BRACKET ASSEMBLY	410837161 LEFT LOCK LEVER SUPPORTING BRACKET ASSEMBLY	-	1	Enquire
008	410837162A	RIGHT LEVER SUPPORTING BRACKET ASSEMBLY	410837162A RIGHT LEVER SUPPORTING BRACKET ASSEMBLY	-	1	Enquire
009	417837011C	LH LOCK	417837011C LH LOCK	-	1	Enquire
010	417837012C	RH LOCK	417837012C RH LOCK	-	1	Enquire
011	600940141	GASKET KIT (LH - RH)	600940141 GASKET KIT (LH - RH)	-	1	Enquire
012	410837902	RH ORNAMENT	410837902 RH ORNAMENT	-	1	Enquire
013	410837901	LH ORNAMENT	410837901 LH ORNAMENT	-	1	Enquire
014	410837899	ORNAMENT	410837899 ORNAMENT	-	2	Enquire
015	410837963	SPACER	410837963 SPACER	-	2	Enquire
015	410837964	SPACER	410837964 SPACER	-	2	Enquire
016	410831408A	Hinge Half Right hand	410831408A Hinge Half Right hand	-	1	Enquire
017	410831407A	Hinge Half Left Hand	410831407A Hinge Half Left Hand	-	1	Enquire
018	N10711501	SCREW M6X20	N10711501 SCREW M6X20	-	4	Enquire
019	WHT003068	COUNTERSUNK BOLT	WHT003068 COUNTERSUNK BOLT	-	4	Enquire
020	WHT003065	SCREW (2,9X16)	WHT003065 SCREW (2,9X16)	-	4	Enquire
021	410837230	SECURING ELEMENT	410837230 SECURING ELEMENT	-	2	Enquire
022	410837654	RIGHT TIE ROD	410837654 RIGHT TIE ROD	-	1	Enquire
023	410837653	LEFT TIE ROD	410837653 LEFT TIE ROD	-	1	Enquire
024	WHT003575	SCREW 4.2X19	WHT003575 SCREW 4.2X19	-	2	Enquire
025	410837909	PROTECTION	410837909 PROTECTION	-	2	Enquire
026	N90319404	SCREW	N90319404 SCREW	-	2	Enquire
027	410837122	ACTUATOR	410837122 ACTUATOR	-	2	Enquire
028	893971850C	CABLE TIES	893971850C CABLE TIES	-	2	Enquire
029	410837467	BRACKET	410837467 BRACKET	-	1	Enquire
030	410837018	DOOR OPENING CABLE ASSEMBLY	410837018 DOOR OPENING CABLE ASSEMBLY	-	1	Enquire
031	410837723	LH SPRING	410837723 LH SPRING	-	1	Enquire
032	410837724	RH SPRING	410837724 RH SPRING	-	1	Enquire
033	410837226A	LEVER	410837226A LEVER	-	2	Enquire
034	410837511	TIE ROD	410837511 TIE ROD	-	1	Enquire
035	WHT003370	SCREW	WHT003370 SCREW	-	2	Enquire
036	410867253	PROTECTION	410867253 PROTECTION	-	2	Enquire
037	410867254	PROTECTION	410867254 PROTECTION	-	2	Enquire
038	410867254A	RH PROTECTION	410867254A RH PROTECTION	-	1	Enquire
038	410867253A	LH PROTECTION	410867253A LH PROTECTION	-	1	Enquire
