Doors 3

Lamborghini Murcielago LP640 Roadster

Find Your Part

Lamborghini Murcielago LP640 Roadster - Doors 3

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

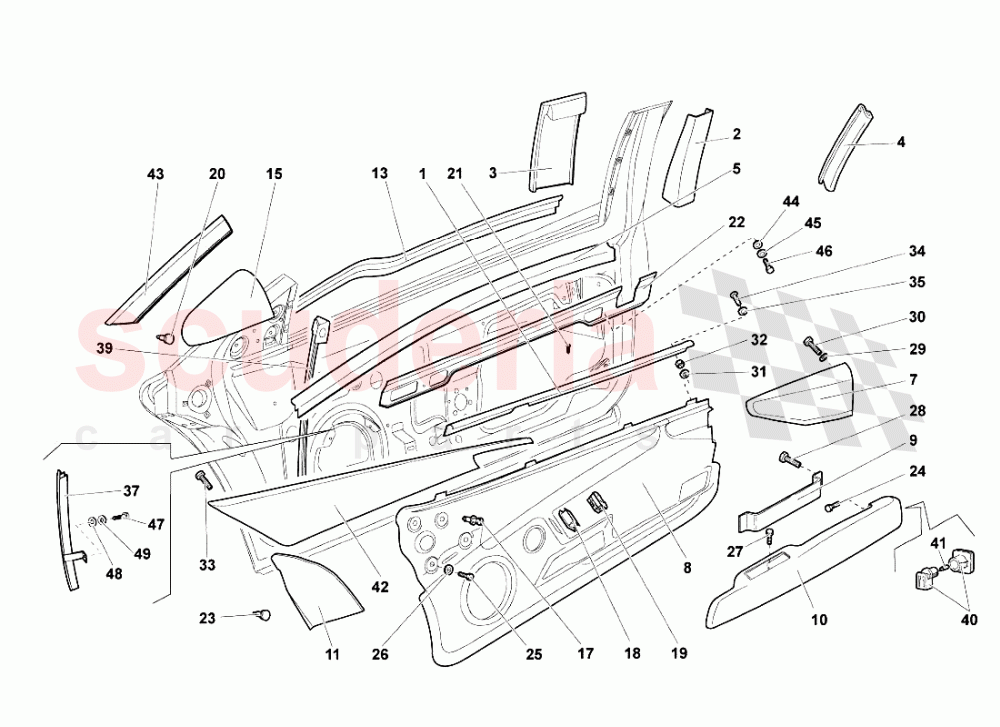

Doors 3 of Lamborghini Lamborghini Murcielago LP640 Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410868628
STOP 		$455.66 1
001 410868627
STOP 		$123.64 1
002 410868417
UPHOLSTERY ON INSIDE LEFT PILLAR (Supply VIN) 		$438.19 1
002 410868418
UPHOLSTERY ON INSIDE RIGHT PILLAR (Supply VIN) 		$357.54 1
003 417868336A
RIGHT PROFILE 		$2,345.42 1
003 417868335A
LEFT PROFILE 		$2,345.42 1
004 417837530
GASKET 		$66.55 1
005 410868383
DOOR WINDOWS INTERIOR WATER DEFLUXION PROFILE 		$85.76 1
007 417868109
LEFT DOOR UPHOLSTERY (LEATHER INTERIOR - SUPPLY VIN) 		$171.37 1
007 417868110
RIGHT DOOR UPHOLSTERY (LEATHER INTERIOR - SUPPLY VIN) 		$170.04 1
007 417868109A
LEFT DOOR UPHOLSTERY (LP 650-4 - SUPPLY VIN) 		- 1 Enquire
007 417868110B
RIGHT DOOR UPHOLSTERY (LP 650-4 - SUPPLY VIN) 		- 1 Enquire
008 417867015E
LH DOOR PANEL ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN 		$1,599.47 1
008 417867014B
RH DOOR PANEL ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$1,599.47 1
008 417867015B
LH DOOR PANEL ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$1,599.47 1
008 417867015D
LH DOOR PANEL ASSEMBLY (RHOMBUS STYLE - SUPPLY VIN) 		$1,599.47 1
008 417867015C
LH DOOR PANEL ASSEMBLY (PERFORATED LEATHER INTERIOR -SUPPLY VIN) 		$1,599.47 1
008 417867014E
RH DOOR PANEL ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		$1,599.47 1
008 417867014D
RH DOOR PANEL ASSEMBLY (RHOMBUS STYLE - SUPPLY VIN) 		$1,599.47 1
009 410868099
LH TRIM HANDLE (LEATHER INTERIOR - SUPPLY VIN) 		$161.28 1
009 410868099A
LH TRIM HANDLE (PERFORATED LEATHER INTERIOR - SUPPLY VIN) 		- 1 Enquire
009 410868100
RH TRIM HANDLE (LEATHER INTERIOR - SUPPLY VIN) 		$354.85 1
010 410867158B
RIGHT HANDLE ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$411.30 1
010 410867158D
RIGHT HANDLE ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
010 410867157B
LEFT HANDLE ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$424.73 1
010 410867157C
LEFT HANDLE ASSEMBLY (PERFORATED LEATHER INTERIOR -SUPPLY VIN) 		- 1 Enquire
010 410867157D
LEFT HANDLE ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		- 1 Enquire
011 417867118
RIGHT PANEL FRONT COVER ASSEMBLY (LEATHER INTERIOR -SUPPLY VIN) 		$376.35 1
011 417867117
LEFT PANEL FRONT COVER ASSEMBLY (LEATHER INTERIOR -SUPPLY VIN) 		$505.37 1
011 417867117A
LEFT PANEL FRONT COVER ASSEMBLY (PERFORATED LEATHER INTERIOR - SUPPLY VIN) 		$376.35 1
013 410868380
RIGHT DOOR WINDOW EXTERIOR WATER DEFLUXION PROFILE 		$91.42 1
013 410868379
LEFT DOOR WINDOW EXTERIOR WATER DEFLUXION PROFILE 		$91.42 1
015 417868361
LEFT DOOR TRIANGLE (LEATHER INTERIOR - SUPPLY VIN) 		$497.32 1
015 417868362
RIGHT DOOR TRIANGLE (LEATHER INTERIOR - SUPPLY VIN) 		$497.32 1
015 417868361A
LEFT DOOR TRIANGLE (PERFORATED LEATHER INTERIOR - SUPPLY VIN) 		- 1 Enquire
017 400863119
BUNGS
IN STOCK 		$0.42 (94.3% off) 8
018 410868487
DOOR SWITCH BRACKET 		$168.04 2
019 410962107
DOOR LOCK/UNLOCK SWITCH
IN STOCK 		$304.03 2
020 4D0867299A
FASTENER
IN STOCK 		$0.33 (95.5% off) 6
021 N10406602
OVAL HEXAGON SOCKET HEAD BOLT 		$0.33 4
022 410837839A
INNER WATER SCRAPER RIGHT WINDOW GLASS 		$225.82 1
022 410837840A
INNER WATER SCRAPER LEFT WINDOW GLASS 		$225.82 1
023 400863119
BUNGS
IN STOCK 		$0.42 (94.3% off) 8
024 WHT000757
SCREW
IN STOCK 		$5.19 2
025 N10718801
HEX COLLARED BOLT 		$0.95 2
026 WHT002961
WASHER
IN STOCK 		$0.42 2
027 WHT003068
COUNTERSUNK BOLT
IN STOCK 		$1.43 (80.1% off) 2
028 N10406602
OVAL HEXAGON SOCKET HEAD BOLT 		$0.33 6
029 WHT001187
WASHER
IN STOCK 		$0.82 (88.7% off) 12
030 WHT003110
SCREW M4X10 		$5.66 12
031 WHT001187
WASHER
IN STOCK 		$0.82 (88.7% off) 8
032 WHT002959
CLAMPING NUT
IN STOCK 		$0.82 (88.7% off) 8
033 N90986803
HEXAGON SOCKET HEAD PANEL BOLT
IN STOCK 		$1.01 6
034 N91153701
POP RIVET
IN STOCK 		$0.61 (91.6% off) 16
035 WHT003096
WASHER 		$0.22 (97% off) 16
037 417837405
LH GUIDE 		$512.10 1
037 417837406
RH GUIDE 		$534.94 1
039 417837566
LH GASKET 		$572.59 1
039 417837565
RH GASKET 		$572.59 1
040 410947413
DOOR LAMP 		$86.44 (31.7% off) 2
042 417867108
RIGHT UPPER BODY ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$688.16 1
042 417867107
LEFT UPPER BODY ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$690.85 1
042 417867107A
LEFT UPPER BODY ASSEMBLY (PERFORATED LEATHER INTERIOR -SUPPLY VIN) 		- 1 Enquire
043 417857505A
LEFT COVERING (TELESTO - LP 650-4) 		- 1 Enquire
043 417857506
RIGHT COVERING 		$2,251.36 1
043 417857506A
RIGHT COVERING (TELESTO - LP 650-4) 		- 1 Enquire
043 417857505
LEFT COVERING 		$2,251.36 1
044 N10612001
WASHER
IN STOCK 		$0.48 8
045 WHT003364
WASHER 		$2.23 (68.3% off) 8
046 WHT001190
ROUND HD. SCREW
IN STOCK 		$0.53 8
047 N01020717
SCREW M5X12
IN STOCK 		$0.67 (90.8% off) 2
048 N10612001
WASHER
IN STOCK 		$0.48 2
049 WHT003364
WASHER 		$2.23 (68.3% off) 2
