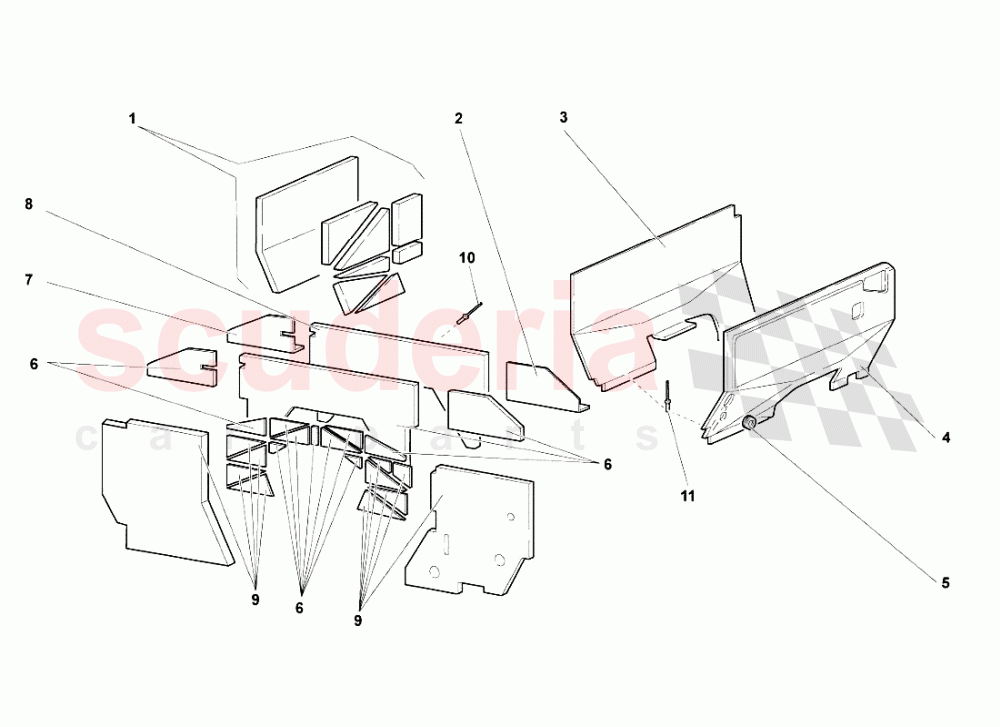

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	310147021	FUEL TANK ISOLATION SET	310147021 FUEL TANK ISOLATION SET	$385.74	1
002	417103763A	ENGINE COMPARTMENT LEFT FIREPROOF SHIELD	417103763A ENGINE COMPARTMENT LEFT FIREPROOF SHIELD	$96.63	1
003	417863932B	RIGHT HEAT SHIELD	417863932B RIGHT HEAT SHIELD	$2,358.88	1
004	417863931B	LEFT HEAT SHIELD	417863931B LEFT HEAT SHIELD	$2,358.88	1
005	400825837	RUBBER RING	400825837 RUBBER RING	$7.53	1
006	310148009	ENGINE SIDE FIREPROOF SET	310148009 ENGINE SIDE FIREPROOF SET	$1,043.00	1
007	417103764	ENGINE COMPARTMENT RIGHT FIREPROOF SHIELD	417103764 ENGINE COMPARTMENT RIGHT FIREPROOF SHIELD	$99.46	1
008	417864925A	ENGINE COMPARTMENT CENTER FIREPROOF SHIELD	417864925A ENGINE COMPARTMENT CENTER FIREPROOF SHIELD	$280.92	1
009	310148024	FLAME SHIELD INSULATION ENGINE SIDE, BOTTOM	310148024 FLAME SHIELD INSULATION ENGINE SIDE, BOTTOM	$651.87	1
010	410863059	RIVET 3,2X16	410863059 RIVET 3,2X16	$0.53 MSRP: ~~7.31~~ (92.7% off)	25
011	410806223	RIVET 3,2X16	410806223 RIVET 3,2X16	$2.57	8
011	410867883	RIVET 3,2X16	410867883 RIVET 3,2X16	$1.34 MSRP: ~~7.17~~ (81.3% off)	30
