Lamborghini Murcielago LP640 Roadster - Doors 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

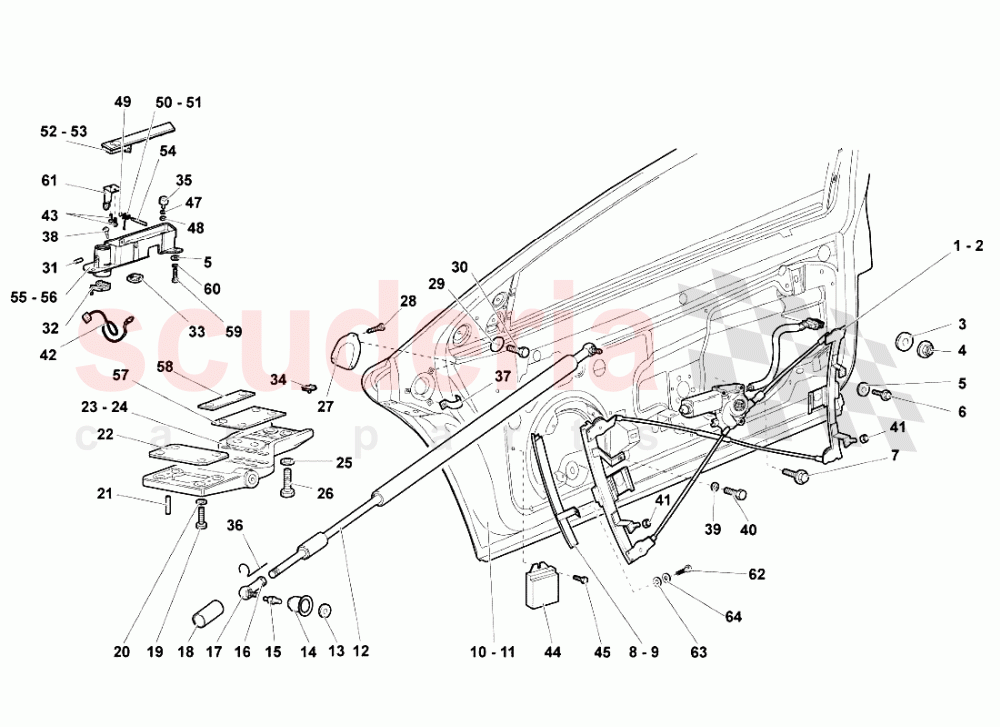

Doors 2 of Lamborghini Lamborghini Murcielago LP640 Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 417837397A
LH POWER WINDOW ASSEMBLY 		$1,525.54 1
002 417837398A
RIGHT DOOR POWER WINDOW ASSEMBLY 		$1,525.54 1
003 WHT002961
WASHER 		$0.42 3
004 N01508213
HEXAGON COLLAR NUT 		$0.21 3
005 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		$7.53 4
006 N01020717
SCREW M5X12 		$0.67 (90.8% off) 4
007 N91049601
OVAL HEAD PANEL SCREW (COMBI) 		$0.67 (90.8% off) 6
010 417831051
LEFT DOOR FRAME ASSEMBLY 		$11,102.13 1
011 417831052
RIGHT DOOR FRAME ASSEMBLY
(RHD model) 		$11,102.13 1
012 410837987
Door Strut 		$129.44 2
013 WHT000771
WASHER 		$1.19 1
014 410837749
RUBBER CAP 		$24.05 2
015 410837646A
JOURNAL 		$9.21 1
016 N01100845
HEXAGON NUT 		$1.89 1
017 410837262
JACK HEAD 		$9.00 1
018 410837801A
SHEATH 		$51.15 1
019 N10208905
SCREW M10X30 		$2.90 4
020 WHT002955
WASHER 		$1.11 (84.6% off) 4
021 N10738601
PIN 		$0.37 2
022 410837983A
1.0 MM SHIM 		$20.12 1
022 410837983B
1.2 MM SHIM 		$16.46 1
022 410837983C
1.5 MM SHIM 		$19.69 1
022 410837983
0.8 MM SHIM 		$18.16 1
023 410831401
LH HINGE 		$1,153.22 1
024 410831402
RH HINGE 		$1,153.22 1
025 N90179103
WASHER 18X8,4X2,5 		$1.55 4
026 N10208906
SCREW M10X30.0 		$4.10 4
027 410867251
ORNAMENT 		$133.73 1
028 N90455205
SCREW M4X10 		$0.74 (89.8% off) 3
031 WHT003370
SCREW 		$0.34 (95.4% off) 2
032 410837061
BOTTOM RING NUT, LH 		$131.18 1
033 410837063
LH UPPER RING NUT 		$186.15 1
034 410972672
SUPPORT 		$0.95 (86.9% off) 2
035 410837549
RUBBER SUPPORT 		$244.64 2
036 410837171
RING 		$0.25 (96.6% off) 2
037 410868630A
SUPPORT 		$58.09 2
038 410837529
RUBBER CAP 		$5.51 2
039 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		$7.53 2
040 N10718801
HEX COLLARED BOLT 		$0.95 2
041 N01508213
HEXAGON COLLAR NUT 		$0.21 4
042 417971121A
WIRING HARNESS 		$136.44 1
043 WHT003308
SCREW M4X8 (STANDARD) 		$0.89 (87.8% off) 4
044 417959875A
POWER WINDOW CONTROL UNIT 		$651.87 2
045 N90986803
HEXAGON SOCKET HEAD PANEL BOLT 		$1.01 6
047 N10612001
WASHER 		$0.48 2
048 WHT003112
NUT M5 		$0.70 2
049 410863191
RING 		$0.85 (88.3% off) 2
050 410837724
RH SPRING 		$60.96 1
051 410837723
LH SPRING 		$60.96 1
052 410837208AVS
RH HANDLE 		$1,146.52 1
053 410837207AVS
LH HANDLE 		$1,146.52 1
054 410837041
JOURNAL 		$18.63 2
055 410837163
LEFT HANDLE BODY 		$247.32 1
056 410837164
RIGHT HANDLE BODY 		$247.32 1
057 410837984
2.00 ADJUSTMENT SHIM 		$22.85 1
058 410837944A
1.00 ADJUSTMENT SHIM 		$19.26 4
059 WHT003111
SCREW M5X16 		$1.13 (84.3% off) 3
060 N91109201
WASHER 		$1.55 (73.5% off) 10
061 410837226A
LEVER 		$680.13 2
