Rh External Side Member

Lamborghini Murcielago LP640 Roadster

Find Your Part

Lamborghini Murcielago LP640 Roadster - Rh External Side Member

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

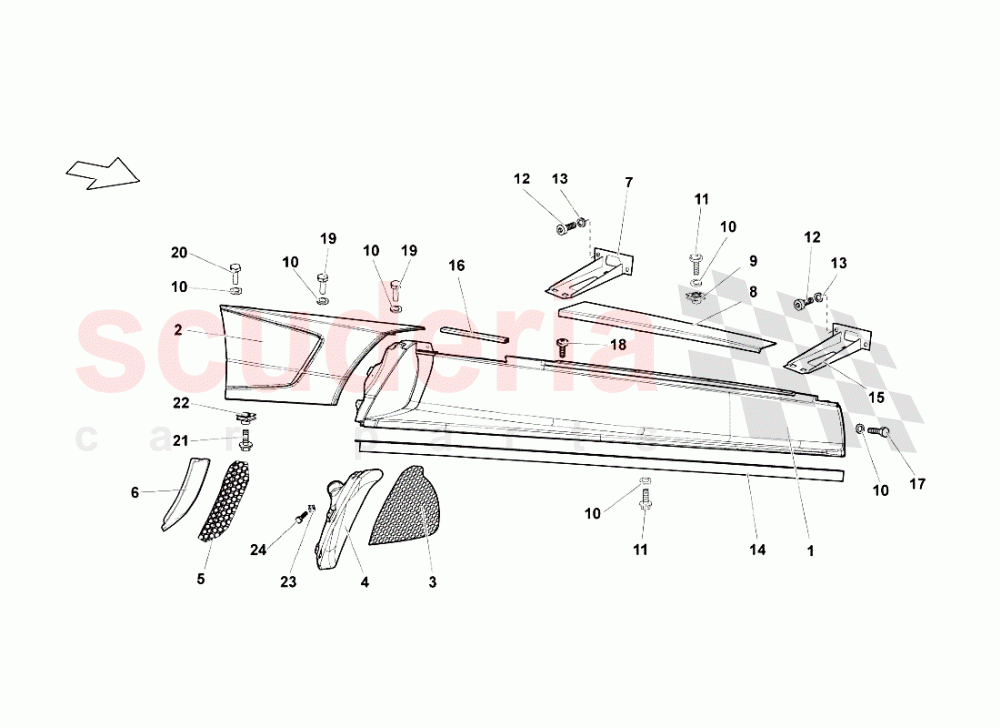

Rh External Side Member of Lamborghini Lamborghini Murcielago LP640 Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410853990A
FRONT RIGHT SIDE MEMBER ASSEMBLY 		- 1 Enquire
002 410853268
REAR RIGHT SIDE MEMBER 		- 1 Enquire
003 410864444A
NET 		- 1 Enquire
004 410903423
ALTERNATOR AIR CONVEYOR 		- 1 Enquire
005 410853668
NET 		- 1 Enquire
006 410853915A
COVER 		- 1 Enquire
007 410813549
BRACKET 		- 1 Enquire
008 410853492A
SCUFF PLATE (CARBON INTERIOR - SUPPLY VIN) 		- 1 Enquire
008 410853492B
SCUFF PLATE (CARBON INTERIOR LIGHT) 		- 1 Enquire
009 N91195701
SPEED NUT 		- 4 Enquire
010 WHT002961
WASHER 		- 18 Enquire
011 N10718801
HEX COLLARED BOLT 		- 18 Enquire
012 WHT003101
SCREW 		- 4 Enquire
013 N01152427
WASHER 		- 4 Enquire
014 410857470
AERODYNAMIC RIGHT STRAP IRON 		- 1 Enquire
015 410813550
Bracket 		- 1 Enquire
016 400853893
GASKET 		- 1 Enquire
017 WHT003069
SCREW M6X1X20 		- 1 Enquire
018 WHT000757
SCREW 		- 4 Enquire
019 N10718801
HEX COLLARED BOLT 		- 2 Enquire
020 N90319404
SCREW 		- 1 Enquire
021 N91136801
HEXAGON SOCKET HEAD PANEL BOLT 		- 3 Enquire
022 N90834301
CLIP NUT 		- 3 Enquire
023 N0154523
CLIP ST4.2X13.00X11.00 		- 5 Enquire
024 N90986803
HEXAGON SOCKET HEAD PANEL BOLT 		- 5 Enquire
