Engine Hood of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

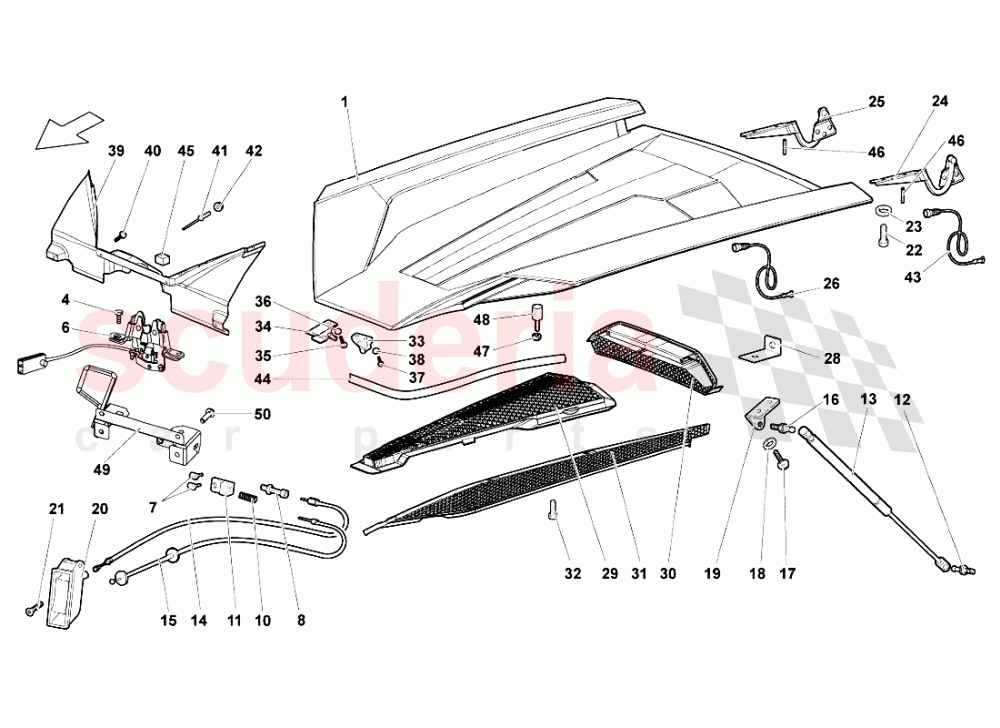

Lamborghini Murcielago LP640 Roadster - Engine Hood

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	417827022C	CARBON ENGINE HOOD ASSEMBLY	417827022C CARBON ENGINE HOOD ASSEMBLY	$38,118.17	1
004	N90319404	SCREW	N90319404 SCREW	$1.89	2
006	410827501B	LOCK	410827501B LOCK	$759.41	1
007	410827654	CLAMP	410827654 CLAMP	$197.59	2
008	410827421	ADJUSTER SCREW	410827421 ADJUSTER SCREW	$6.11	1
010	410827665	SPRING	410827665 SPRING	$25.82	1
011	410814333	DOUBLE CLAMP	410814333 DOUBLE CLAMP	$340.06	1
012	6X0827439A	JOURNAL	6X0827439A JOURNAL	$74.35	2
013	417827379	GAS FILLED STRUT	417827379 GAS FILLED STRUT	$91.95	2
014	417827531	ENGINE HOOD OPENING CABLE ASSEMBLY	417827531 ENGINE HOOD OPENING CABLE ASSEMBLY	$96.53	1
015	417827532	ENGINE HOOD EMERGENCY OPENING CABLE ASSEMBLY	417827532 ENGINE HOOD EMERGENCY OPENING CABLE ASSEMBLY	$88.86	1
016	895827439D	BALL STUD	895827439D BALL STUD	$9.00	2
017	N90319404	SCREW	N90319404 SCREW	$1.89	4
018	WHT003407	WASHER	WHT003407 WASHER	$0.53 MSRP: ~~7.31~~ (92.7% off)	4
019	410827601	LH BRACKET	410827601 LH BRACKET	$123.54	1
019	410827602	RH BRACKET	410827602 RH BRACKET	$144.49	1
020	400827185	HANDLE	400827185 HANDLE	$1,868.29	1
021	WHT003068	COUNTERSUNK BOLT	WHT003068 COUNTERSUNK BOLT	$1.43 MSRP: ~~7.17~~ (80.1% off)	1
022	N90319404	SCREW	N90319404 SCREW	$1.89	4
023	WHT003407	WASHER	WHT003407 WASHER	$0.53 MSRP: ~~7.31~~ (92.7% off)	4
024	417827152	ENGINE HOOD LEFT HINGE ASSEMBLY	417827152 ENGINE HOOD LEFT HINGE ASSEMBLY	$1,868.29	1
025	417827151	ENGINE HOOD RIGHT HINGE ASSEMBLY	417827151 ENGINE HOOD RIGHT HINGE ASSEMBLY	$444.90	1
026	417971170B	STOP LAMP HINGE HARNESS	417971170B STOP LAMP HINGE HARNESS	$21.50	1
028	410827454	BRACKET	410827454 BRACKET	$19.26	1
029	417827282	ENGINE HOOD REAR RIGHT CENTRAL GRID	417827282 ENGINE HOOD REAR RIGHT CENTRAL GRID	$237.88	1
029	417827281	ENGINE HOOD REAR LEFT CENTRAL GRID	417827281 ENGINE HOOD REAR LEFT CENTRAL GRID	$6,270.16	1
030	417827270	ENGINE HOOD THIRD BRAKE LIGHT GRID	417827270 ENGINE HOOD THIRD BRAKE LIGHT GRID	$217.75	1
031	417827968	ENGINE HOOD REAR RIGHT SIDE GRID	417827968 ENGINE HOOD REAR RIGHT SIDE GRID	$262.10	1
031	417827967	ENGINE HOOD REAR LEFT SIDE GRID	417827967 ENGINE HOOD REAR LEFT SIDE GRID	$262.10	1
032	WHT001190	ROUND HD. SCREW	WHT001190 ROUND HD. SCREW	$0.53	32
033	410823186	STRIKER PLATE ASSY	410823186 STRIKER PLATE ASSY	$231.85	1
034	410823183	REAR HOOD SAFETY CATCH BRACKET ASSEMBLY	410823183 REAR HOOD SAFETY CATCH BRACKET ASSEMBLY	$837.35	1
035	N90319404	SCREW	N90319404 SCREW	$1.89	1
036	WHT003407	WASHER	WHT003407 WASHER	$0.53 MSRP: ~~7.31~~ (92.7% off)	1
037	N90319404	SCREW	N90319404 SCREW	$1.89	2
038	WHT003407	WASHER	WHT003407 WASHER	$0.53 MSRP: ~~7.31~~ (92.7% off)	2
039	417827323B	LOCK COVER	417827323B LOCK COVER	$3,293.01	1
040	WHT000757	SCREW	WHT000757 SCREW	$5.19	2
041	N91094501	RIVET	N91094501 RIVET	$0.88 MSRP: ~~7.27~~ (87.9% off)	4
042	417863999	SNAP BUTTON	417863999 SNAP BUTTON	$1.19 MSRP: ~~7.20~~ (83.5% off)	4
043	417971059	STOP LAMP HINGE HARNESS	417971059 STOP LAMP HINGE HARNESS	$29.03	1
044	63705718	GASKET	63705718 GASKET	$44.78	1
045	417827785	RUBBER BUFFER	417827785 RUBBER BUFFER	$8.75	1
046	N10073601	PIN 3X14	N10073601 PIN 3X14	$0.53 MSRP: ~~7.31~~ (92.7% off)	4
047	N01111611	HEXAGON NUT	N01111611 HEXAGON NUT	$1.81 MSRP: ~~7.29~~ (75.2% off)	2
048	417807333	SUPPORT	417807333 SUPPORT	$34.96	2
049	417805801	SUPPORT	417805801 SUPPORT	$88.18	1
050	N90807405	HEX SOCKET OVAL HEAD COLLARED	N90807405 HEX SOCKET OVAL HEAD COLLARED	$0.64	6
