Bumpers (Valid for Canada - January 1995) of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

Lamborghini Diablo SE30 (1993-1995) - Bumpers (Valid for Canada - January 1995)

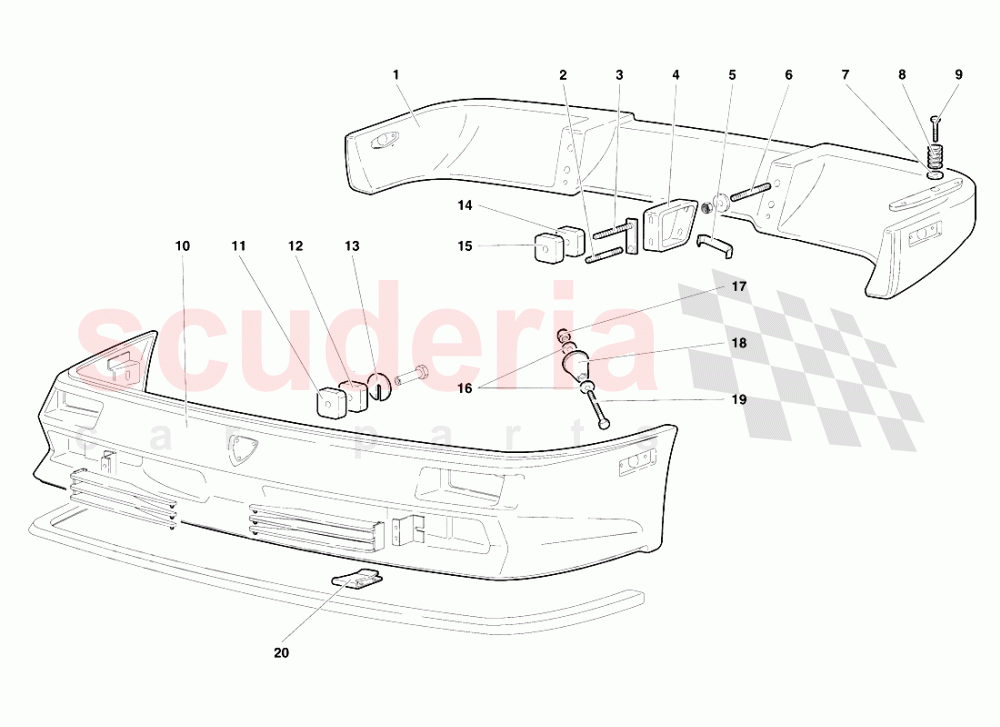

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	600946306	REAR BUMPER BAR	600946306 REAR BUMPER BAR (Valid for CANADA - January 1995) PARAURTI POSTERIORE	-	1	Enquire
002	8300912	STUD	8300912 STUD (Valid for CANADA - January 1995) PRIGIONIERO	-	2	Enquire
003	9463215	PLATE	9463215 PLATE (Valid for CANADA - January 1995) PIASTRA	-	2	Enquire
004	9463213	SUPPORT - (Valid for CANADA version - April 1994) SUPPORTO	9463213 SUPPORT - (Valid for CANADA version - April 1994) SUPPORTO (Valid for CANADA - January 1995) O	-	2	Enquire
005	9463216	CLIP	9463216 CLIP (Valid for CANADA - January 1995) MOLLETTA	-	2	Enquire
006	8300840	STUD	8300840 STUD (Valid for CANADA - January 1995) PRIGIONIERO	-	2	Enquire
007	9463227	SPACER	9463227 SPACER (Valid for CANADA - January 1995) DISTANZIALE	-	2	Enquire
008	9463217	SPRING	9463217 SPRING (Valid for CANADA - January 1995) MOLLA	-	2	Enquire
009	8100842	SCREW	8100842 SCREW (Valid for CANADA - January 1995) VITE	-	2	Enquire
010	600946305	BUMPER BAR	600946305 BUMPER BAR (Valid for CANADA - January 1995) PARAURTI ANTERIORE	-	1	Enquire
011	9463146	RUBBER PAD	9463146 RUBBER PAD (Valid for CANADA - January 1995) TAMPONE GOMMA	-	4	Enquire
012	9463145	RUBBER PAD	9463145 RUBBER PAD (Valid for CANADA - January 1995) TAMPONE GOMMA	-	4	Enquire
013	7063145	SHIM	7063145 SHIM use : 410807567	-	1	Enquire
014	9463146	RUBBER PAD	9463146 RUBBER PAD (Valid for CANADA - January 1995) TAMPONE GOMMA	-	4	Enquire
015	9463145	RUBBER PAD	9463145 RUBBER PAD (Valid for CANADA - January 1995) TAMPONE GOMMA	-	4	Enquire
016	8400801	WASHER	8400801 WASHER (Valid for CANADA - January 1995) RONDELLA	-	4	Enquire
017	8200804	NUT M8	8200804 NUT M8 (Valid for CANADA - January 1995) DADO	-	2	Enquire
018	9463147	RUBBER PAD	9463147 RUBBER PAD (Valid for CANADA - January 1995) TAMPONE GOMMA	-	2	Enquire
019	8100861	SCREW M8X90	8100861 SCREW M8X90 (Valid for CANADA - January 1995) VITE	-	2	Enquire
020	410807794	SPRING	410807794 SPRING (Valid for CANADA - January 1995) MOLLETTA	-	11	Enquire
