Front Hood of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

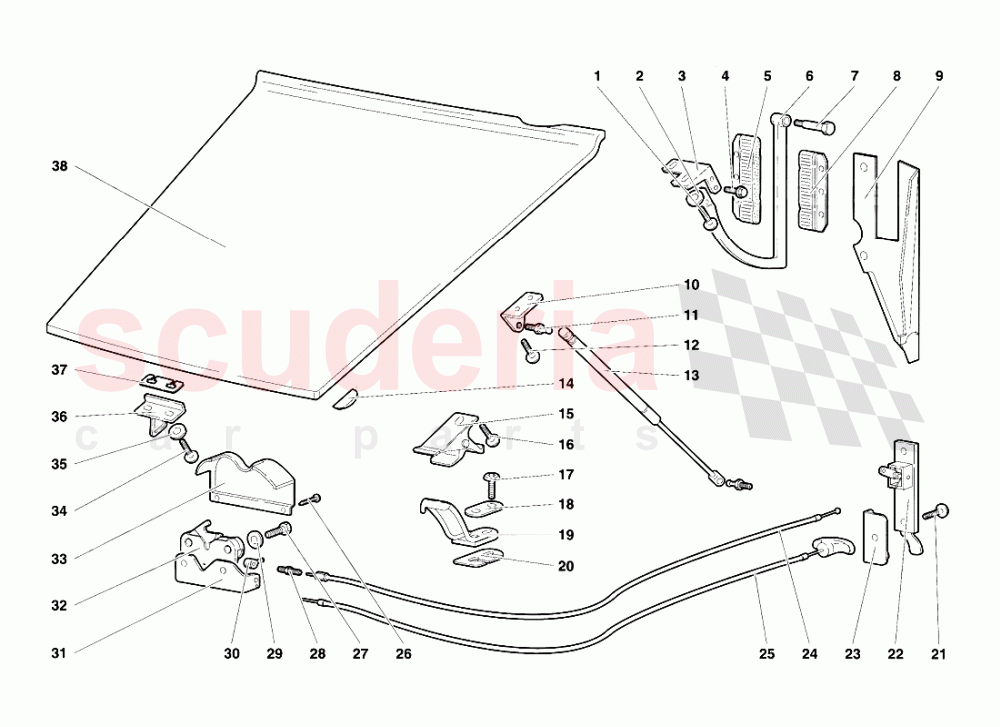

Lamborghini Diablo SE30 (1993-1995) - Front Hood

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$21.42	4
002	8400627	WASHER	8400627 WASHER RONDELLA	$21.97 MSRP: ~~22.95~~ (4.3% off)	4
003	9459321	RIGHT SUPPORT	9459321 RIGHT SUPPORT SUPPORTO DX	$50.57 MSRP: ~~53.00~~ (4.6% off)	1
003	9459322	LEFT SUPPORT	9459322 LEFT SUPPORT SUPPORTO SX	$50.57 MSRP: ~~53.00~~ (4.6% off)	1
004	8700674	SCREW	8700674 SCREW VITE	-	4	Enquire
005	9459310	BRUSH	9459310 BRUSH SPAZZOLA	$75.68	2
006	9459320	LEFT HINGE	9459320 LEFT HINGE CERNIERASX	-	1	Enquire
006	9459325	RIGHT HINGE	9459325 RIGHT HINGE CERNIERADX	$271.41	1
007	9459323	PIN	9459323 PIN PERNO	$54.44	2
008	9459311	BRUSH	9459311 BRUSH SPAZZOLA	$75.68	2
009	9459316	RIGHT PLATE	9459316 RIGHT PLATE PIASTRA DX	$189.83	1
009	9459317	LEFT PLATE	9459317 LEFT PLATE PIASTRA SX	$46.46	1
010	9459309	BRACKET	9459309 BRACKET STAFFA	$38.21 MSRP: ~~40.00~~ (4.5% off)	2
011	9459305	BALL PIN IN STOCK	9459305 BALL PIN PERNO IN STOCK	$2.84	4
012	8700665	SCREW	8700665 SCREW VITE	$50.57 MSRP: ~~53.00~~ (4.6% off)	4
013	79004387	SHOCK ABSORBER	79004387 SHOCK ABSORBER MARTI NETTO	$139.99	2
014	9459106	LEFT PAD	9459106 LEFT PAD TASSELLO SX	$72.44	1
014	9459105	RIGHT PAD	9459105 RIGHT PAD TASSELLO DX	$72.44	1
015	9459208	HOOK	9459208 HOOK GANCIO Dl SICUREZZA	$115.04	1
016	8700665	SCREW	8700665 SCREW VITE	$50.57 MSRP: ~~53.00~~ (4.6% off)	1
017	8700665	SCREW	8700665 SCREW VITE	$50.57 MSRP: ~~53.00~~ (4.6% off)	2
018	9459226	PLATE	9459226 PLATE PIASTRINA	$30.21	1
019	9459224	LOCK STRIKER	9459224 LOCK STRIKER RISCONTRO	$170.80	1
020	9459225	SHIM	9459225 SHIM SPESSORE Dl REGISTRO	$15.88 MSRP: ~~16.50~~ (3.8% off)	1
021	8700544	SCREW	8700544 SCREW VITE	$1.68	2
022	9459200	HANDLE	9459200 HANDLE MANIGLIA APERTURA COFANO	$518.63	1
023	9459223	PLATE	9459223 PLATE PIASTRINA	$14.16 MSRP: ~~14.75~~ (4% off)	1
024	9459001	CABLE	9459001 CABLE CAVO APERTURA COFANO	$22.75	1
025	9459003	CABLE	9459003 CABLE CAVO EMERGENZA	-	1	Enquire
026	WHT003065	SCREW (2,9X16) IN STOCK	WHT003065 SCREW (2,9X16) VITE IN STOCK	$1.32 MSRP: ~~7.18~~ (81.6% off)	2
027	8100623	SCREW	8100623 SCREW VITE	$0.36	2
028	9460213	ADJ/SCREW	9460213 ADJ/SCREW VITE REGISTRO	-	1	Enquire
029	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	2
030	9459217	CLAMP	9459217 CLAMP MORSETTO	-	1	Enquire
031	9459213	SPACER	9459213 SPACER DISTANZIALE	$22.27	1
032	9459216	LOCK	9459216 LOCK SERRATURA COFANO ANT.	$191.07	1
033	9459212	COVERING	9459212 COVERING RIVESTIMENTO SERRATURA	$176.82	1
034	8700665	SCREW	8700665 SCREW VITE	$50.57 MSRP: ~~53.00~~ (4.6% off)	2
035	8400627	WASHER	8400627 WASHER RONDELLA	$21.97 MSRP: ~~22.95~~ (4.3% off)	2
036	9459227	LOCK STRIKER	9459227 LOCK STRIKER RISCONTRO	$127.19	1
037	9459228	SHIM	9459228 SHIM SPESSORE Dl REGISTRO	$17.43	1
038	600945901	FRONT BONNET	600945901 FRONT BONNET COFANO ANTERIORE	$6,544.65	1
