Doors 2 of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

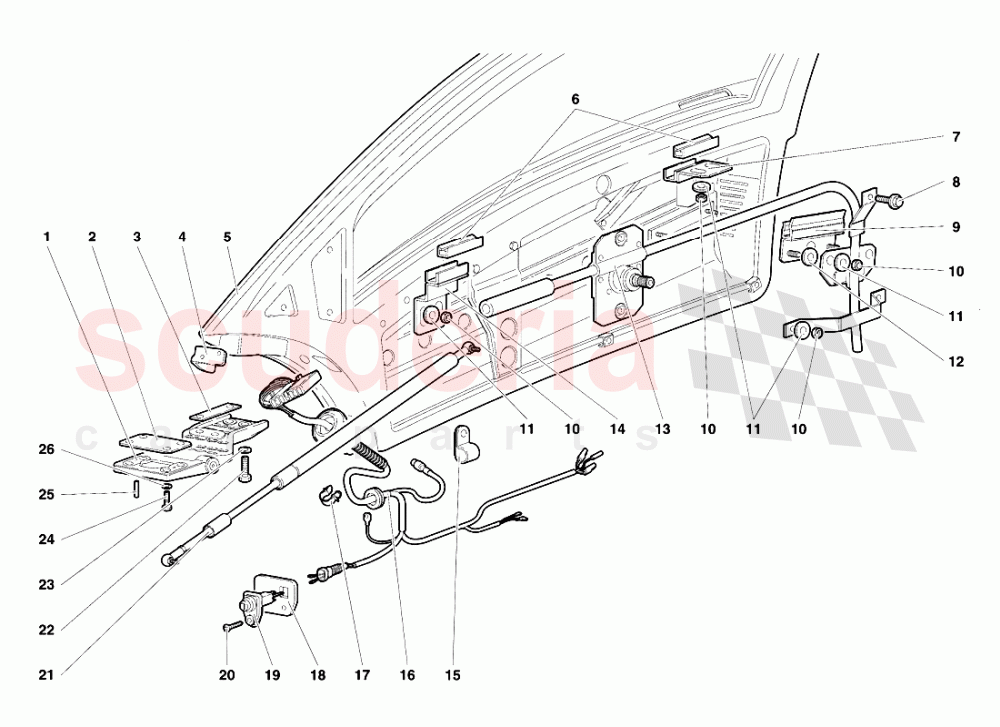

Lamborghini Diablo SE30 (1993-1995) - Doors 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	410831402	RH HINGE	410831402 RH HINGE CERNIERADX	-	1	Enquire
001	9421030	LH HINGE	9421030 LH HINGE CERNIERASX	-	1	Enquire
002	4132054	SHIM	4132054 SHIM SPESSORE Dl REGISTRO 1,5 MM	-	1	Enquire
002	4132052	SHIM	4132052 SHIM SPESSORE Dl REGISTRO 1 MM	-	1	Enquire
002	4132051	SHIM	4132051 SHIM SPESSORE Dl REGISTRO 0,8 MM	-	1	Enquire
002	4132053	SHIM	4132053 SHIM SPESSORE Dl REGISTRO 1,2 MM	-	1	Enquire
003	9421380	SHIM	9421380 SHIM SPESSORE Dl REGISTRO 1 MM	-	1	Enquire
003	9421381	SHIM	9421381 SHIM SPESSORE Dl REGISTRO 1,5 MM	-	1	Enquire
004	9421619	LEFT SUPPORT	9421619 LEFT SUPPORT SUPPORTO SX	-	1	Enquire
004	9421618	RIGHT SUPPORT	9421618 RIGHT SUPPORT SUPPORTO DX	-	1	Enquire
005	9421033	RIGHT DOOR	9421033 RIGHT DOOR PORTA DX	-	1	Enquire
005	9421034	LEFT DOOR	9421034 LEFT DOOR PORTA SX	-	1	Enquire
006	9421732	GASKET	9421732 GASKET GUARNIZIONE	-	4	Enquire
007	9421419	BRACKET	9421419 BRACKET STAFFA	-	2	Enquire
008	N90319404	SCREW	N90319404 SCREW VITE	-	6	Enquire
009	9421421	MOB. GLA. FIXING PLIE.	9421421 MOB. GLA. FIXING PLIE. PINZA FISS.VETRO MOBILE	-	2	Enquire
010	N0211963	NUT	N0211963 NUT DADO	-	16	Enquire
011	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	-	16	Enquire
012	9444151	WASHER	9444151 WASHER DISTANZIALE	-	1	Enquire
013	9421614	R. WINDOW REGUL.	9421614 R. WINDOW REGUL. ALZAVETRO MANUALE DX	-	1	Enquire
013	9421615	L. WINDOW REGUL.	9421615 L. WINDOW REGUL. ALZAVETRO MANUALE SX	-	1	Enquire
014	9421418	BRACKET	9421418 BRACKET STAFFA	-	2	Enquire
015	8830907	STRAP	8830907 STRAP FASCETTA	-	8	Enquire
016	6135125	DOORS WIRING	6135125 DOORS WIRING CABLAGGIO PORTE	-	2	Enquire
017	8830411	STRAP	8830411 STRAP MOLLETTA	-	2	Enquire
018	5934447	PLATE	5934447 PLATE SPESSORE PULSANTE PORTA	-	2	Enquire
019	5934450	SWITCH	5934450 SWITCH PULSANTE PORTA	-	2	Enquire
020	WHT003304	SCREW	WHT003304 SCREW VITE	-	2	Enquire
021	9421047	ADJUST. GAS SPRING	9421047 ADJUST. GAS SPRING MOLLA A GAS REGOLABILE	-	2	Enquire
022	8101008	SCREW	8101008 SCREW VITE	-	8	Enquire
023	8411015	WASHER	8411015 WASHER RONDELLA	-	8	Enquire
024	8100821	SCREW	8100821 SCREW VITE	-	8	Enquire
025	8900401	PIN	8900401 PIN SA ELASTICA	-	4	Enquire
026	8400801	WASHER	8400801 WASHER RONDELLA	-	8	Enquire
