Rear Body Elements of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

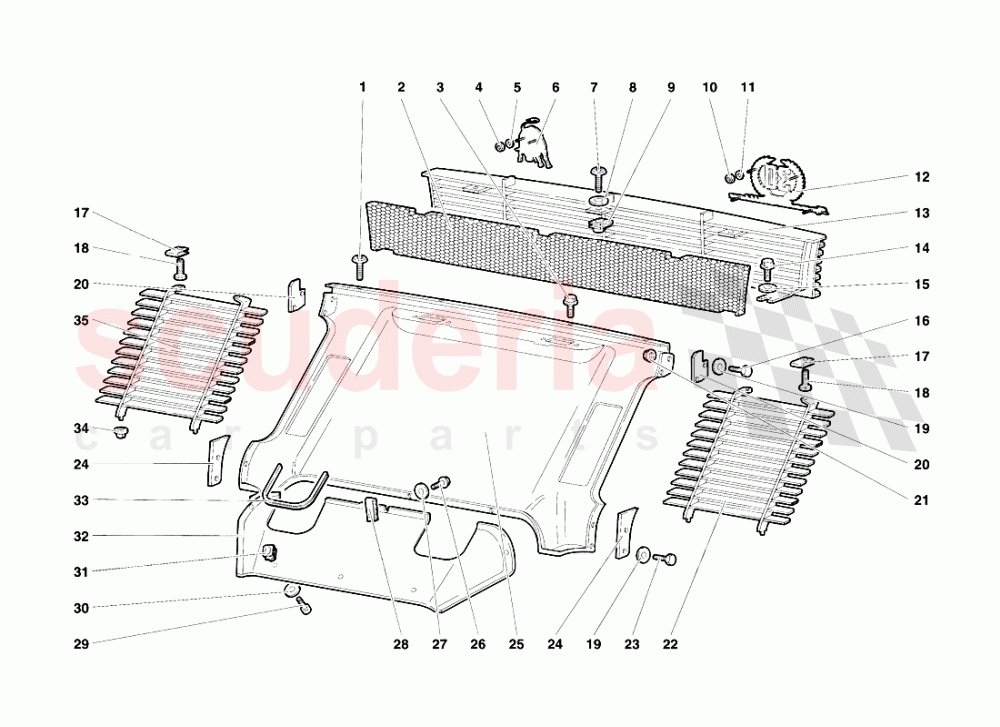

Lamborghini Diablo SE30 (1993-1995) - Rear Body Elements

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$21.42	2
002	9430159	NET	9430159 NET RETE	$247.54	1
003	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	$0.95	2
004	8200302	NUT IN STOCK	8200302 NUT DADO IN STOCK	$0.16	6
005	8400303	WASHER IN STOCK	8400303 WASHER RONDELLA IN STOCK	$0.04	6
006	9466130	BULL PLATE	9466130 BULL PLATE TARGHETTATORO	$262.00	1
007	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$21.42	3
008	8400601	WASHER	8400601 WASHER RONDELLA	$0.04	3
009	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT FERMAGLIO IN STOCK	$0.94	3
010	8200302	NUT IN STOCK	8200302 NUT DADO IN STOCK	$0.16	6
011	8400303	WASHER IN STOCK	8400303 WASHER RONDELLA IN STOCK	$0.04	6
013	9430154	GRILLE	9430154 GRILLE GRIGLIA	$1,224.58	1
014	8700449	SCREW IN STOCK	8700449 SCREW VITE IN STOCK	$2.99 MSRP: ~~7.37~~ (59.4% off)	2
015	N91109201	WASHER IN STOCK	N91109201 WASHER RONDELLA IN STOCK	$1.55 MSRP: ~~5.85~~ (73.5% off)	2
016	8100621	SCREW IN STOCK	8100621 SCREW VITE IN STOCK	$0.12 MSRP: ~~7.37~~ (98.4% off)	8
017	WHT003383	CLIP	WHT003383 CLIP MOLLETTA	$15.47	4
018	8700437	SCREW	8700437 SCREW VITE	-	4	Enquire
019	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	8
020	9410205	SPACER	9410205 SPACER DISTANZIALE	$12.45	2
021	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT DADO IN STOCK	$0.21	4
022	9430104	LEFT GRILLE	9430104 LEFT GRILLE GRIGLIA SX	$3,712.77	1
024	9410206	SPACER	9410206 SPACER DISTANZIALE	$50.08	2
025	9410200	REAR PANEL	9410200 REAR PANEL ELEMENTO SCOCCA POSTERIORE	$1,929.29 MSRP: ~~1,950.00~~ (1.1% off)	1
026	8700449	SCREW IN STOCK	8700449 SCREW VITE IN STOCK	$2.99 MSRP: ~~7.37~~ (59.4% off)	3
027	N91109201	WASHER IN STOCK	N91109201 WASHER RONDELLA IN STOCK	$1.55 MSRP: ~~5.85~~ (73.5% off)	3
028	N90834301	CLIP NUT IN STOCK	N90834301 CLIP NUT IN STOCK	$1.16	3
029	8700614	SCREW	8700614 SCREW VITE	$0.27	3
030	8400624	WASHER	8400624 WASHER RONDELLA	$4.78	3
031	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT FERMAGLIO IN STOCK	$0.94	3
032	9430155	SHIELD	9430155 SHIELD PARATIA CHIUS.TERM.SCAR.	$2,627.19	1
033	9430156	CHANNEL	9430156 CHANNEL PROFILATO	$288.46	2
034	66002463	BUSHING	66002463 BUSHING BOCCOLA	$3.43 MSRP: ~~3.50~~ (2% off)	4
035	9430103	RIGHT GRILLE	9430103 RIGHT GRILLE GRIGLIA DX	$3,568.03	1
